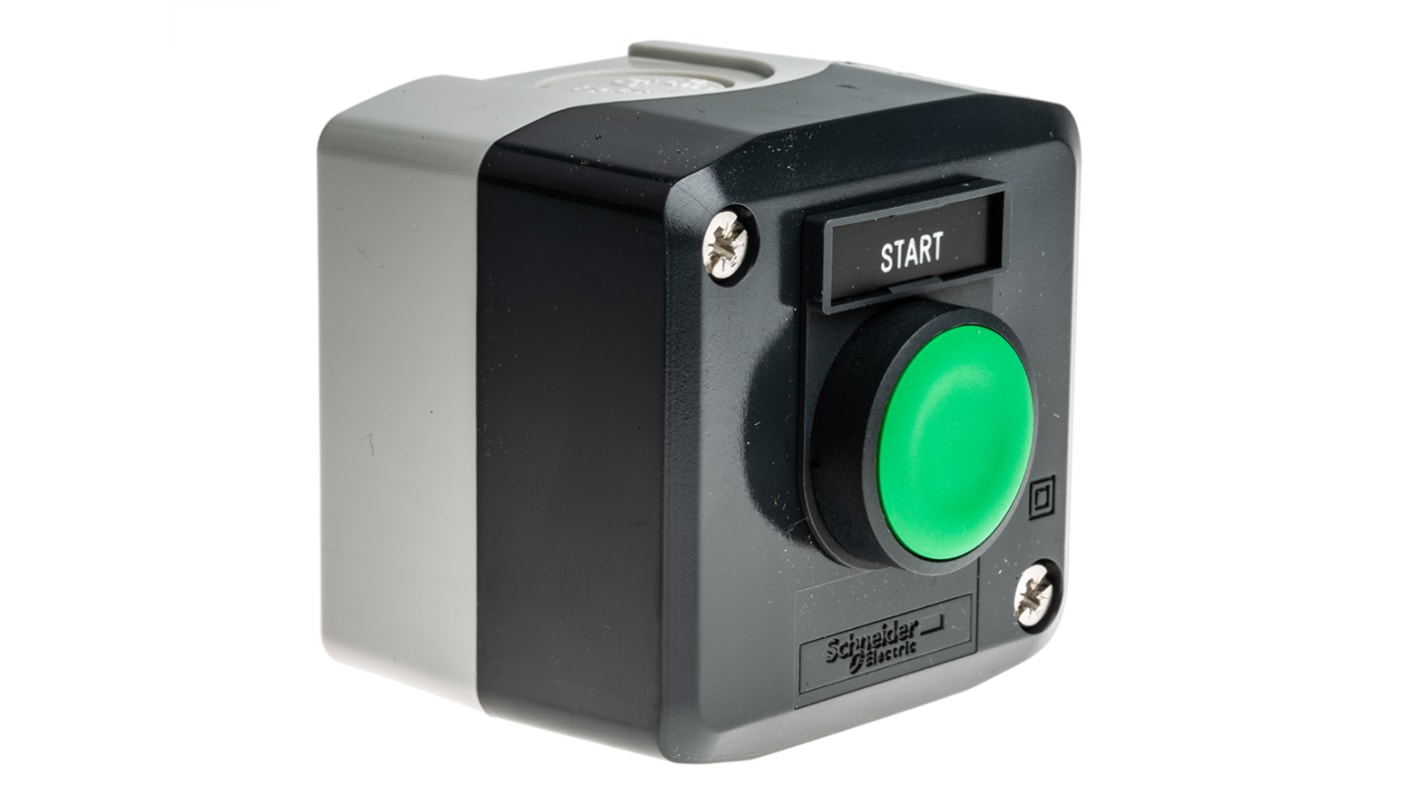

Schneider Electric Spring Return Enclosed Push Button - SPST, Polycarbonate, Green, START, IP66, IP67, IP69K

RS Stock No.:: 342-2548
Mfr. Part No.:: XALD101H29
Manufacturer:: Schneider Electric

Schneider Electric Spring Return Enclosed Push Button - SPST, Polycarbonate, Green, START, IP66, IP67, IP69K

Price Each

MYR226.97

104 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR226.97

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 342-2548
Mfr. Part No.:: XALD101H29
Manufacturer:: Schneider Electric

Schneider Electric Enclosed Push Button - Complete Control Station

Forming part of Schneider Electrics Harmony XALD Series, this complete control station is the ideal solution for installations within the chemical, marine, energy and automotive industry. Although they are found within a multitude of applications, a simple example is within a car wash. The majority of them will be found within an industrial environment because of how the control station provides a high level of protection for the push button inside.

Features & Benefits

• Compatible with other items in the Harmony range such as pushbuttons, mushroom head operators, legend plates and LEDs
• 1 flush push button
• Comprised of a polycarbonate material
• Cable entry - 1 knock-out for cable entry, clamping capacity: <= 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 12 mm
• Ambient air temperature for storage and operation -40...70 °C
• Mechanical durability - 10000000 cycles

What is the Harmony Series?

The Harmony Series is a range of push-button enclosures and pendant control stations that are used for direct control or auxiliary of processes and industrial machinery. This series is predominantly ideal for industrial, infrastructure and building applications and installations due to its wide choice of composition cut-outs. The Harmony Series range is all compatible to work with each other, interchangeably.

Schneider Electric Harmony XALD Series Enclosed Push Button, SPST, IP66/ IP67/ IP69K - XALD101H29

This enclosed push button from Schneider Electric features a robust construction with an IP66 rating, making it suitable for various applications. The push button is designed to withstand high voltage environments and has a spring return mechanism for smooth operation. With a green start button made of durable polycarbonate material, this push button offers reliable performance in demanding conditions.

Features & Benefits

• Durable construction with polycarbonate material
• IP66 rating for waterproof performance
• Spring return mechanism for smooth operation
• Green start button for easy identification

Applications

• Start function control station applications
• For use with XB5 Ø 22 mm control and signalling units

Can it withstand high-pressure washer cleaning?

Yes, the push button is resistant to high-pressure washer cleaning at 7000000 Pa at 55°C.

Will it operate in extreme temperatures?

It can operate in temperatures ranging from -25°C to +70°C.

Is the push button suitable for high voltage applications?

Yes, the push button has a maximum AC voltage of 600V and a maximum DC voltage of 600V.

Attribute	Value
Series	Harmony XALD
Push Button Marking	START
Push Button Colour	Green
Push Button Material	Polycarbonate
Enclosure Colour	Grey
Contact Configuration	SPST
Enclosure Material	Polycarbonate
IP Rating	IP66, IP67, IP69K
Cutout Diameter	22mm
Push Button Actuation	Spring Return
Length	68mm
Width	68mm
Better World Verification	Green Premium
Depth	62mm
Better World Product	Yes
Maximum DC Voltage	600V
Maximum AC Voltage	600V
Terminal Type	Screw
Maximum Operating Temperature	+70°C
Maximum Current	10A
Minimum Operating Temperature	-25°C
