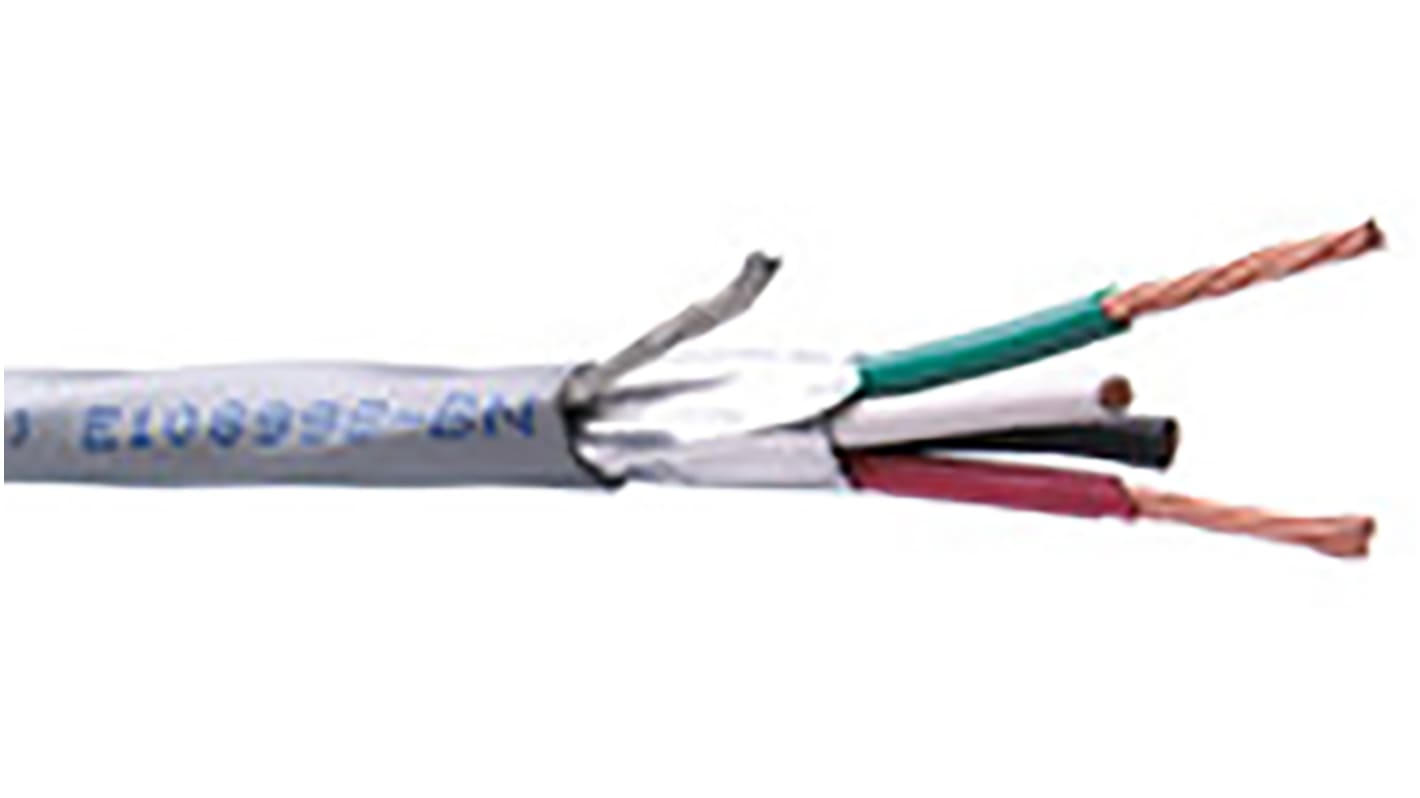

Belden 4302FE Control Cable, 4 Cores, 0.82 mm², Screened, 100m, Grey LSZH Sheath, 18 AWG
- RS Stock No.:
- 510-2224
- Mfr. Part No.:
- 4302FE.00100
- Manufacturer:
- Belden
Subtotal (1 reel of 100 metres)**
MYR1,410.39
14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Reel(s) | Per Reel | Per Metre** |
---|---|---|
1 + | MYR1,410.39 | MYR14.104 |
**price indicative
- RS Stock No.:
- 510-2224
- Mfr. Part No.:
- 4302FE.00100
- Manufacturer:
- Belden
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | 4302FE | |
Number of Cores | 4 | |
Cross Sectional Area | 0.82 mm² | |
American Wire Gauge | 18 AWG | |
Conductor Material | Copper | |
Sheath Material | LSZH | |
Sheath Colour | Grey | |
Screen Type | Aluminium/PET Foil | |
Screened/Unscreened | Screened | |
Outer Diameter | 4.9mm | |
Length | 100m | |
Voltage Rating | 300 V | |
Current Rating | 3.5 A | |
CPR Certification | Eca | |
Standards Met | Euroclass Eca | |
Maximum Operating Temperature | +70°C | |
Drain Wire | Yes | |
Cable Shape | Multicore | |
Conductor Resistance | 21.3 Ω/km | |
Core Strands | 7/26 AWG | |
Insulation Material | PE | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Belden | ||
Series 4302FE | ||
Number of Cores 4 | ||
Cross Sectional Area 0.82 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material LSZH | ||
Sheath Colour Grey | ||
Screen Type Aluminium/PET Foil | ||
Screened/Unscreened Screened | ||
Outer Diameter 4.9mm | ||
Length 100m | ||
Voltage Rating 300 V | ||
Current Rating 3.5 A | ||
CPR Certification Eca | ||
Standards Met Euroclass Eca | ||
Maximum Operating Temperature +70°C | ||
Drain Wire Yes | ||
Cable Shape Multicore | ||
Conductor Resistance 21.3 Ω/km | ||
Core Strands 7/26 AWG | ||
Insulation Material PE | ||
Minimum Operating Temperature -20°C | ||
