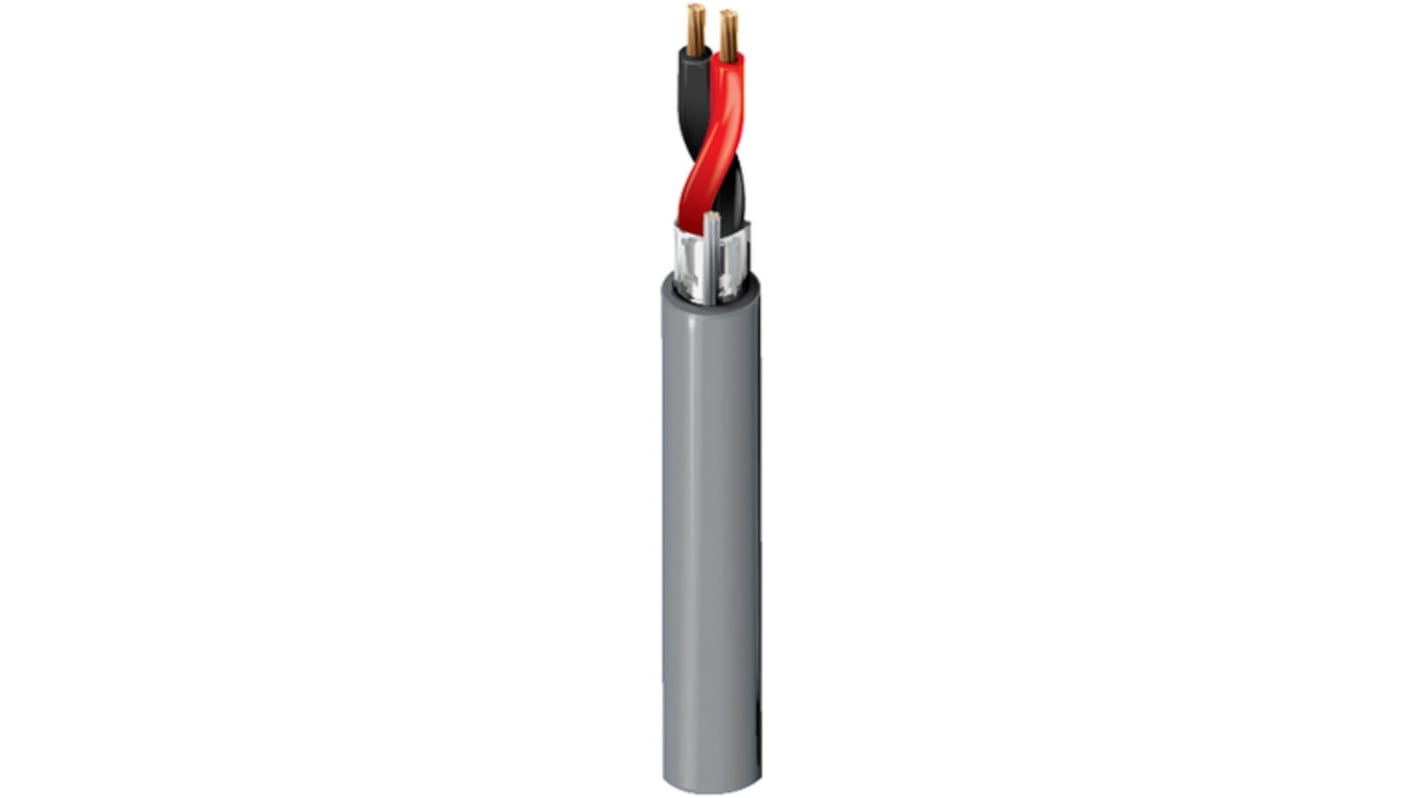

Belden 5300FE Control Cable, 2 Cores, 0.82 mm², Screened, 152m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 510-2454
- Mfr. Part No.:
- 5300FE.00152
- Manufacturer:
- Belden
Subtotal (1 reel of 152 metres)**
MYR1,203.72
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 + | MYR1,203.72 | MYR7.919 |
**price indicative
- RS Stock No.:
- 510-2454
- Mfr. Part No.:
- 5300FE.00152
- Manufacturer:
- Belden
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 5300FE | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.82 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screen Type | Aluminium/PET Foil | |
| Screened/Unscreened | Screened | |
| Minimum Bend Radius | 41 mm | |
| Outer Diameter | 4.11mm | |
| Length | 152m | |
| Voltage Rating | 300 V | |
| Current Rating | 5 A | |
| CPR Certification | Eca | |
| Standards Met | Euroclass Eca | |
| Maximum Operating Temperature | +75°C | |
| Drain Wire | Yes | |
| Minimum Operating Temperature | -20°C | |
| Cable Shape | Multicore | |
| Conductor Resistance | 21.32546 Ω/km | |
| Insulation Material | PP | |
| Core Strands | 7/26 AWG | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 5300FE | ||
Number of Cores 2 | ||
Cross Sectional Area 0.82 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Aluminium/PET Foil | ||
Screened/Unscreened Screened | ||
Minimum Bend Radius 41 mm | ||
Outer Diameter 4.11mm | ||
Length 152m | ||
Voltage Rating 300 V | ||
Current Rating 5 A | ||
CPR Certification Eca | ||
Standards Met Euroclass Eca | ||
Maximum Operating Temperature +75°C | ||
Drain Wire Yes | ||
Minimum Operating Temperature -20°C | ||
Cable Shape Multicore | ||
Conductor Resistance 21.32546 Ω/km | ||
Insulation Material PP | ||
Core Strands 7/26 AWG | ||
