Select all	Attribute	Value
	Brand	Siemens
	Coil Voltage	230 V ac
	Number of Poles	4
	Contact Voltage Rating	690 V ac
	Contact Current Rating	10 A
	Range	SIRIUS
	Series	3RH2
	Function	Safety
	Normal State Configuration	4NO
	Number Of Auxiliary Contacts	4
	Auxiliary Contact Configuration	4NO
	Terminal Type	Screw
	Width	45mm
	Length	57.5mm
	Depth	73mm
	Maximum Operating Temperature	+60°C
	Control Voltage	230 V ac
	Minimum Operating Temperature	-25°C
	Mounting Style	Screw & Snap-On

	Select all
	Brand Siemens
	Coil Voltage 230 V ac
	Number of Poles 4
	Contact Voltage Rating 690 V ac
	Contact Current Rating 10 A
	Range SIRIUS
	Series 3RH2
	Function Safety
	Normal State Configuration 4NO
	Number Of Auxiliary Contacts 4
	Auxiliary Contact Configuration 4NO
	Terminal Type Screw
	Width 45mm
	Length 57.5mm
	Depth 73mm
	Maximum Operating Temperature +60°C
	Control Voltage 230 V ac
	Minimum Operating Temperature -25°C
	Mounting Style Screw & Snap-On

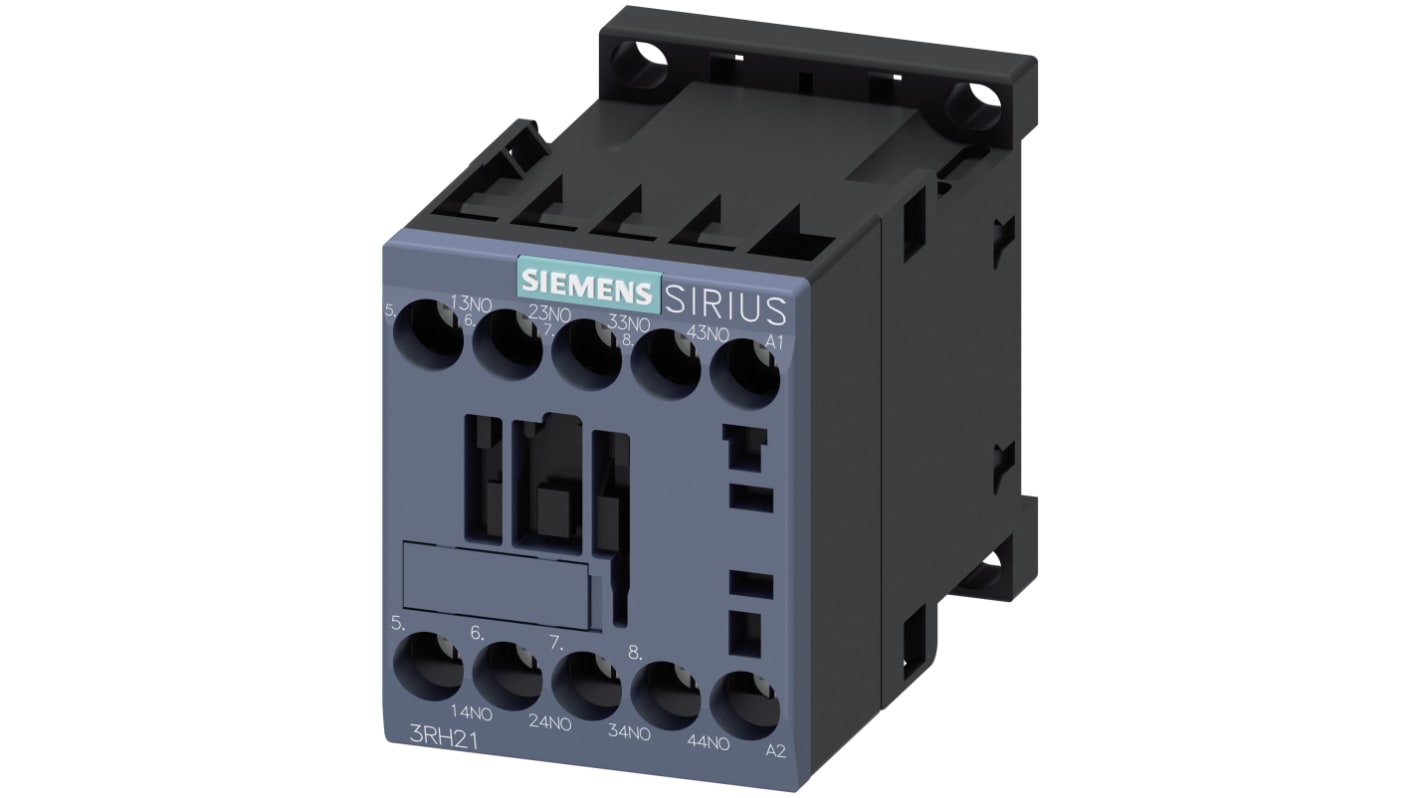

Siemens SIRIUS 3RH2 Contactor Relay, 230 V ac Coil, 4-Pole, 10 A, 4NO, 690 V ac

FREE delivery for orders over MYR500.00

Siemens 3RH2 Series Contactor Relay, 690V AC Contact Voltage Rating, 4NO Normal State Configuration - 3RH2140-1AP00

Features & Benefits

Applications

What is the maximum temperature range for safe operation?

Can it be mounted in different orientations?

How does the number of poles affect its application?
