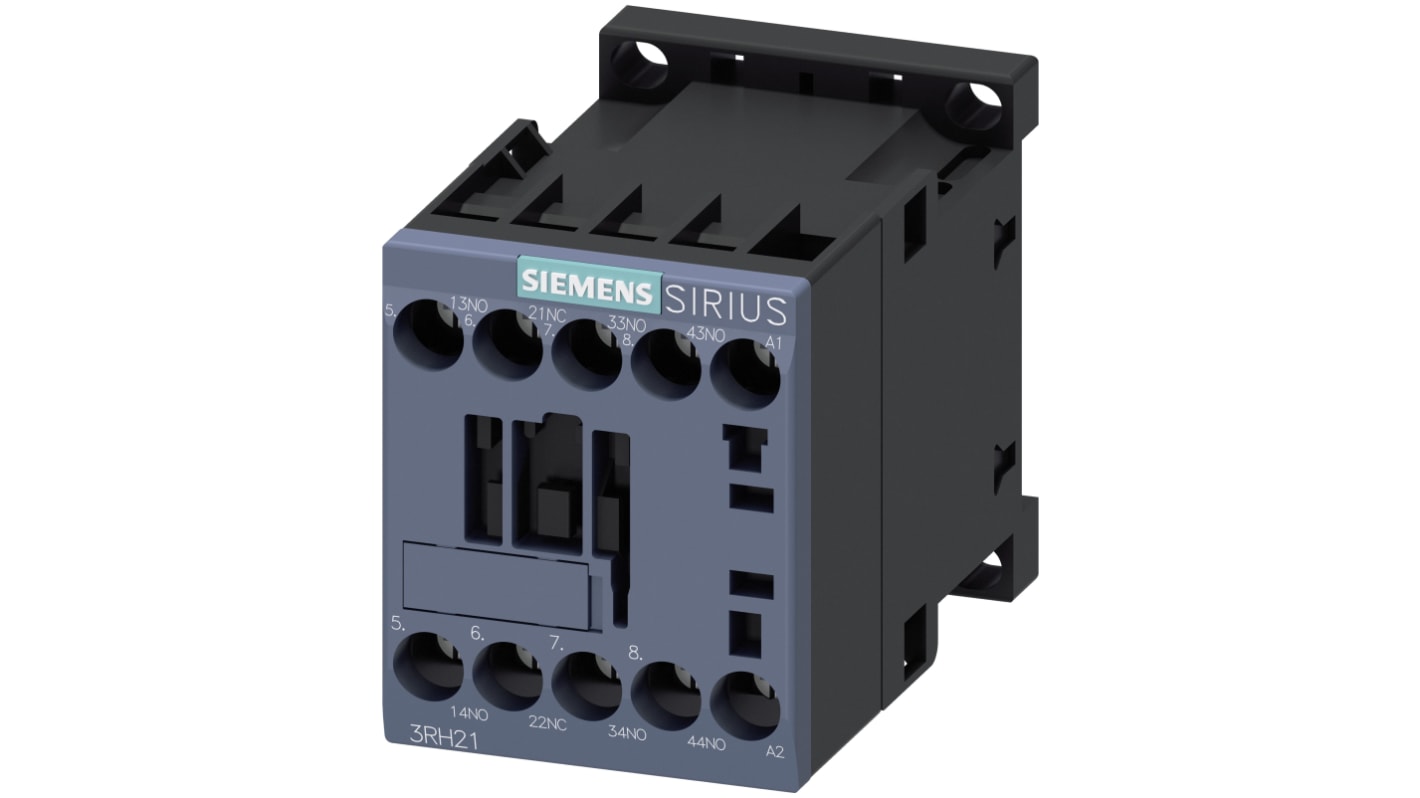

Siemens SIRIUS 3RH2 Contactor Relay, 230 V ac Coil, 4-Pole, 10 A, 3NO + 1NC, 690 V ac

RS Stock No.:: 746-0749
Distrelec Article No.:: 136-23-017
Mfr. Part No.:: 3RH2131-1AP00
Manufacturer:: Siemens

Siemens SIRIUS 3RH2 Contactor Relay, 230 V ac Coil, 4-Pole, 10 A, 3NO + 1NC, 690 V ac

Bulk discount available

Price Each

MYR332.24

21 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 4	MYR332.24
5 +	MYR273.45

RS Stock No.:: 746-0749
Distrelec Article No.:: 136-23-017
Mfr. Part No.:: 3RH2131-1AP00
Manufacturer:: Siemens

Contactor Relays - 3RH2 Range

Climate-proof, finger safe contactor relays. RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) can be plugged onto all contactor relays for damping opening surges in the coil.

Size S00
High degree if contact stability at low voltages & current
Suitable for use with solid-state circuits with currents ≥ 1 mA at a voltage of ≥ 17 V
Capable of expansion by up to four contacts through use of snap-on auxiliary switch blocks

Note

The OFF-delay of the NO contact and the ON-delay of the NC contact are increased if the contactor coils are attenuated against voltage peaks (noise suppression diode 6 to 10 times; diode assemblies 2 to 6 times, varistor +2 to 5 ms).

Standards

IEC 60947-1, EN 60947-1, IEC 60947-4-1, EN 60947-4-1, IEC 60947-5-1, EN 60947-5-1.

Siemens 3RH2 Series Contactor, 230V AC Coil Voltage, 3NO + 1NC Normal State Configuration - 3RH2131-1AP00

This industrial component is crucial for control functions in electrical circuits, particularly within automation environments. The contactor is designed to handle substantial loads, ensuring the safe and efficient operation of machinery. Its sturdy construction and dependable performance make it essential for optimising industrial processes.

Features & Benefits

• 230V AC operation enhances energy efficiency
• 4 pole configuration enables versatile connectivity
• 3NO 1NC arrangement provides operational flexibility
• Rated for contact voltage up to 690V AC
• Features screw terminals for straightforward installation
• Mechanical service life of 30 million cycles promotes durability

Applications

• Used in motor control circuits for industrial machinery
• Applicable in automation systems for power distribution
• Integrated into control panels for effective circuit management
• Employed in HVAC systems to handle high loads

What load ratings can be handled with this component?

It can support contact current ratings of up to 10A.

Is it suitable for use in harsh environments?

This component operates efficiently within a temperature range of -25°C to +60°C.

What installation methods are recommended for optimal positioning?

It can be mounted on a vertical surface and tilted for accessibility.

How do I ensure compatibility with existing systems?

Review operational voltage and current specifications to confirm alignment with your setup.

What factors affect its lifespan and performance?

Frequent switching and the nature of operational environments can influence its operational cycles and service life.

Siemens Sirius Range Contactor & Control Relays

Attribute	Value
Coil Voltage	230 V ac
Number of Poles	4
Contact Voltage Rating	690 V ac
Contact Current Rating	10 A
Range	SIRIUS
Series	3RH2
Normal State Configuration	3NO/1NC
Auxiliary Contact Configuration	3NC/1NO
Number Of Auxiliary Contacts	4
Terminal Type	Screw
Length	57.5mm
Width	45mm
Depth	73mm
Control Voltage	230 V
Mounting Style	DIN Rail
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
