Select all	Attribute	Value
	Brand	Siemens
	Coil Voltage	110 V ac
	Number of Poles	3
	Contact Voltage Rating	400 V ac
	Contact Current Rating	51 A
	Range	SIRIUS 3RT
	Power Rating	22 kW
	Series	Size S2, 3RT2
	Normal State Configuration	1NO + 1NC
	Number Of Auxiliary Contacts	2
	Auxiliary Contact Configuration	1NO + 1NC
	Terminal Type	Screw
	Length	114mm
	Width	55mm
	Depth	130mm
	Better World Product	Yes
	Better World Claim	Low carbon manufacture
	Load Voltage	400V ac
	Load Current	51A
	Control Voltage	110 V ac
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+60°C
	Mounting Style	DIN Rail

	Select all
	Brand Siemens
	Coil Voltage 110 V ac
	Number of Poles 3
	Contact Voltage Rating 400 V ac
	Contact Current Rating 51 A
	Range SIRIUS 3RT
	Power Rating 22 kW
	Series Size S2, 3RT2
	Normal State Configuration 1NO + 1NC
	Number Of Auxiliary Contacts 2
	Auxiliary Contact Configuration 1NO + 1NC
	Terminal Type Screw
	Length 114mm
	Width 55mm
	Depth 130mm
	Better World Product Yes
	Better World Claim Low carbon manufacture
	Load Voltage 400V ac
	Load Current 51A
	Control Voltage 110 V ac
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +60°C
	Mounting Style DIN Rail

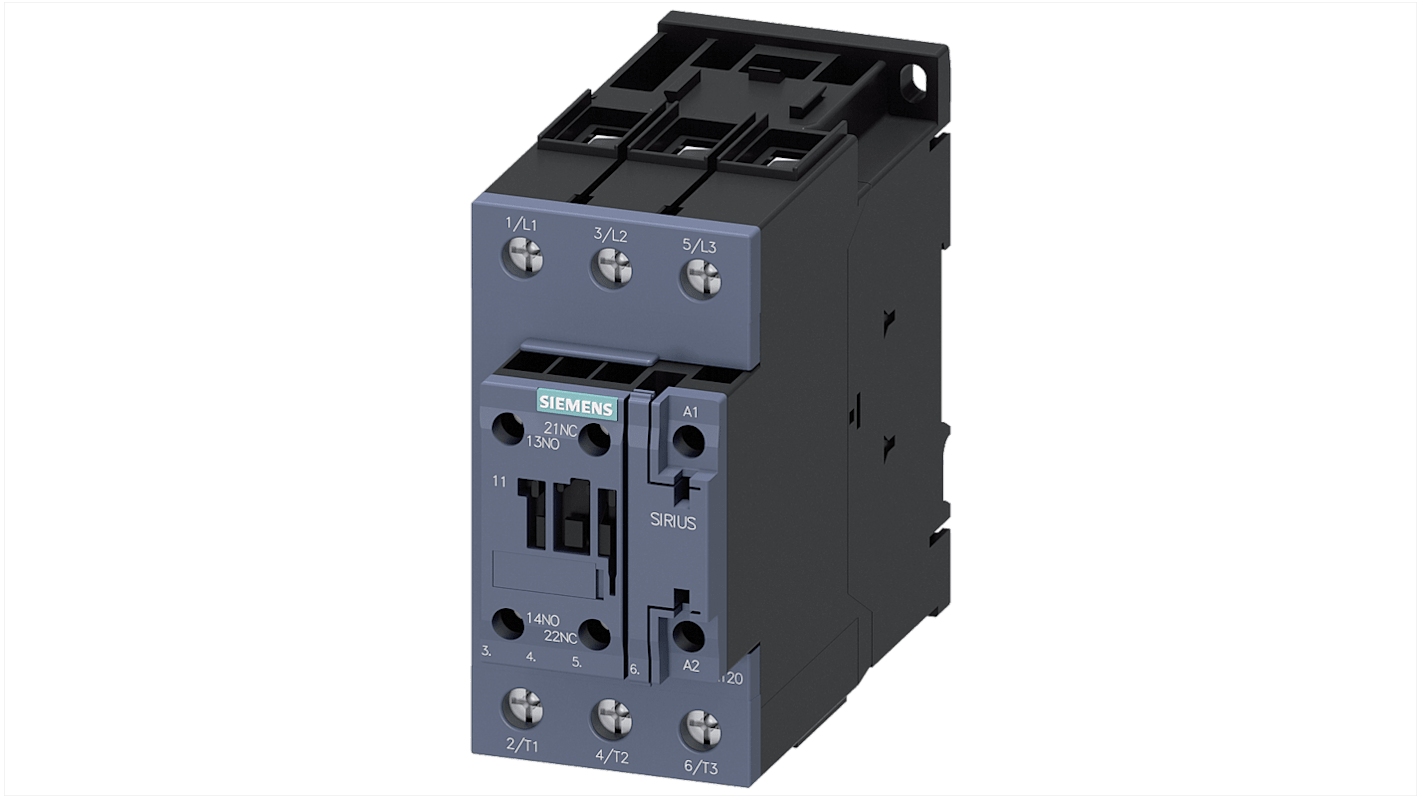

Siemens SIRIUS 3RT Size S2, 3RT2 Contactor, 110 V ac Coil, 3-Pole, 51 A, 22 kW, 1NO + 1NC, 400 V ac

FREE delivery for orders over MYR500.00

Better World

Siemens size S2, 3RT2 Series Contactor, 110V AC Coil Voltage, 51A Current Rating - 3RT2036-1AG20

Features & Benefits

Applications

What are the typical operational current ratings at different voltage levels?

What is the expected mechanical service life?

What configurations are available for auxiliary contacts?

How does the device perform in extreme temperatures?
