Select all	Attribute	Value
	Brand	Siemens
	Coil Voltage	110 V ac
	Number of Poles	3
	Contact Voltage Rating	400 V ac
	Contact Current Rating	12 A
	Range	SIRIUS 3RT
	Series	Size S00, 3RT2
	Power Rating	5.5 kW
	Normal State Configuration	1NC
	Number Of Auxiliary Contacts	1
	Auxiliary Contact Configuration	1NC
	Terminal Type	Spring-Loaded
	Length	70mm
	Width	45mm
	Depth	73mm
	Better World Claim	Low carbon manufacture
	Better World Product	Yes
	Minimum Operating Temperature	-25°C
	Mounting Style	DIN Rail
	Maximum Operating Temperature	+60°C
	Load Current	12A
	Load Voltage	400V ac
	Control Voltage	110 V ac

	Select all
	Brand Siemens
	Coil Voltage 110 V ac
	Number of Poles 3
	Contact Voltage Rating 400 V ac
	Contact Current Rating 12 A
	Range SIRIUS 3RT
	Series Size S00, 3RT2
	Power Rating 5.5 kW
	Normal State Configuration 1NC
	Number Of Auxiliary Contacts 1
	Auxiliary Contact Configuration 1NC
	Terminal Type Spring-Loaded
	Length 70mm
	Width 45mm
	Depth 73mm
	Better World Claim Low carbon manufacture
	Better World Product Yes
	Minimum Operating Temperature -25°C
	Mounting Style DIN Rail
	Maximum Operating Temperature +60°C
	Load Current 12A
	Load Voltage 400V ac
	Control Voltage 110 V ac

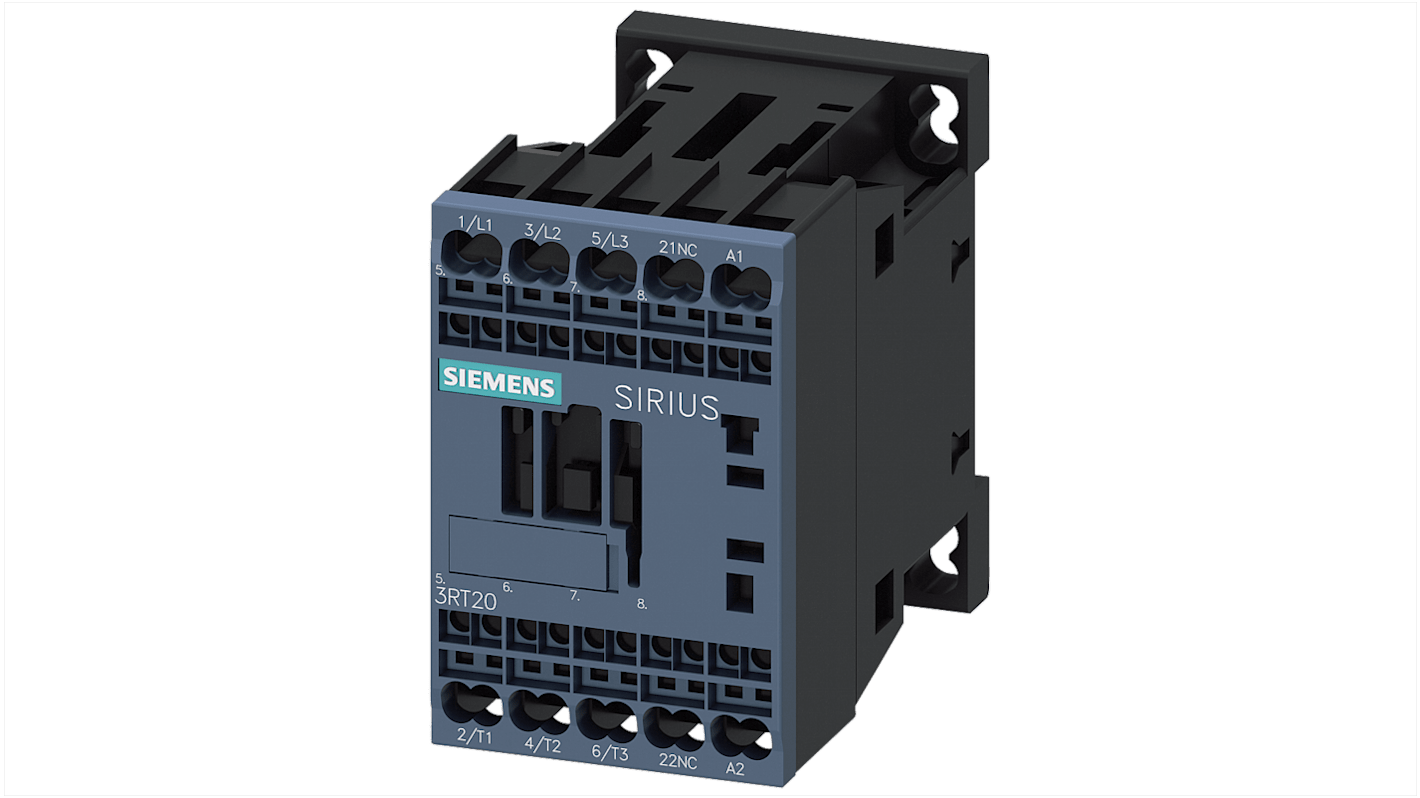

Siemens SIRIUS 3RT Size S00, 3RT2 Contactor, 110 V ac Coil, 3-Pole, 12 A, 5.5 kW, 1NC, 400 V ac

FREE delivery for orders over MYR500.00

Better World

Siemens size S00, 3RT2 Series Contactor, 110V AC Coil Voltage, 12A Current Rating - 3RT2017-2GG22

Features & Benefits

Applications

What is the advantage of the spring-loaded terminal design for this device?

How does the integrated full-wave rectifier impact its performance?

What operational conditions can this device withstand?

How does the operating frequency affect the use in industrial applications?
