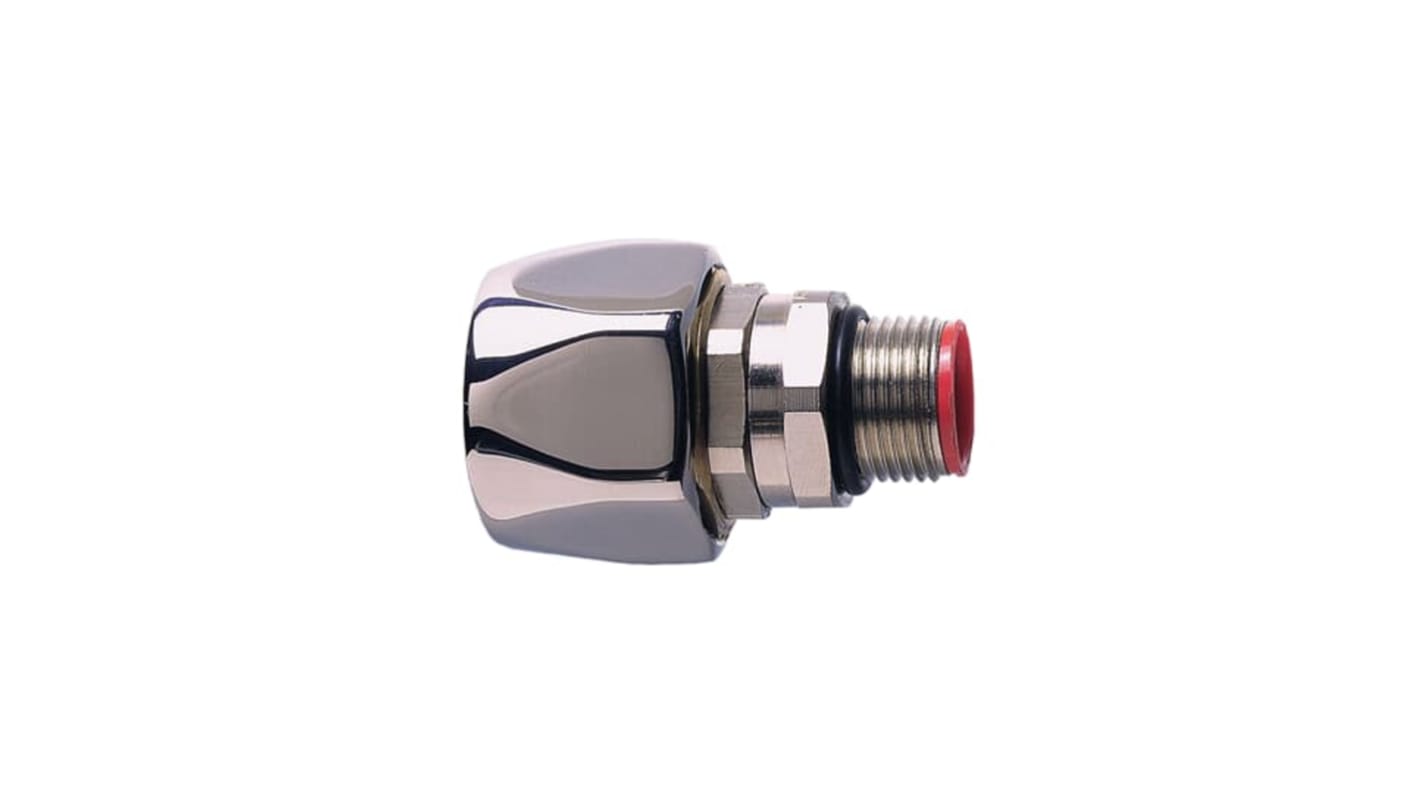

ABB Fitting Metallic, Conduit Fitting, 9.53 mm Nominal Size, M20, Nickel Plated Brass, Metallic IP68 rating
- RS Stock No.:
- 266-4478
- Mfr. Part No.:
- 7TCA296100R0152
- Manufacturer:
- ABB
Subtotal (1 pack of 10 units)*
MYR37,636.98
FREE delivery for orders over RM 500.00
Stocked by manufacturer
- Ready to ship from 28 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | MYR3,763.698 | MYR37,636.98 |
*price indicative
- RS Stock No.:
- 266-4478
- Mfr. Part No.:
- 7TCA296100R0152
- Manufacturer:
- ABB
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Conduit Fitting | |
| Nominal Size | 9.53 mm | |
| Sub Type | Fitting | |
| Thread Size | M20 | |
| Material | Nickel Plated Brass | |
| Colour | Metallic | |
| IP Rating | IP68 | |
| Finish | Metallic | |
| Standards/Approvals | CE | |
| Series | Adaptaflex | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Conduit Fitting | ||
Nominal Size 9.53 mm | ||
Sub Type Fitting | ||
Thread Size M20 | ||
Material Nickel Plated Brass | ||
Colour Metallic | ||
IP Rating IP68 | ||
Finish Metallic | ||
Standards/Approvals CE | ||
Series Adaptaflex | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
ABB Adaptaflex Series Conduit Fitting, 9.53mm Nominal size, M20 Thread size - 7TCA296100R0152
This conduit fitting provides a secure metallic connection for routing cables in demanding electrical and mechanical installations. It is designed to create a sealed Interface between conduit and enclosures, maintaining ingress protection in harsh environments while matching common thread Interfaces used in industrial systems.
Features & Benefits
• Nickel-plated brass construction improves corrosion resistance and durability
• IP68 rating ensures protection against dust ingress and prolonged immersion
• M20 thread size allows straightforward integration with standard glands
• Metallic finish offers consistent electrical continuity where required
• IP68 rating ensures protection against dust ingress and prolonged immersion
• M20 thread size allows straightforward integration with standard glands
• Metallic finish offers consistent electrical continuity where required
**Applications**
• Suitable for cable routing in factory automation installations
• Ideal for electrical panels in control cabinets and switchgear
• Used for conduit terminations on machinery in manufacturing plants
• Can be used for field cabling in outdoor instrumentation setups
• Ideal for electrical panels in control cabinets and switchgear
• Used for conduit terminations on machinery in manufacturing plants
• Can be used for field cabling in outdoor instrumentation setups
What materials prevent degradation in corrosive atmospheres?
The fitting is manufactured from nickel-plated brass which combines the strength of brass with a plated surface that slows corrosive attack, extending service life in moderately aggressive environments.
How does the product manage exposure to water during operations?
Its IP68 classification indicates it provides complete dust exclusion and sustained immersion protection, allowing deployment in locations where temporary or continuous water exposure occurs.
Which thread Interface will it mate with on existing systems?
It is designed with an M20 threaded connection to match standard M20 conduit or gland threads used across many electrical installations.
What nominal conduit passage does it accommodate internally?
The fitting is specified for a nominal 9.53 mm conduit passage to accept appropriately sized cable assemblies.
