Microchip EtherCAT SPI EVB-LAN9252-SPI Interface Board for RJ45/8P8C connectors EVB-LAN9252-SPI

View this category
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

MYR554.38

Add to Basket
Select or type quantity
In Stock
  • Plus 2 unit(s) shipping from 10 August 2026
  • Plus 4 unit(s) shipping from 29 September 2026
  • Plus 4 unit(s) shipping from 27 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per Unit
1 - 24MYR554.38
25 - 99MYR546.61
100 +MYR535.67

*price indicative

RS Stock No.:
198-1177
Mfr. Part No.:
EVB-LAN9252-SPI
Manufacturer:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Communication & Wireless Development Tool

Kit Classification

Interface Board

Technology

EtherCAT

For Use With

RJ45/8P8C connectors

Featured Device

EVB-LAN9252-SPI

Kit Name

EtherCAT SPI

Interface Type

SPI

Standards/Approvals

ISO/TS-16949:2009, FCC rules, ISO 9001:2000, EU RoHS2 Directive 2011/65/EU, R&TTE Directive 1999/5/EC

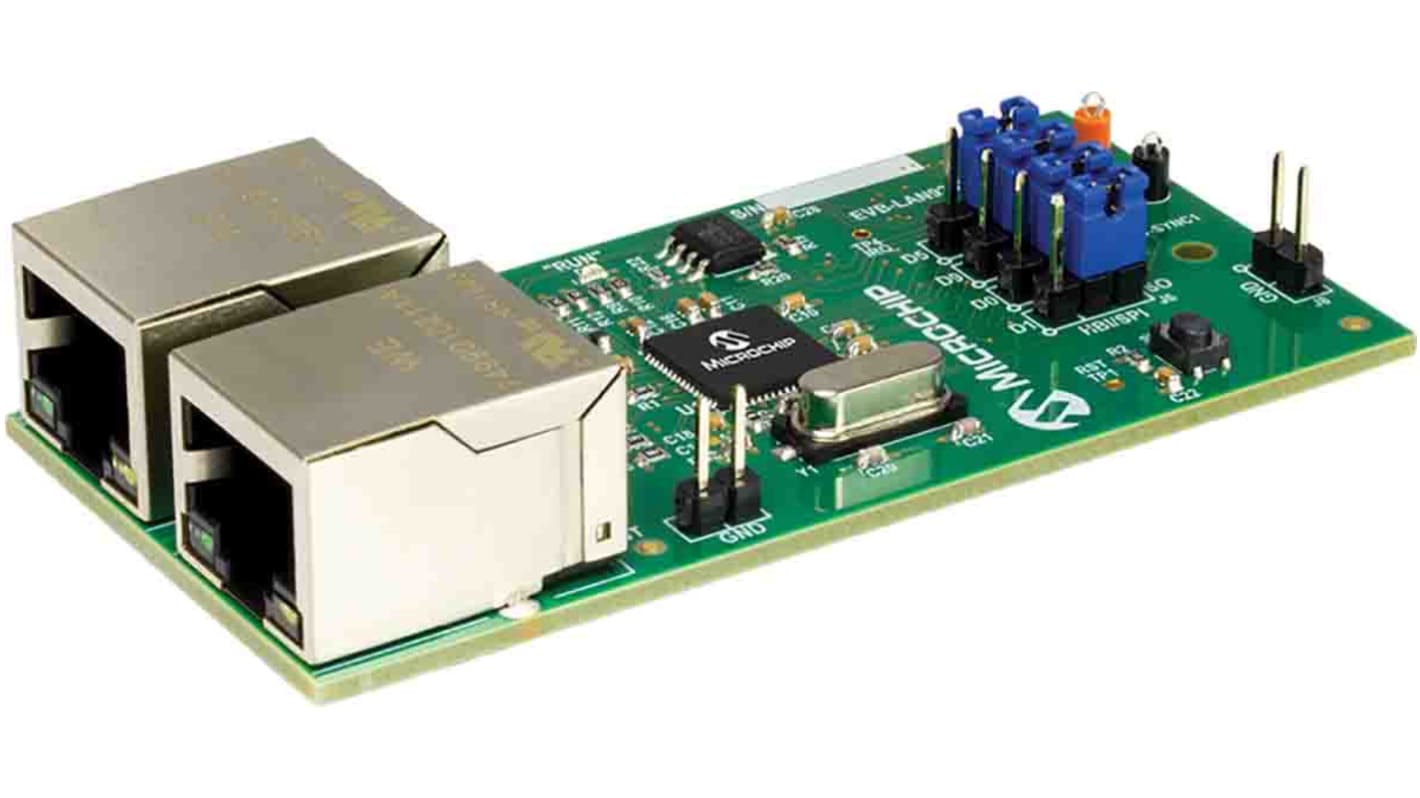

The Microchip EVB-LAN9252-SPI board is intended to be a generic interface to many third party processors used in EtherCAT Slave applications. The EVB-LAN9252-SPI is designed to be a simple interface to the SPI port, with test points for power and ground. The evaluation board uses standard RJ45 connectors to connect to the EtherCAT system and can be used to begin software development of the EtherCAT Slave code before the final hardware is completed.

LAN9252 EtherCAT Slave Controller

Two network connections to RJ45 / 8P8C connectors

EEPROM fitted for EtherCAT Slave Information (ESI)

40pin Microcontroller interface for HBI or SPI

Fly-wiring headers for SPI

Supported by the LAN9252 C2000 SDK
