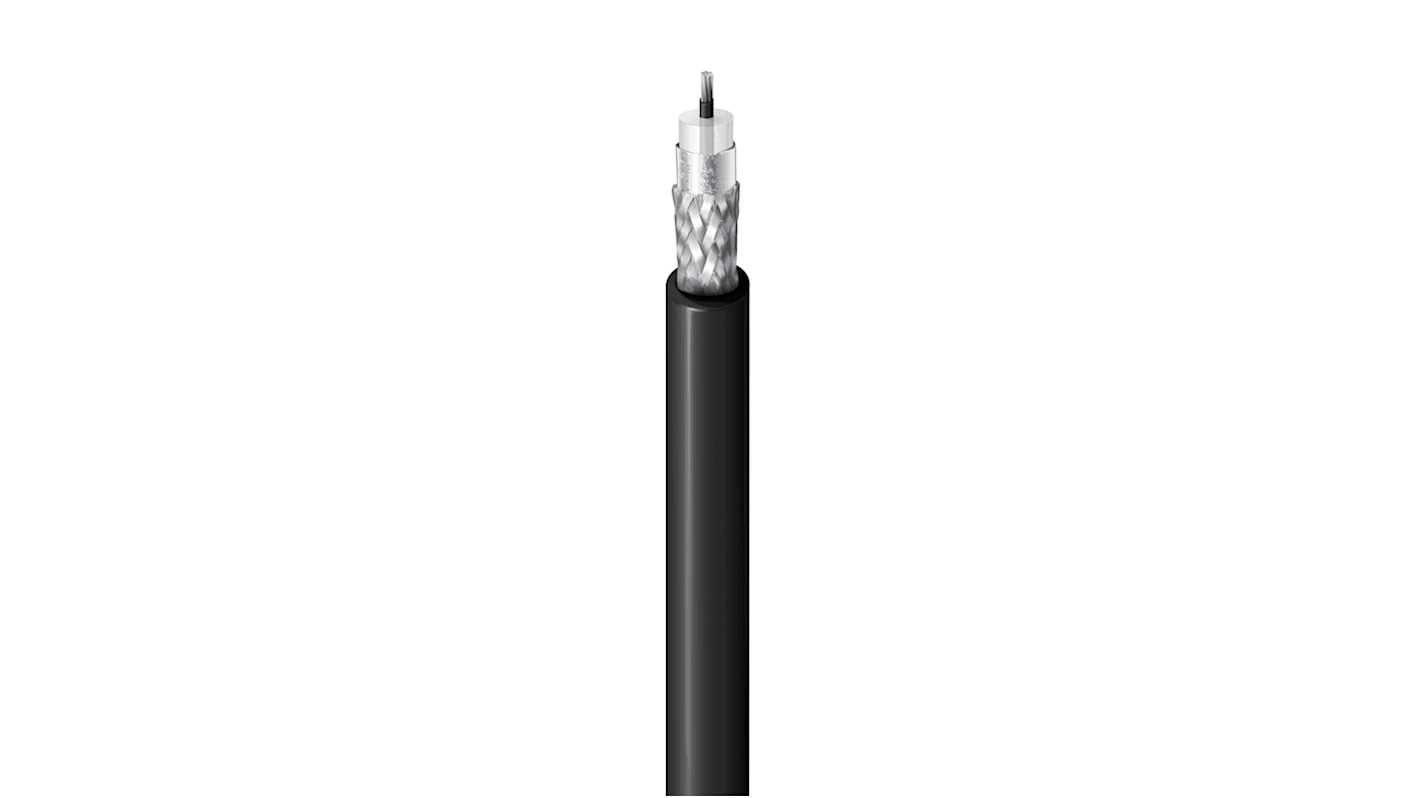

Belden 9223 Series, 152.4m, RG58 Coaxial, Unterminated50 Ω
- RS Stock No.:
- 176-2090
- Mfr. Part No.:
- 9223 010500
- Manufacturer:
- Belden
Subtotal (1 reel of 152 metres)**
MYR5,937.23
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Reel(s) | Per Reel | Per Metre** |
---|---|---|
1 + | MYR5,937.23 | MYR39.061 |
**price indicative
- RS Stock No.:
- 176-2090
- Mfr. Part No.:
- 9223 010500
- Manufacturer:
- Belden
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Terminated/Unterminated | Unterminated | |
Coaxial Type | RG58 | |
Outer Diameter | 4.826mm | |
CPR Certification | Eca | |
Characteristic Impedance | 50 Ω | |
Attenuation | 0.476 dB @ 1000 MHz | |
Length | 152.4m | |
Sheath Colour | Black | |
Voltage Rating | 1.9 kV ac | |
Conductor Strand Type | Stranded | |
Conductor Material | Tinned Copper | |
Sheath Material | Polyvinyl Chloride PVC | |
Core Strands | 7/0.73 | |
Series | 9223 | |
Number of Strands | 7 | |
Operating Temperature Range | -40 → +80 °C | |
Insulation Material | PE | |
Capacitance | 121.3pF/m | |
Shielding | Tinned Copper Braid | |
Velocity ratio | 56% | |
Minimum Operating Temperature | -40°C | |
Size of Strands | 22 AWG | |
Standards Met | CPR Euroclass:Eca, EU Directive 2000/53/EC (ELV), EU Directive 2003/11/EC (BFR), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU, EU Directive Compliance:EU Directive 2003/11/EC (BFR) | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Belden | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG58 | ||
Outer Diameter 4.826mm | ||
CPR Certification Eca | ||
Characteristic Impedance 50 Ω | ||
Attenuation 0.476 dB @ 1000 MHz | ||
Length 152.4m | ||
Sheath Colour Black | ||
Voltage Rating 1.9 kV ac | ||
Conductor Strand Type Stranded | ||
Conductor Material Tinned Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Core Strands 7/0.73 | ||
Series 9223 | ||
Number of Strands 7 | ||
Operating Temperature Range -40 → +80 °C | ||
Insulation Material PE | ||
Capacitance 121.3pF/m | ||
Shielding Tinned Copper Braid | ||
Velocity ratio 56% | ||
Minimum Operating Temperature -40°C | ||
Size of Strands 22 AWG | ||
Standards Met CPR Euroclass:Eca, EU Directive 2000/53/EC (ELV), EU Directive 2003/11/EC (BFR), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU, EU Directive Compliance:EU Directive 2003/11/EC (BFR) | ||
Maximum Operating Temperature +80°C | ||
