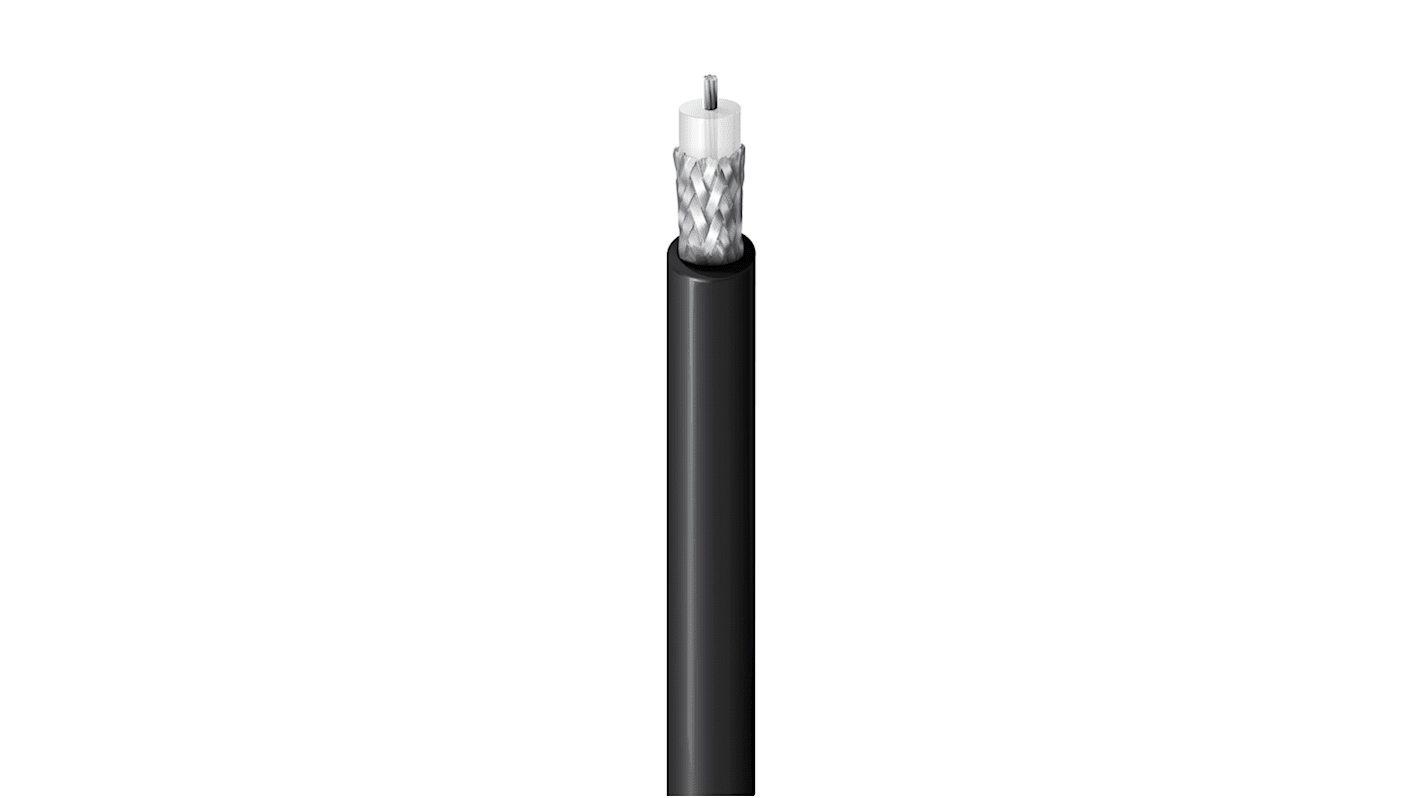

Belden 8262 Series, 152.4m, RG58C/U Coaxial, Unterminated50 Ω
- RS Stock No.:
- 136-6336
- Mfr. Part No.:
- 8262 010500
- Manufacturer:
- Belden
Subtotal (1 reel of 152 metres)**
MYR3,897.25
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Reel(s) | Per Reel | Per Metre** |
---|---|---|
1 + | MYR3,897.25 | MYR25.64 |
**price indicative
- RS Stock No.:
- 136-6336
- Mfr. Part No.:
- 8262 010500
- Manufacturer:
- Belden
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Terminated/Unterminated | Unterminated | |
Coaxial Type | RG58C/U | |
Outer Diameter | 4.95mm | |
CPR Certification | Eca | |
Characteristic Impedance | 50 Ω | |
Attenuation | 0.705 dB/100m @ 1000 MHz | |
Length | 152.4m | |
Sheath Colour | Black | |
Voltage Rating | 1.4 kV ac | |
Conductor Strand Type | Stranded | |
Number of Strands | 19 | |
Series | 8262 | |
Core Strands | 1/0.89 | |
Operating Temperature Range | -40 → +80 °C | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -40°C | |
Size of Strands | 20 AWG | |
Standards Met | M17/155-00001, MIL-C-17 | |
Velocity ratio | 66% | |
Conductor Material | Tinned Copper | |
Insulation Material | PE | |
Capacitance | 101.05pF/m | |
Shielding | Tinned Copper Braid | |
Sheath Material | Polyvinyl Chloride PVC | |
Select all | ||
---|---|---|
Brand Belden | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG58C/U | ||
Outer Diameter 4.95mm | ||
CPR Certification Eca | ||
Characteristic Impedance 50 Ω | ||
Attenuation 0.705 dB/100m @ 1000 MHz | ||
Length 152.4m | ||
Sheath Colour Black | ||
Voltage Rating 1.4 kV ac | ||
Conductor Strand Type Stranded | ||
Number of Strands 19 | ||
Series 8262 | ||
Core Strands 1/0.89 | ||
Operating Temperature Range -40 → +80 °C | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Size of Strands 20 AWG | ||
Standards Met M17/155-00001, MIL-C-17 | ||
Velocity ratio 66% | ||
Conductor Material Tinned Copper | ||
Insulation Material PE | ||
Capacitance 101.05pF/m | ||
Shielding Tinned Copper Braid | ||
Sheath Material Polyvinyl Chloride PVC | ||
