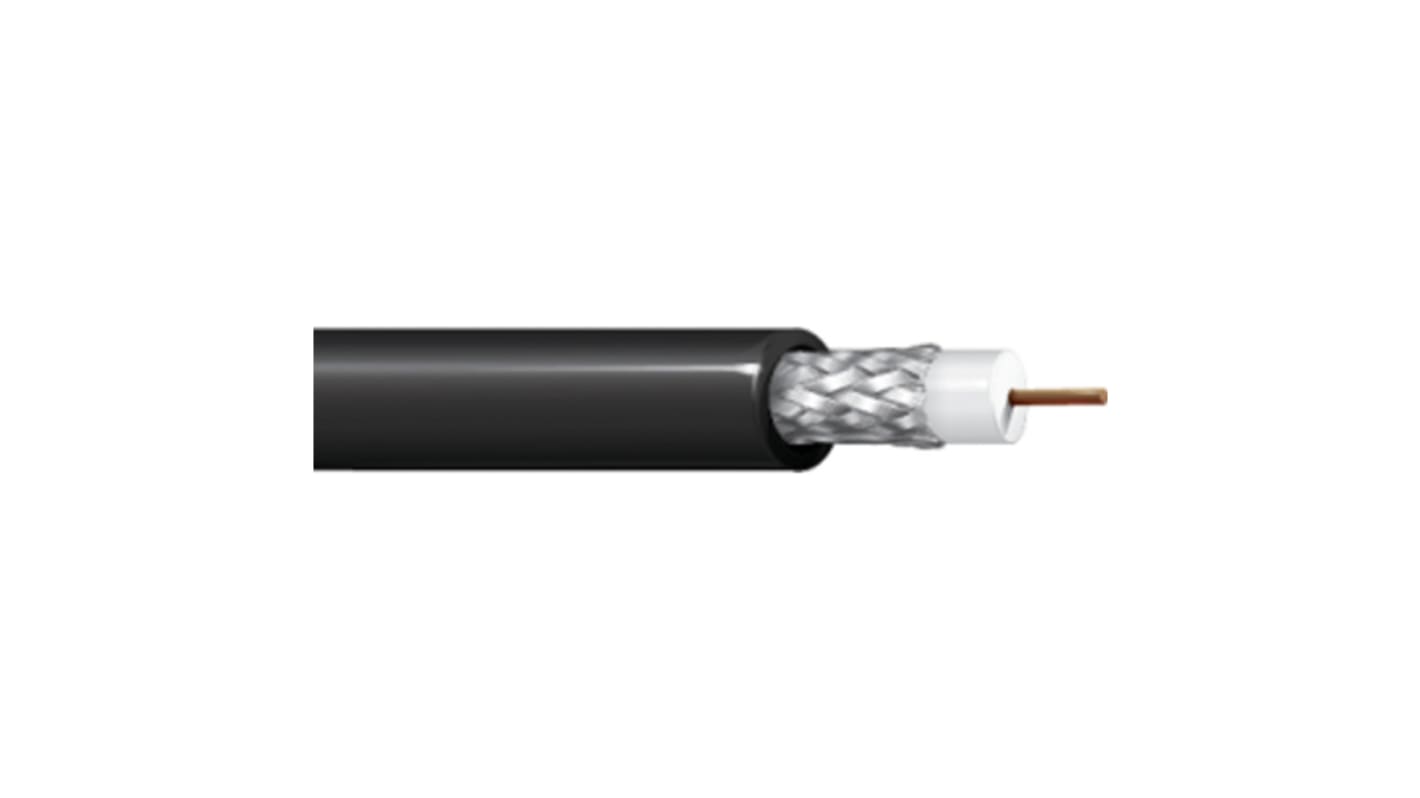

Belden 8240 Series, 30.48 m, RG58 Coaxial Coaxial Cable 52 Ω, Black, Unterminated
- RS Stock No.:
- 176-2081
- Distrelec Article No.:
- 301-55-144
- Mfr. Part No.:
- 8240 010100
- Manufacturer:
- Belden
Subtotal (30 metres, on reels of 30)*
MYR783.75
FREE delivery for orders over RM 150.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 28 September 2026
- Plus 3 unit(s) shipping from 02 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR783.75 | MYR26.125 |
*price indicative
- RS Stock No.:
- 176-2081
- Distrelec Article No.:
- 301-55-144
- Mfr. Part No.:
- 8240 010100
- Manufacturer:
- Belden
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Coaxial Cable | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG58 | |
| American Wire Gauge | 20AWG | |
| Voltage | 1.9kV | |
| Outside Diameter | 4.826mm | |
| Characteristic Impedance | 52Ω | |
| Conductor Type | Solid | |
| Minimum Operating Temperature | -30°C | |
| Attenuation | 0.476 dB | |
| Cable Length | 30.48m | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | CEC/C(UL), EU Directive 2000/53/EC (ELV), EU Directive 2003/11/EC (BFR), EU Directive 2003/96/EC (BFR), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), NEC/(UL), UL Style 1354 | |
| Jacket Colour | Black | |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) | |
| Conductor Material | Copper | |
| Series | 8240 | |
| Jacket Material | Polyvinyl Chloride | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Coaxial Cable | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG58 | ||
American Wire Gauge 20AWG | ||
Voltage 1.9kV | ||
Outside Diameter 4.826mm | ||
Characteristic Impedance 52Ω | ||
Conductor Type Solid | ||
Minimum Operating Temperature -30°C | ||
Attenuation 0.476 dB | ||
Cable Length 30.48m | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals CEC/C(UL), EU Directive 2000/53/EC (ELV), EU Directive 2003/11/EC (BFR), EU Directive 2003/96/EC (BFR), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), NEC/(UL), UL Style 1354 | ||
Jacket Colour Black | ||
Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH) | ||
Conductor Material Copper | ||
Series 8240 | ||
Jacket Material Polyvinyl Chloride | ||
- COO (Country of Origin):
- US
Belden Series 8240 Coaxial Cable, 0.476 dB at 1000 MHz Attenuation, 99.50pF/m Capacitance - 8240 010500
This high-quality Belden coaxial cable, with a 52 ohm characteristic impedance and RG58 type provides excellent attenuation and capacitance levels. Ideal for various applications within the automation, electronics, electrical, and mechanical industries.
Features & Benefits
• Solid copper conductor ensures reliable signal transmission
• Tinned copper braid shielding offers superior protection against interference
• Flame retardant and LSZH properties make it safe for use in critical environments
• PVC sheath provides durability and longevity
• Operating temperature range from -40°C to +75°C for versatile installation options.
Applications
• Suitable for outdoor aerial installations due to its durable construction
• Ideal for distributed antenna systems (DAS) in various settings
• Can be used for indoor applications requiring flame retardant materials
• Can be used for environments where low smoke zero halogen cables are mandated
• Suited for applications needing a reliable and high-performance coaxial cable solution
Can it withstand extreme temperatures?
It has a wide operating temperature range from -40°C to +75°C, making it suitable for various environments.
Will it provide reliable signal transmission?
Yes, the solid copper conductor and tinned copper braid shielding ensure excellent signal integrity.
Is this cable suitable for outdoor use?
Yes, the PVC sheath and flame retardant properties make it ideal for outdoor installations.
Can it be used for distributed antenna systems?
It is specifically designed for DAS applications, offering the necessary specifications for optimal performance.
Does it comply with industry standards?
Yes, it meets various standards including UL, RoHS, and WEEE directives for quality assurance.
