ABB SM50DCF, 6 Input Channels, 4 Output Channels, Videographic Chart Recorder Measures Current, Resistance,
- RS Stock No.:
- 742-6825
- Mfr. Part No.:
- SM50DFC/B000010E/S
- Manufacturer:
- ABB
Temporarily out of stock - back order for despatch 03/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR11,465.59
| Units | Per Unit |
| 1 + | MYR11,465.59 |
- RS Stock No.:
- 742-6825
- Mfr. Part No.:
- SM50DFC/B000010E/S
- Manufacturer:
- ABB
Legislation and Compliance
Product Details

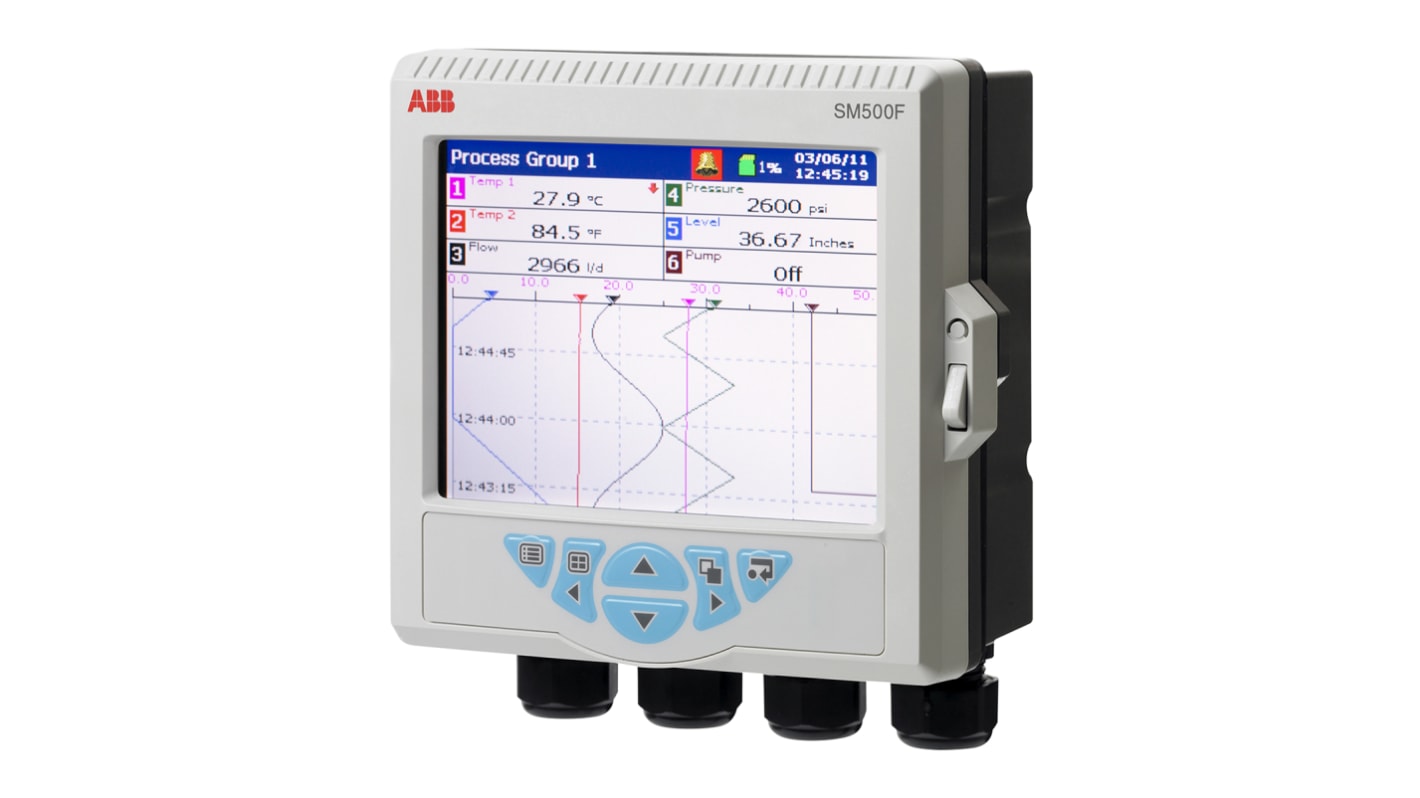

SM500F Field Mountable Videographic Recorder
The SM500F is a field-mountable paperless recorder. Its unique enclosure design enables wall, pipe or panel mounting of the unit. Process data is displayed clearly to the local operator through various display formats, including chart, bar graph and digital indicator displays. Also, process data is logged securely to the removable SD memory card. Ethernet communications provide convenient remote monitoring of the process and access to logged data (742-6828 and 742-6822) only.
• Unique universal mounting capability
- Wall, pipe or panel-mount
- Ultra-slim design, 90 mm (3.5 in) deep
• Secure data recording
- 64 MB internal Flash memory
- Archiving to SD memory card
• 21 CFR Part 11 compliant data security
- Extensive physical and electronic security features
• 12 software recording channels
- 21 CFR part 11 compliant
• Remote access and data retrieval
- Ethernet connectivity (742-6828 and 742-6822) only
• Install into the harshest of process environments
- Protection to NEMA4X and IP66 standards
• Choice of displays
- Colour TFT or monochrome options
• Quick and easy setup
- Online help and Windows™-style menus
- Wall, pipe or panel-mount
- Ultra-slim design, 90 mm (3.5 in) deep
• Secure data recording
- 64 MB internal Flash memory
- Archiving to SD memory card
• 21 CFR Part 11 compliant data security
- Extensive physical and electronic security features
• 12 software recording channels
- 21 CFR part 11 compliant
• Remote access and data retrieval
- Ethernet connectivity (742-6828 and 742-6822) only
• Install into the harshest of process environments
- Protection to NEMA4X and IP66 standards
• Choice of displays
- Colour TFT or monochrome options
• Quick and easy setup
- Online help and Windows™-style menus
Standards
21 CFR Part 11 Compliant
Specifications
Attribute | Value |
|---|---|
| Chart Type | Videographic |
| Number of Inputs | 6 |
| Parameter Measured | Current, Resistance, Temperature, Voltage |
| Maximum Temperature Measurement | +1300 (K) °C, +1300 (N) °C, +1700 (R) °C, +1700 (S) °C, +1800 (B) °C, +300 (T) °C, +900 (E) °C, +900 (J) °C, +900 (L) °C |
| Number of Outputs | 4 |
| Maximum Current Measurement | 50mA |
| Maximum Resistance Measurement | 10 kΩ, 550 Ω |
| Maximum Operating Voltage | 265V ac |
| Maximum Voltage Measurement | 25 V, 150 mV |
| Recorder Input Type | Digital, mA, mV, Resistance, RTD, Thermocouple, Voltage |
| Model Number p | SM50DFC/B000010E/STD |
| IP Rating | IP66 |
| Best Temperature Measurement Accuracy | 0.1 % |
| Weight | 1kg |
| Length | 144mm |
| Width | 79mm |
| Minimum Operating Voltage | 85V ac |
| Power Source | Mains |
| Height | 144mm |
| Best Current Measurement Accuracy | 0.2 % |
| Best Voltage Measurement Accuracy | 0.1 %, 0.2 % |
| Best Resistance Measurement Accuracy | 0.1 % |
