ABB RVG200, 12 Input Channels, 1 Output Channels, Paperless Chart Recorder Measures Current, Millivolt, Resistance,

View all Chart Recorders

Subtotal (1 unit)*

MYR22,369.57

Add to Basket
Select or type quantity
In Stock
  • Plus 2 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR22,369.57

*price indicative

RS Stock No.:
804-6102
Mfr. Part No.:
RVG200A6A6Y0Y0A
Manufacturer:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Chart Type

Paperless

Number of Inputs

12

Parameter Measured

Current, Millivolt, Resistance, Temperature, Voltage

Maximum Temperature Measurement

+50 °C

Maximum Humidity Measurement

95%RH

Number of Outputs

1

Maximum Current Measurement

50mA

Maximum Resistance Measurement

0 ￫ 10000Ω

Maximum Operating Voltage

24 V dc, 240 V ac

Recorder Input Type

Digital 24 V, Digital Volt Free, mA, mV, Resistance, RTD, Thermocouple, V

Maximum Voltage Measurement

24V

Model Number p

RVG200

IP Rating

IP66

Best Temperature Measurement Accuracy

0.1 %

Weight

2kg

Best Current Measurement Accuracy

0.1 %

Height

145mm

Width

154.5mm

Length

145mm

Power Source

Mains

Best Resistance Measurement Accuracy

0.1 %

Best Voltage Measurement Accuracy

0.1 %

Minimum Operating Voltage

100V ac

RoHS Status: Not Applicable

COO (Country of Origin):
GB

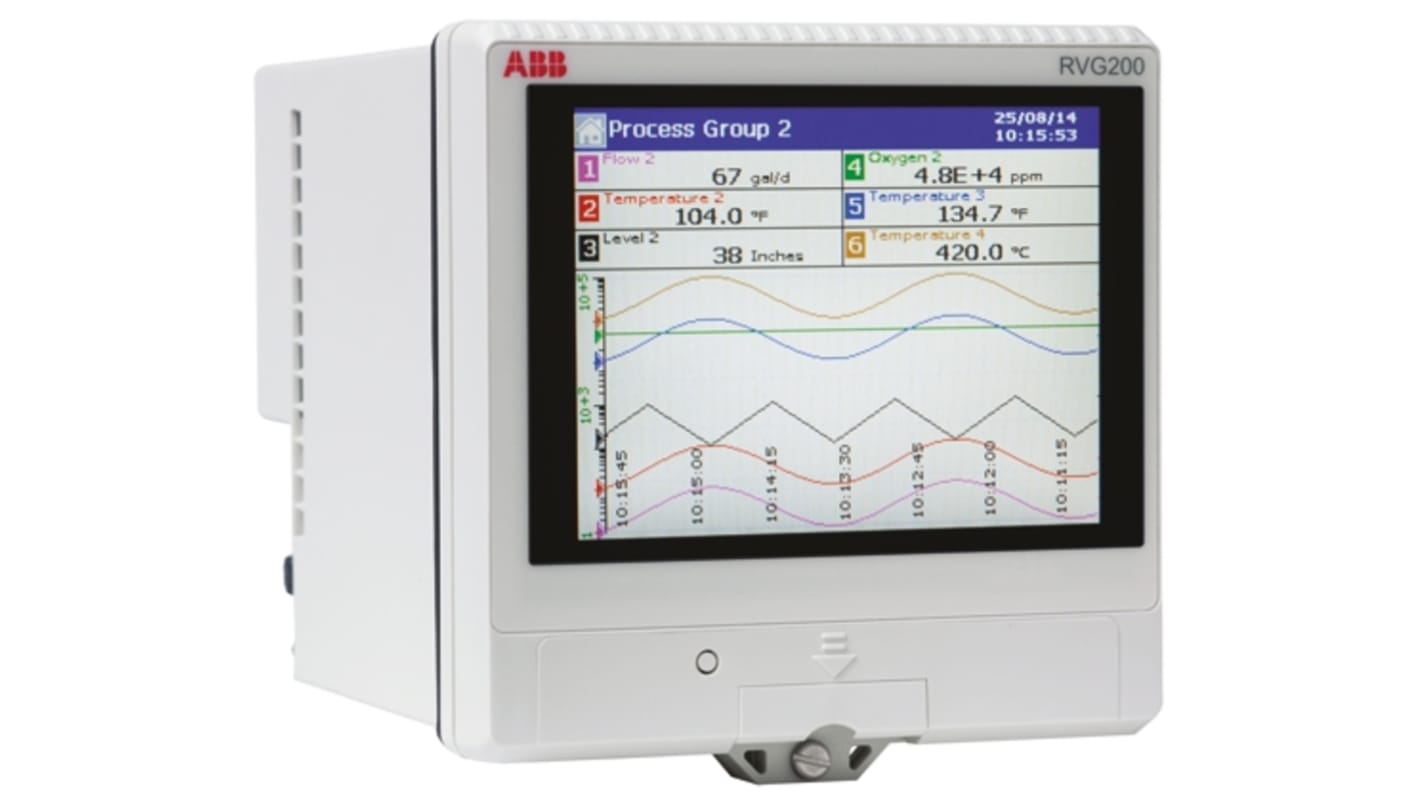

ABB Chart Recorder


The ABB screenmaster RVG200 is a secure 12-channel paperless chart recorder with operating voltage that ranges between 100Vac and 240Vac. The 12 process signals can be connected directly to the RVG200's analogue inputs or transferred to it via digital communication. The data is archived securely in an encrypted format for review using the accompanying DataManager Pro PC software. A touch screen crystal clear 5.7in TFT display, featuring swipe gesture control provides fast and intuitive operation. USB ports further simplify operation by enabling peripherals like a keyboard, mouse or barcode scanner to be attached. It is used to monitor and measure current, millivolt, resistance, temperature and voltage.

Features and Benefits


Advanced functionality like math and logic, batch recording and flow totalization
Easy network integration to control system with Ethernet and RS485 MODBUS RTU master and slave
Easy to use
High security data recording up to 2GB of internal memory
One relay output
Scalable high specification I/O
High security data recording
Touchscreen operation and configuration
Standard Ethernet communications provide remote data access, process supervision and easy integration to control systems

A copy of DataManager Pro PC software is supplied with the recorder (pre-loaded on to the memory card supplied) to review data recorded by the RVG200.

The basic functions of DataManager Pro are free of charge. Only if the user wants to use the advanced features (e.g. automatically collecting the data from recorders via Ethernet) is a license required.

Certifications


IP66 rated
NEMA4X
