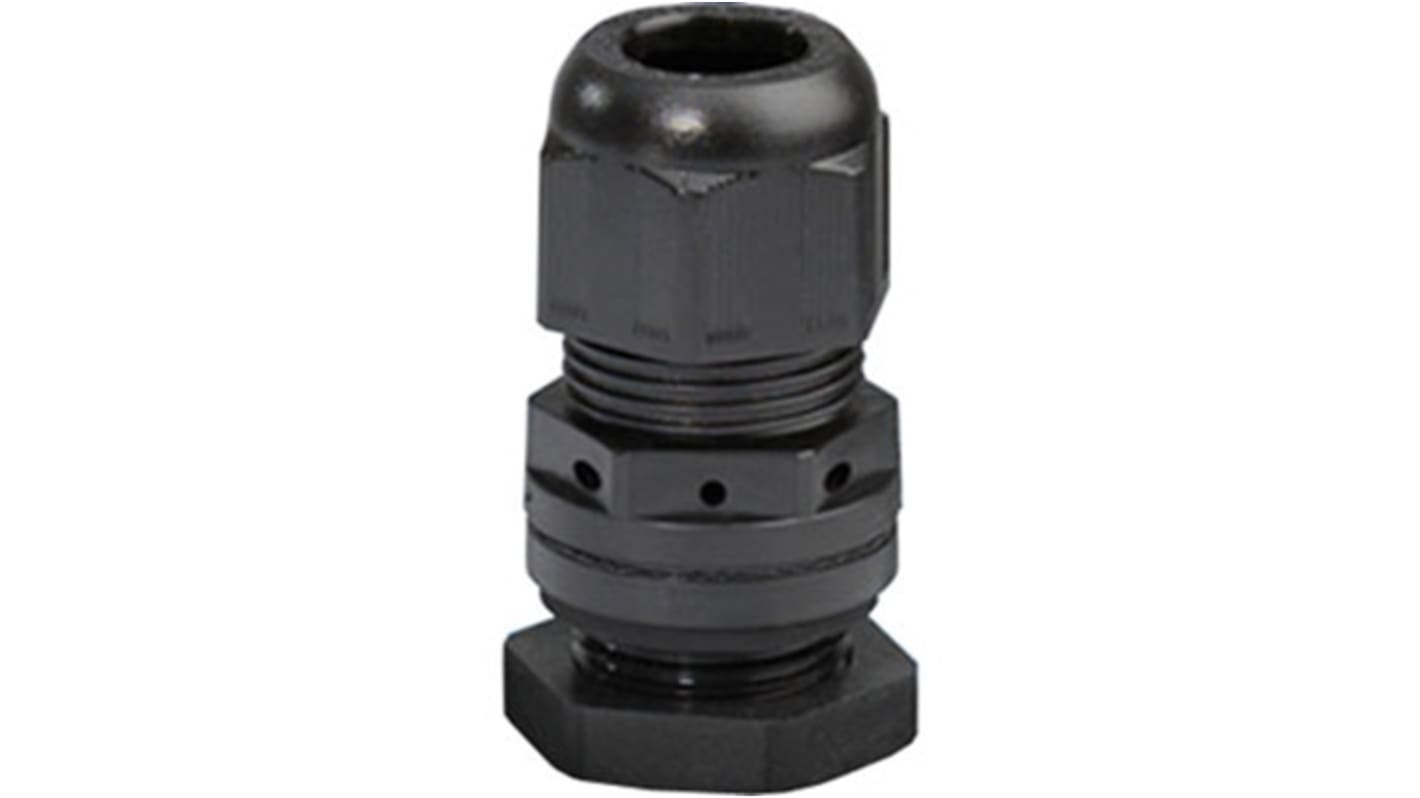

HENSEL KBS Series Black Polyamide Cable Gland, M40 x 1.5 Thread, 16 mm min., 28 mm max., IP67, IP65

RS Stock No.:: 117-211
Mfr. Part No.:: KBS 40
Manufacturer:: HENSEL

HENSEL KBS Series Black Polyamide Cable Gland, M40 x 1.5 Thread, 16 mm min., 28 mm max., IP67, IP65

Subtotal (1 unit)*

MYR382.63

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 +	MYR382.63

*price indicative

RS Stock No.:: 117-211
Mfr. Part No.:: KBS 40
Manufacturer:: HENSEL

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	HENSEL
	Product Type	Cable Gland
	Thread Size	M40 x 1.5
	Maximum Cable Diameter	28mm
	Minimum Cable Diameter	16mm
	Material	Polyamide
	Colour	Black
	Series	KBS
	IP Rating	IP67, IP65
	Locknut Included	Yes
	Hazardous Area Certification	NO
	Maximum Operating Temperature	70°C
	Minimum Operating Temperature	-25°C
	Standards/Approvals	No

	Select all
	Brand HENSEL
	Product Type Cable Gland
	Thread Size M40 x 1.5
	Maximum Cable Diameter 28mm
	Minimum Cable Diameter 16mm
	Material Polyamide
	Colour Black
	Series KBS
	IP Rating IP67, IP65
	Locknut Included Yes
	Hazardous Area Certification NO
	Maximum Operating Temperature 70°C
	Minimum Operating Temperature -25°C
	Standards/Approvals No

Datasheet - KBS 40

The Hensel Cable Gland is perfect for outdoor installation in harsh environments. It features a sealing range of diameter 16 to 28 mm, ISO thread M 40 x 1.5. With a tightening torque of 6.0 Nm, this gland ensures a secure and reliable cable entry solution for a variety of applications.

IP66 and IP67 protection rated

Flame retardant design

Halogen free and silicone free

Self extinguishing material

HENSEL KBS Series Black Polyamide Cable Gland, M40 x 1.5 Thread, 16 mm min., 28 mm max., IP67, IP65
