DiodesZetex Bridge Rectifier, 1000 V 280 A, 4-Pin Single

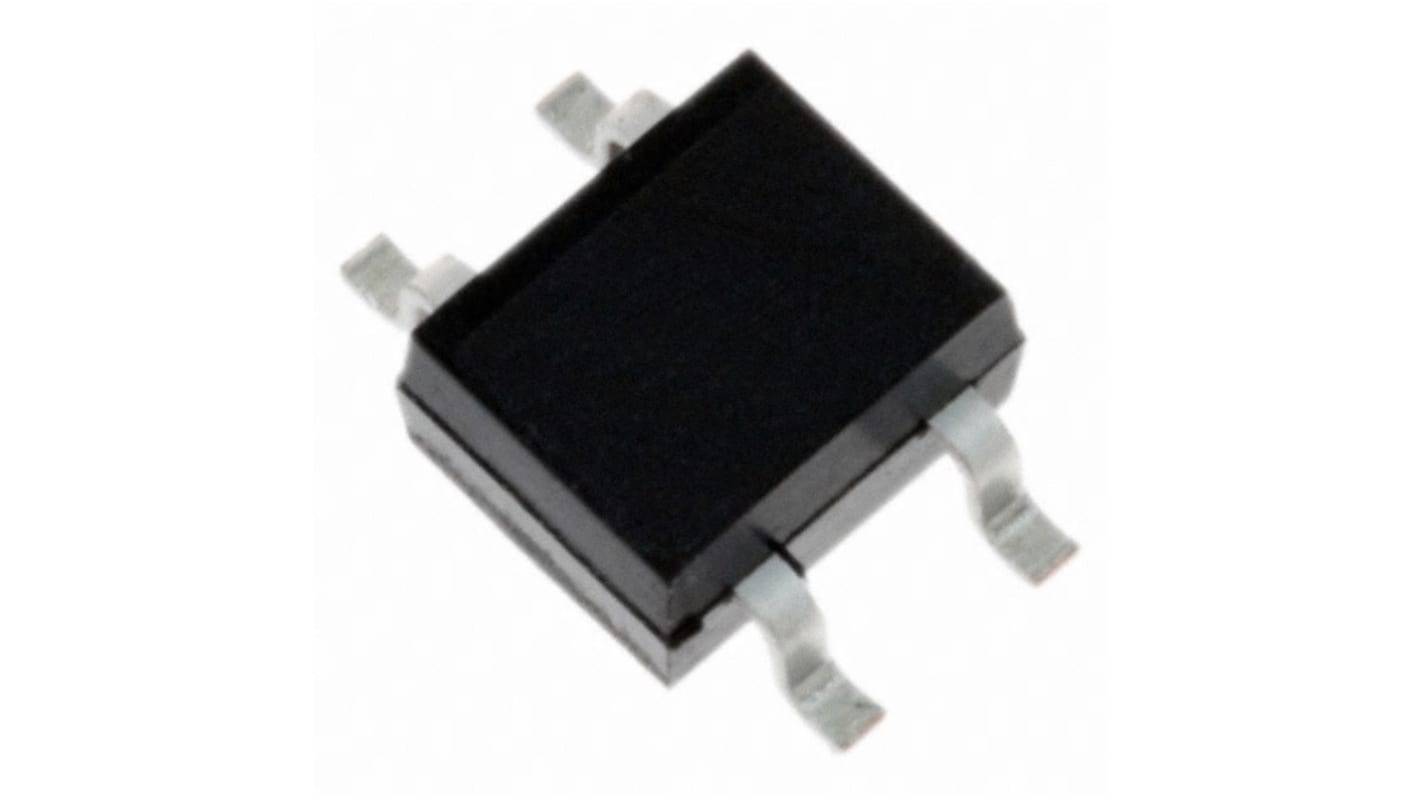

This image is representative of the product range

View all Bridge Rectifiers
Bulk discount available

Subtotal (1 pack of 25 units)*

MYR71.50

Add to Basket
Select or type quantity
In Stock
  • 1,500 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
25 - 600MYR2.86MYR71.50
625 - 1225MYR2.803MYR70.08
1250 +MYR2.502MYR62.55

*price indicative

Packaging Options:
RS Stock No.:
213-9264
Mfr. Part No.:
HBS610-13
Manufacturer:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

Bridge Rectifier

Peak Reverse Repetitive Voltage Vrrm

1000V

Mount Type

Surface

Number of Phases

1

Package Type

HBS

Pin Count

4

Configuration

Single

Maximum Operating Temperature

150°C

Minimum Operating Temperature

-55°C

Peak Non-Repetitive Forward Surge Current Ifsm

280A

Forward Current If

6A

Peak Forward Voltage Vf

0.96V

Width

5.7 mm

Peak Reverse Current Ir

100μA

Series

HBS

Standards/Approvals

RoHS

Automotive Standard

AEC-Q100

The DiodesZetex HBS610 series is a glass passivated bridge rectifier. It has high forward current capability up to 6.0A and forward voltage is 0.96V. It is used in AC-to-DC bridge full wave rectification for fast charging, switching power supply, USB PD,

High heat dissipation capability

Low profile package

Low forward voltage drop
