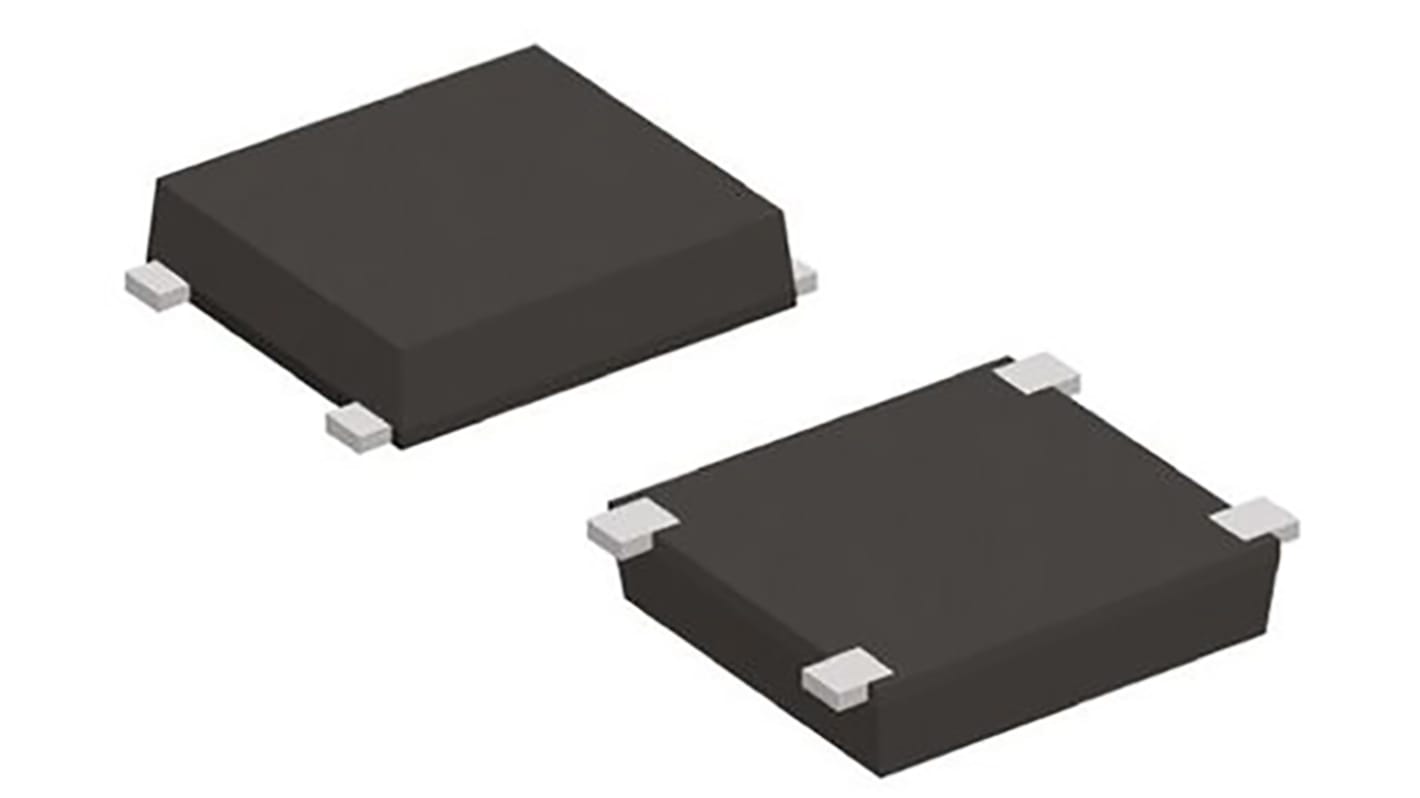

Diodes Inc Bridge Rectifier, 3A, 1000V, 4-Pin
- RS Stock No.:
- 146-4874
- Mfr. Part No.:
- MSB30M-13
- Manufacturer:
- DiodesZetex
100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Pack of 10)
MYR2.252
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 620 | MYR2.252 | MYR22.52 |
| 630 - 1240 | MYR2.139 | MYR21.39 |
| 1250 + | MYR2.032 | MYR20.32 |
*price indicative
- RS Stock No.:
- 146-4874
- Mfr. Part No.:
- MSB30M-13
- Manufacturer:
- DiodesZetex
Technical data sheets
Legislation and Compliance
Product Details
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bridge Rectifiers - Diodes Inc
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Specifications
Attribute | Value |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 3A |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Surface Mount |
| Package Type | MSBL |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 100A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 6.7mm |
| Dimensions | 6.7 x 7.4 x 1.42mm |
| Height | 1.42mm |
| Width | 7.4mm |
