Units	Per Unit	Per Pack**
25 - 600	MYR1.343	MYR33.575
625 - 1225	MYR1.176	MYR29.40
1250 +	MYR1.09	MYR27.25

Select all	Attribute	Value
	Brand	DiodesZetex
	Transistor Type	NPN
	Maximum DC Collector Current	600 mA
	Maximum Collector Emitter Voltage	160 V
	Package Type	SOT-223
	Mounting Type	Surface Mount
	Maximum Power Dissipation	1 W
	Minimum DC Current Gain	80
	Transistor Configuration	Single
	Maximum Collector Base Voltage	180 V
	Maximum Emitter Base Voltage	6 V
	Maximum Operating Frequency	300 MHz
	Pin Count	3 + Tab
	Number of Elements per Chip	1
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-55 °C
	Dimensions	6.55 x 3.55 x 1.65mm

	Select all
	Brand DiodesZetex
	Transistor Type NPN
	Maximum DC Collector Current 600 mA
	Maximum Collector Emitter Voltage 160 V
	Package Type SOT-223
	Mounting Type Surface Mount
	Maximum Power Dissipation 1 W
	Minimum DC Current Gain 80
	Transistor Configuration Single
	Maximum Collector Base Voltage 180 V
	Maximum Emitter Base Voltage 6 V
	Maximum Operating Frequency 300 MHz
	Pin Count 3 + Tab
	Number of Elements per Chip 1
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -55 °C
	Dimensions 6.55 x 3.55 x 1.65mm

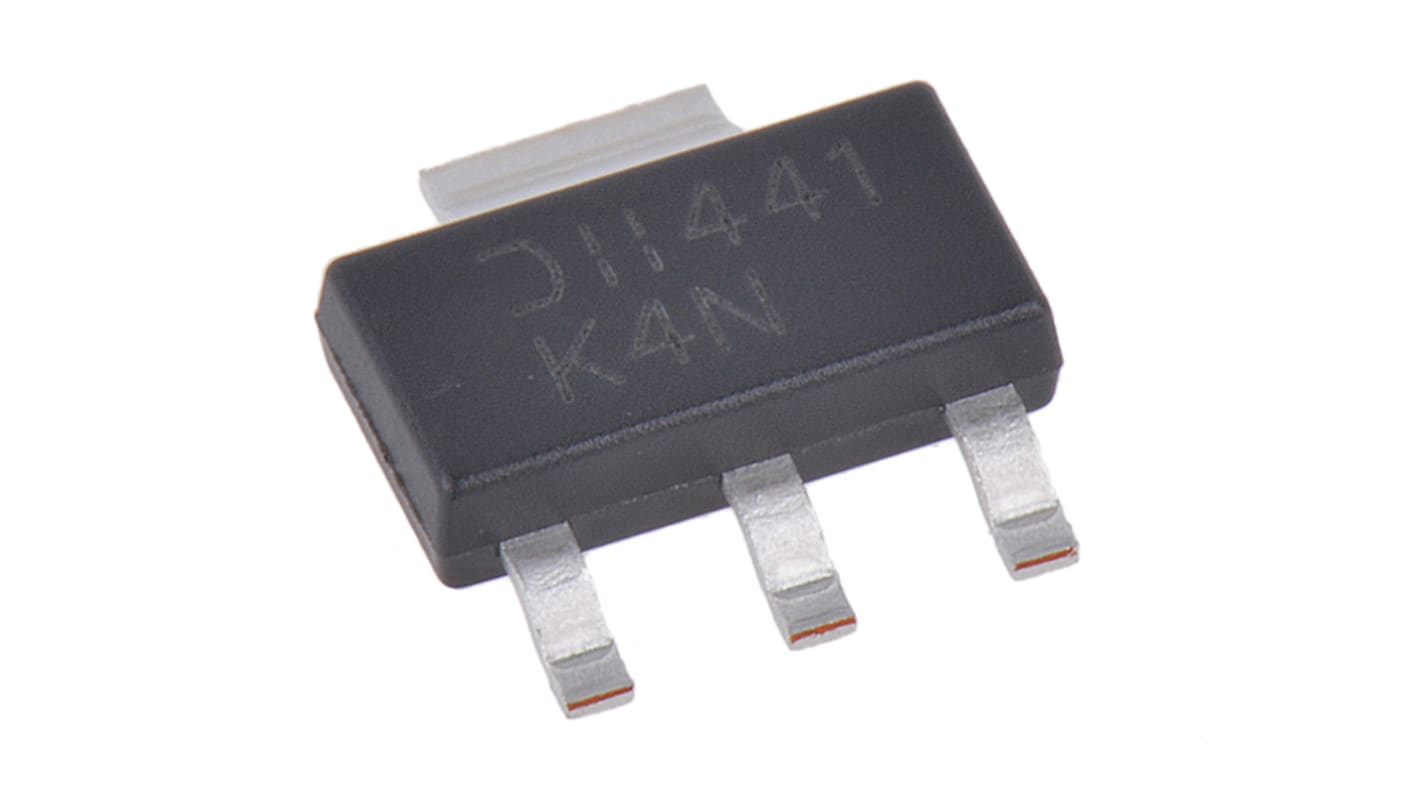

Diodes Inc DZT5551-13 NPN Transistor, 600 mA, 160 V, 3 + Tab-Pin SOT-223

FREE delivery for orders over MYR500.00

General Purpose NPN Transistors, Up to 1.5A, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
