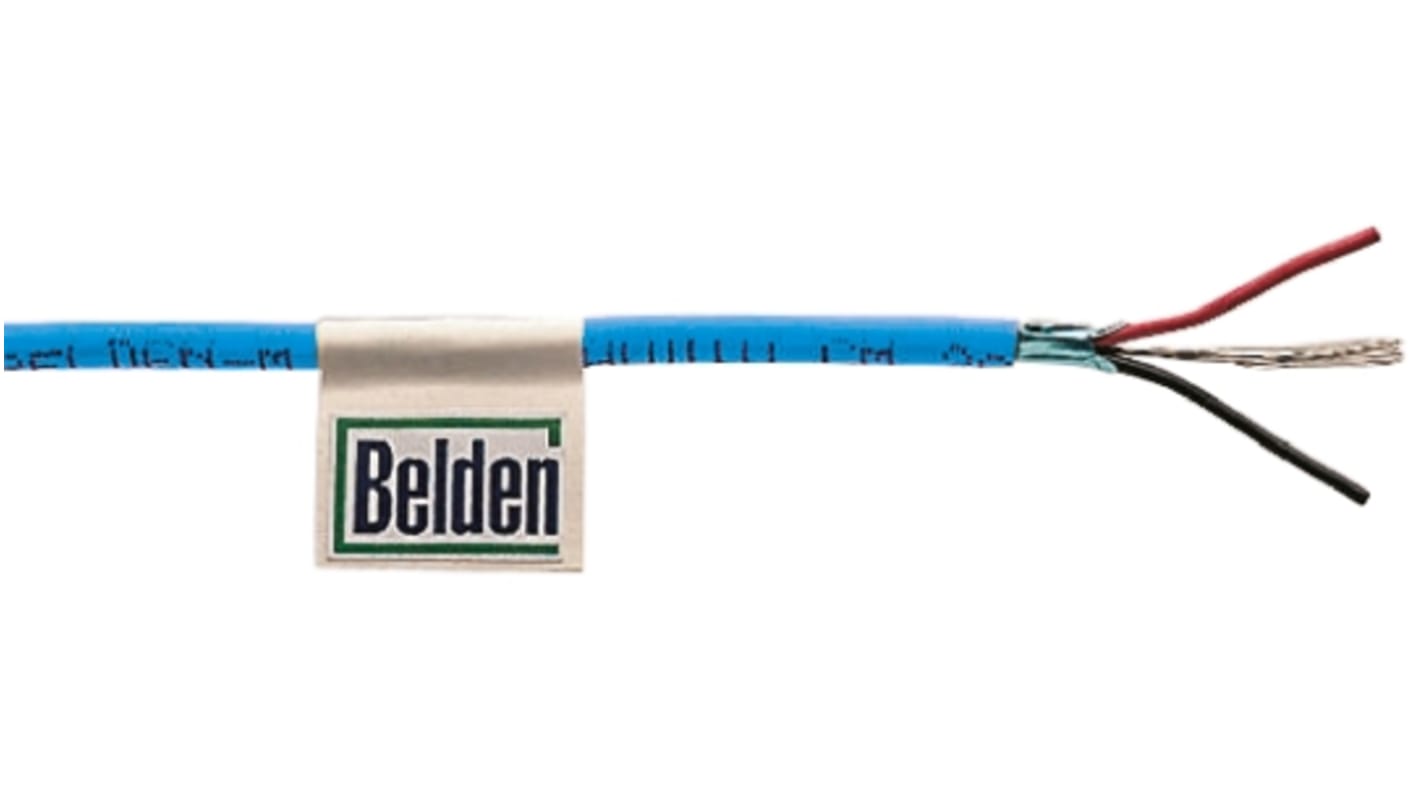

    Belden1503A Series 2 Core Line level Low Voltage signal Cable, 0.33 mm² CSA Screened, 3.61mm od, 304m, Blue

    View all Audio Cable

    Subtotal (1 reel of 304 metres)**

    MYR2,398.41

    Add to Basket
    Select or type quantity
    1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Reel(s)
    Per Reel
    Per Metre**
    1 +MYR2,398.41MYR7.89

    **price indicative

    RS Stock No.:
    209-1250
    Mfr. Part No.:
    1503A 006U1000
    Manufacturer:
    Belden
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Belden

    Audio Cable Type

    Line level Low Voltage signal Cable

    Number of Cores

    2

    Cross Sectional Area

    0.33 mm²

    Screened/Unscreened

    Screened

    Insulation Material

    PVC

    Outer Diameter

    3.61mm

    Length

    304m

    CPR Certification

    Eca

    Minimum Operating Temperature

    -30°C

    Maximum Operating Temperature

    +90°C

    Sheath Colour

    Blue

    American Wire Gauge

    22 AWG

    Conductor Material

    Copper

    Core Strands

    7/30

    Conductor Strand Type

    Stranded

    Series

    1503A

    Conductor Resistance

    48.228348 Ω/km

    Sheath Material

    PVC

    Characteristic Impedance

    38 Ω

    Cable Shape

    Multicore

    Current Rating

    2.9 A

    Number of Strands

    7

    Capacitance Core To Core

    173.84pF/m

    Voltage Rating

    300 V

    Drain Wire

    Yes

    Capacitance Core To Screen

    318.16pF/m

    Screen Type

    Aluminium/PET Foil
