Select all	Attribute	Value
	Brand	Belden
	Audio Cable Type	Line level Low Voltage signal Cable
	Number of Cores	2
	Cross Sectional Area	0.35 mm²
	Insulation Material	PE
	Outer Diameter	4.27mm
	Length	152m
	CPR Certification	Eca
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	+60°C
	Fire Behaviour	Flame Retardant
	Sheath Colour	Grey
	American Wire Gauge	22 AWG
	Standards Met	Euroclass Eca
	Sheath Material	PVC
	Current Rating	3 A per conductor @ 25°C
	Conductor Strand Type	Solid
	Series	8795
	Voltage Rating	300 V
	Conductor Material	Bare Copper
	Cable Shape	Multicore

	Select all
	Brand Belden
	Audio Cable Type Line level Low Voltage signal Cable
	Number of Cores 2
	Cross Sectional Area 0.35 mm²
	Insulation Material PE
	Outer Diameter 4.27mm
	Length 152m
	CPR Certification Eca
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature +60°C
	Fire Behaviour Flame Retardant
	Sheath Colour Grey
	American Wire Gauge 22 AWG
	Standards Met Euroclass Eca
	Sheath Material PVC
	Current Rating 3 A per conductor @ 25°C
	Conductor Strand Type Solid
	Series 8795
	Voltage Rating 300 V
	Conductor Material Bare Copper
	Cable Shape Multicore

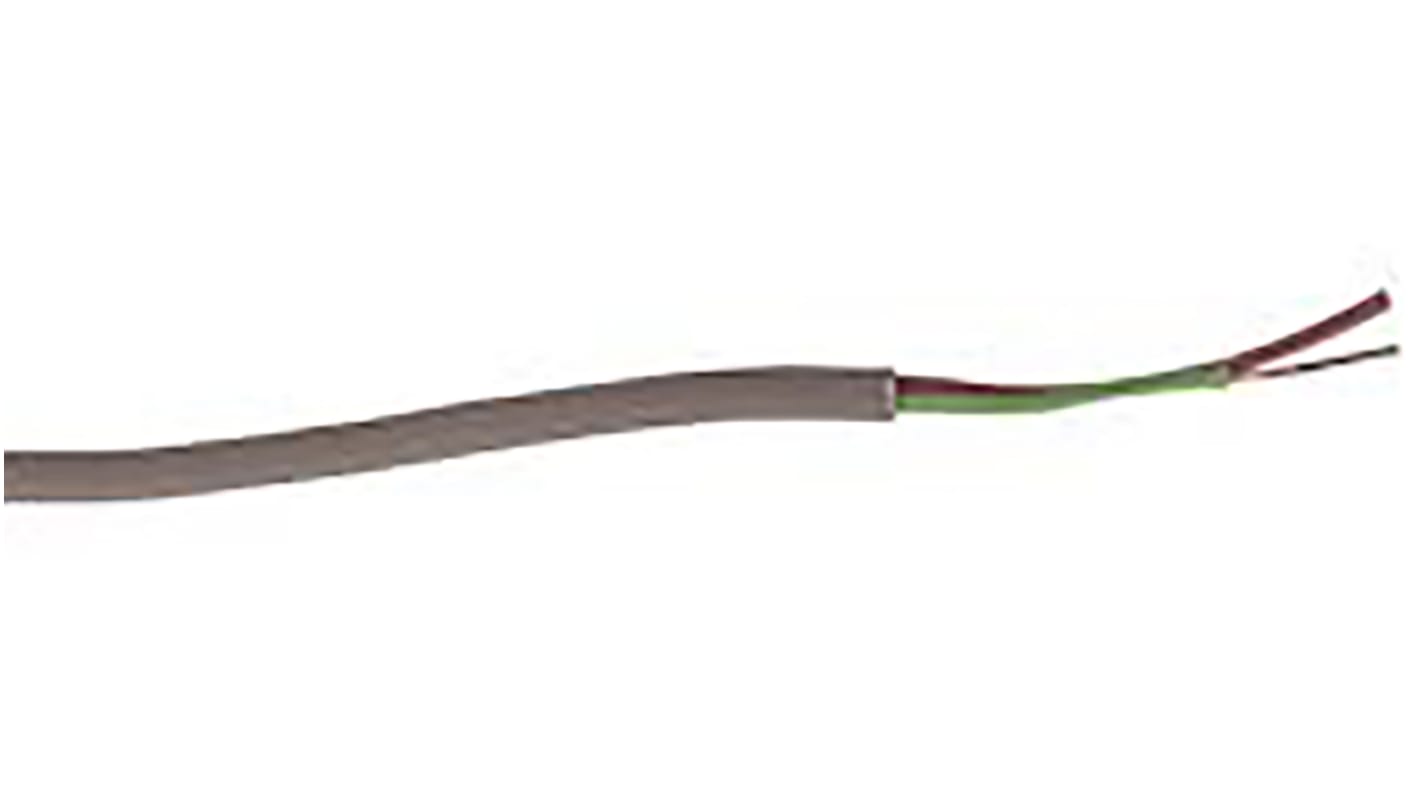

Belden8795 Series 2 Core Line level Low Voltage signal Cable, 0.35 mm² CSA, 4.27mm od, 152m, Grey

FREE delivery for orders over MYR500.00

Belden 8795
