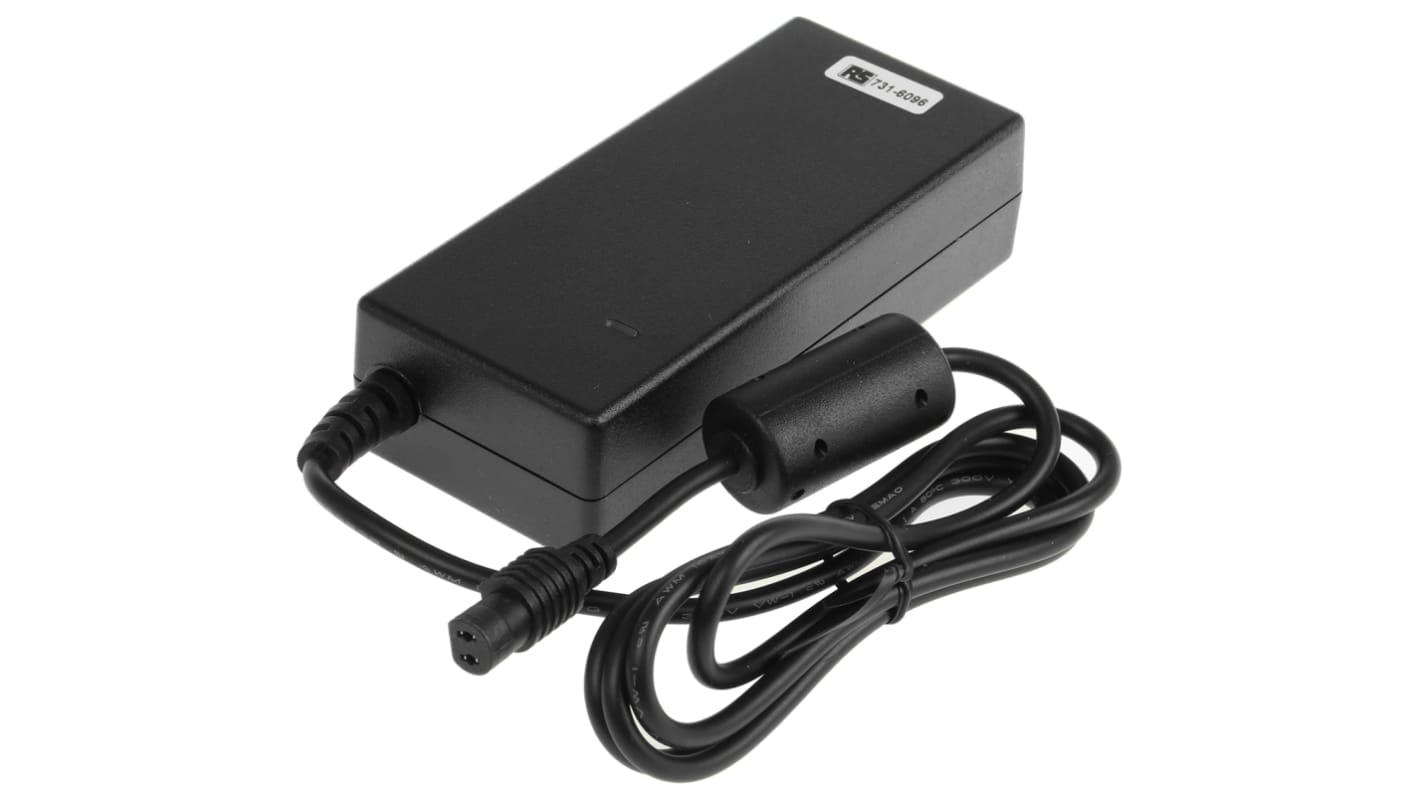

RS PRO 75W Plug-In AC/DC Adapter 24V dc Output, 3.125A Output
- RS Stock No.:
- 731-6096
- Manufacturer:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
MYR445.90
- RS Stock No.:
- 731-6096
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | C8 | |
| Output Voltage | 24V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 3.125A | |
| Maximum Temperature | +40°C | |
| Output Connector | 1.75 x 4.75 x 11 mm Centre Positive Female Coaxial Plug, 2.1 x 5.5 x 10.5 mm Centre Positive Female Coaxial Plug, 2.5 x 5.5 x 12.5 mm Centre Positive Female Coaxial Plug, 3 x 6.3 x 12 mm Centre Positive Female Coaxial Plug | |
| Input Connector | IEC 320-C8 | |
| Number of Outputs | 1 | |
| Power Rating | 75W | |
| Cable Length | 1200mm | |
| Efficiency | 87% | |
| MTBF | 30000h | |
| Standards Met | ErP Compliant | |
| Load Regulation | ±5% | |
| Energy Efficiency Level | V | |
| Minimum Temperature | 0°C | |
| Width | 50mm | |
| Line Regulation Range | ±1% | |
| Depth | 30mm | |
| Length | 116mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type C8 | ||
Output Voltage 24V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 3.125A | ||
Maximum Temperature +40°C | ||
Output Connector 1.75 x 4.75 x 11 mm Centre Positive Female Coaxial Plug, 2.1 x 5.5 x 10.5 mm Centre Positive Female Coaxial Plug, 2.5 x 5.5 x 12.5 mm Centre Positive Female Coaxial Plug, 3 x 6.3 x 12 mm Centre Positive Female Coaxial Plug | ||
Input Connector IEC 320-C8 | ||
Number of Outputs 1 | ||
Power Rating 75W | ||
Cable Length 1200mm | ||
Efficiency 87% | ||
MTBF 30000h | ||
Standards Met ErP Compliant | ||
Load Regulation ±5% | ||
Energy Efficiency Level V | ||
Minimum Temperature 0°C | ||
Width 50mm | ||
Line Regulation Range ±1% | ||
Depth 30mm | ||
Length 116mm | ||
- COO (Country of Origin):
- CN
RS PRO 24 V DC Power Supply, 75 W, 3.125 A, C8 Connector
This RS PRO switch-mode power supply (SMPS) uses a capacitor to convert AC inputs to a 24 V DC output. It consumes little energy while providing 75 W of continuous power to your equipment.
The unit has four interchangeable DC plugs and a standard C8 connection, so it works with a range of devices. It suits most devices and regions thanks to its wide input range of 100 to 240 V AC. To ensure safety, this SMPS protects against overcurrent, overvoltage, overload and short-circuits.
The unit has four interchangeable DC plugs and a standard C8 connection, so it works with a range of devices. It suits most devices and regions thanks to its wide input range of 100 to 240 V AC. To ensure safety, this SMPS protects against overcurrent, overvoltage, overload and short-circuits.
Features and Benefits
• Four centre positive female coaxial plugs (1.75 x 4.75 x 11 mm, 2.1 x 5.5 x 10.5 mm, 2.5 x 5.5 x 12.5 mm, 3 x 6.3 x 12 mm)
• IEC 320-C8 input connector
• Input frequency range of 50 to 60 Hz
• Maximum input current of 1.25 A
• Cable length of 1.2 m
• Output current range of 3.125 A
• Line regulation range of +1%
• Load regulation range of +5%
• Ripple and noise of +2%
• Efficiency of 87%
• Holdup time of 8.3 ms
• Desktop mounting type
• Single output
• MTBF of 30000 h
• Operating temperature range of 0°C to +40°C
• Dimensions of 116 (L) x 50 (W) x 30 mm (D)
• Weight of 290 g
• IEC 320-C8 input connector
• Input frequency range of 50 to 60 Hz
• Maximum input current of 1.25 A
• Cable length of 1.2 m
• Output current range of 3.125 A
• Line regulation range of +1%
• Load regulation range of +5%
• Ripple and noise of +2%
• Efficiency of 87%
• Holdup time of 8.3 ms
• Desktop mounting type
• Single output
• MTBF of 30000 h
• Operating temperature range of 0°C to +40°C
• Dimensions of 116 (L) x 50 (W) x 30 mm (D)
• Weight of 290 g
