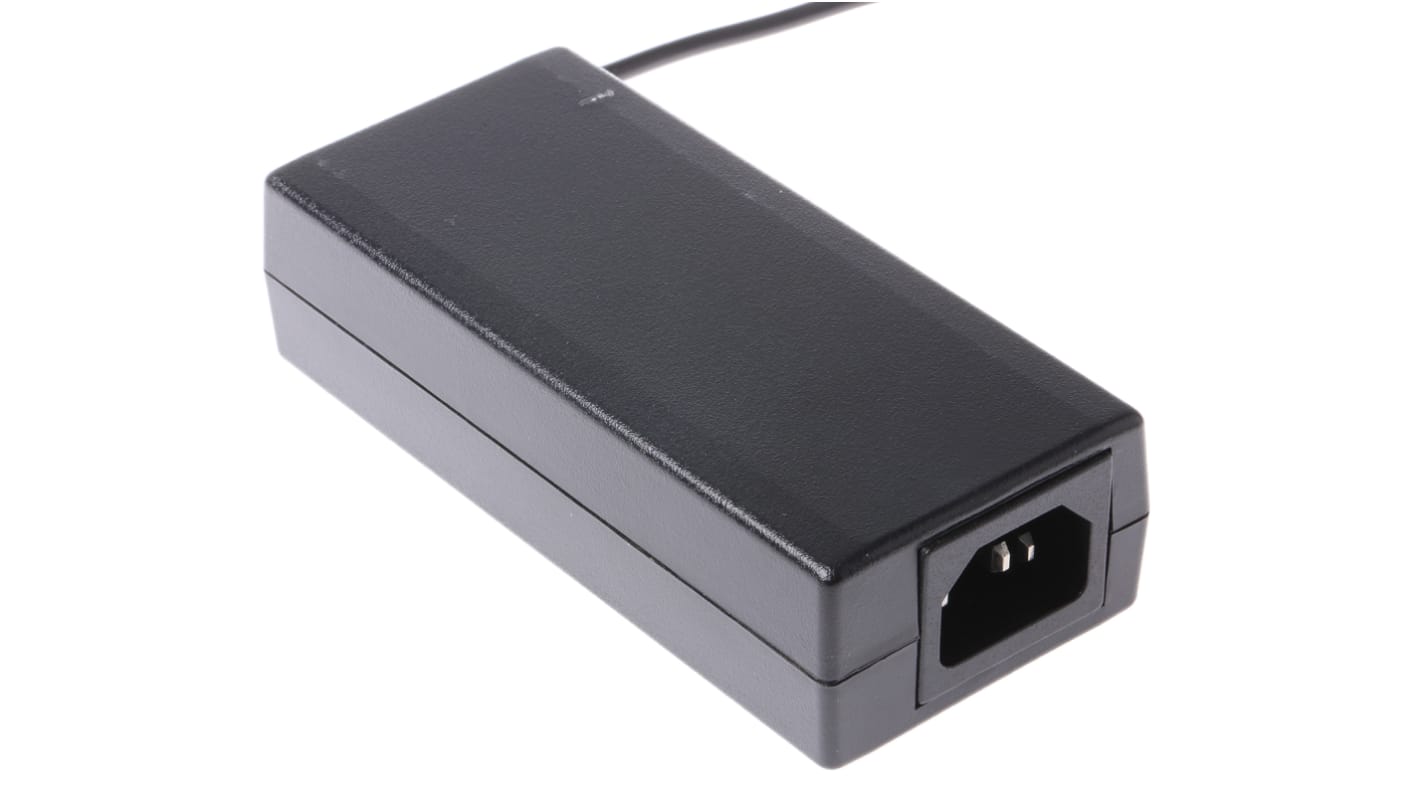

EOS 60 W AC-DC Converter Power Supplies AC/DC Adapter 12V dc Output, 5 A

RS Stock No.:: 668-9261
Mfr. Part No.:: LFZVC60NP12E4
Manufacturer:: EOS

EOS 60 W AC-DC Converter Power Supplies AC/DC Adapter 12V dc Output, 5 A

View all AC/DC Adapters

Bulk discount available

Subtotal (1 unit)*

MYR424.96

FREE delivery for orders over RM 500.00

Being discontinued

35 left, ready to ship from another location
Final 100 unit(s) shipping from 26 August 2026

Units	Per Unit
1 - 9	MYR424.96
10 - 49	MYR413.05
50 +	MYR396.02

*price indicative

RS Stock No.:: 668-9261
Mfr. Part No.:: LFZVC60NP12E4
Manufacturer:: EOS

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EOS
	Sub Type	AC-DC Converter Power Supplies
	Product Type	AC/DC Adapter
	Output Voltage	12V dc
	Power	60W
	Output Connector Type	Jack
	Cable Length	1200mm
	Number of Outputs	1
	Regulated/Unregulated	Regulated
	Minimum Operating Temperature	0°C
	Adapter Current	5A
	Input Connector Type	IEC 320-C14
	Maximum Operating Temperature	50°C
	Depth	31.5mm
	Width	53mm
	Standards/Approvals	ErP Compliant
	Length	117mm
	Maximum Input Voltage	264V ac
	Efficiency	85%
	Energy Efficiency Level	V
	Minimum Input Voltage	100V ac
	Load Regulation	5 %
	Series	LFZVC60

	Select all
	Brand EOS
	Sub Type AC-DC Converter Power Supplies
	Product Type AC/DC Adapter
	Output Voltage 12V dc
	Power 60W
	Output Connector Type Jack
	Cable Length 1200mm
	Number of Outputs 1
	Regulated/Unregulated Regulated
	Minimum Operating Temperature 0°C
	Adapter Current 5A
	Input Connector Type IEC 320-C14
	Maximum Operating Temperature 50°C
	Depth 31.5mm
	Width 53mm
	Standards/Approvals ErP Compliant
	Length 117mm
	Maximum Input Voltage 264V ac
	Efficiency 85%
	Energy Efficiency Level V
	Minimum Input Voltage 100V ac
	Load Regulation 5 %
	Series LFZVC60

ZVC60NP Series Single output 60 AC/DC External Adapters Data Sheet

EOS 36W to 180W Single Output Switch Mode Desktop Power Supply - ZVC Series

36 to 180W energy saving switch mode single output desktop power supply with universal input and compact design. This energy saving switch mode single output desktop power supply is ideal for laptops and multimedia, industrial, networking and printing applications. This range of desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.

Ultra miniature and lightweight switch mode power supply

Universal input

High efficiency, no load standby power < 0.5W

Fully regulated and protected output

EMI/RFI filter to EN55022-B, FCC2/15-B, CISPR22-B

Types ZVC36 to ZVC72 are fitted with a 1.2m output lead with right angled jack plug (I/D 2.54 x O/D 5.54 x L 9.5mm, centre pin positive)

Types ZVC150 & ZVC180 are fitted with a 1.2m output lead with a 4 pin DIN connector, for suitable mating connectors use stk nos 667-7283 and 667-7287

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Current derates to 75% at 50°C

Approvals

UL, CSA

Standards

UL, TUV, EN60950-1
