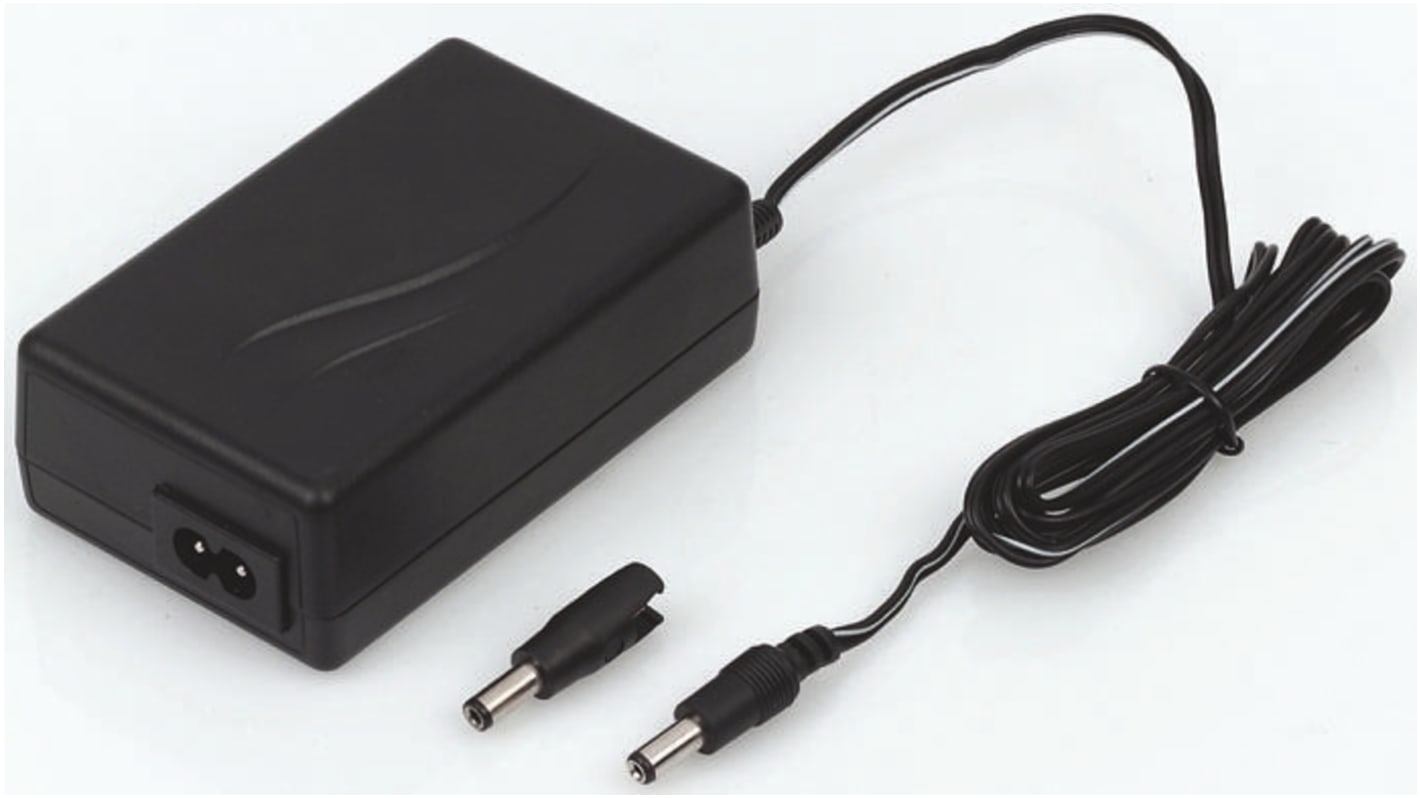

Mascot 40W Power Brick AC/DC Adapter 9V dc Output, 3A Output

RS Stock No.:: 423-7896
Mfr. Part No.:: 9921000054
Manufacturer:: Mascot

Mascot 40W Power Brick AC/DC Adapter 9V dc Output, 3A Output

This image is representative of the product range

4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Price Each

MYR382.63

Units	Per Unit
1 - 9	MYR382.63
10 - 49	MYR375.95
50 +	MYR366.21

RS Stock No.:: 423-7896
Mfr. Part No.:: 9921000054
Manufacturer:: Mascot

UL E208102
9920-9921-9922 Switch Mode PSU Data Sheet

Attribute	Value
Adapter Type	Power Brick Adapter
Plug Type	2-Pin IEC
Output Voltage	9V dc
Input Voltage	100 → 240V ac
Output Current	3A
Maximum Temperature	+40°C
Output Connector	2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock
Input Connector	IEC 320
Number of Outputs	1
Power Rating	40W
Cable Length	1800mm
Medical Approved	Yes
MTBF	100000h
Efficiency	85%
Load Regulation	±1%
Depth	36.5mm
Minimum Temperature	-20°C
Line Regulation Range	±0.5%
Length	107mm
Width	67mm

Mascot 40W Power Brick AC/DC Adapter 9V dc Output, 3A Output

Mascot 9W to 60W Medical Approved Single Output Switch Mode Desktop Power Supply

Note

Standards

Approvals

Supplied with
