Units	Per Unit	Per Pack**
100 - 700	MYR0.635	MYR63.50
800 - 1400	MYR0.612	MYR61.20
1500 +	MYR0.582	MYR58.20

Select all	Attribute	Value
	Brand	DiodesZetex
	Regulator Type	Low Dropout Voltage
	Maximum Output Current	300mA
	Output Voltage	3.3 V
	Number of Outputs	1
	Line Regulation	12 mV
	Load Regulation	30 mV
	Accuracy	±2%
	Polarity	Positive
	Mounting Type	Surface Mount
	Quiescent Current	100µA
	Package Type	SOT-23
	Pin Count	5
	Output Type	Fixed
	Dimensions	3.02 x 1.7 x 1.3mm
	Minimum Operating Temperature	-40 °C
	Height	1.3mm
	Minimum Input Voltage	2.5 V
	Maximum Input Voltage	13.2 V
	Maximum Operating Temperature	+125 °C
	Length	3.02mm
	Width	1.7mm

	Select all
	Brand DiodesZetex
	Regulator Type Low Dropout Voltage
	Maximum Output Current 300mA
	Output Voltage 3.3 V
	Number of Outputs 1
	Line Regulation 12 mV
	Load Regulation 30 mV
	Accuracy ±2%
	Polarity Positive
	Mounting Type Surface Mount
	Quiescent Current 100µA
	Package Type SOT-23
	Pin Count 5
	Output Type Fixed
	Dimensions 3.02 x 1.7 x 1.3mm
	Minimum Operating Temperature -40 °C
	Height 1.3mm
	Minimum Input Voltage 2.5 V
	Maximum Input Voltage 13.2 V
	Maximum Operating Temperature +125 °C
	Length 3.02mm
	Width 1.7mm

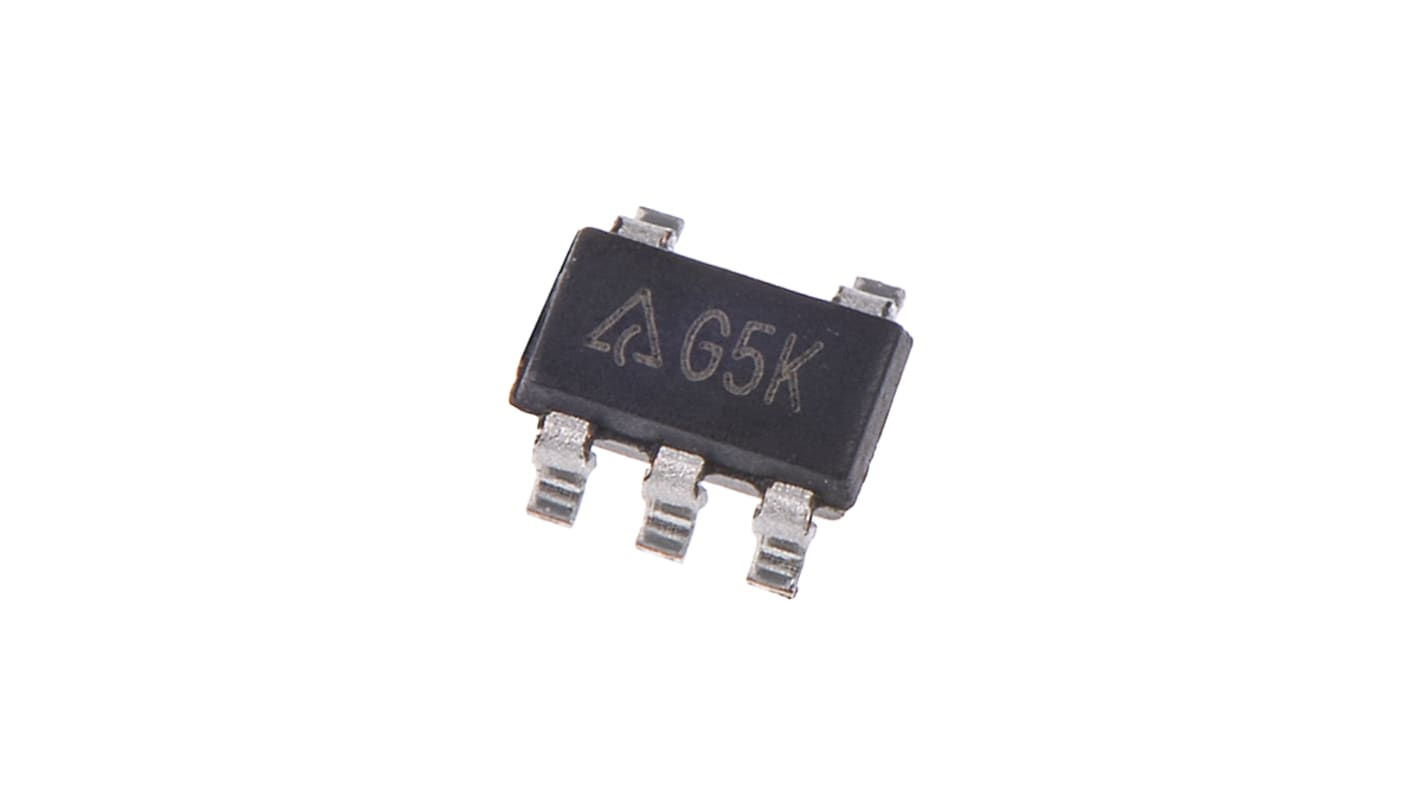

DiodesZetex AP2210K-3.3TRG1, 1 Low Dropout Voltage, Voltage Regulator 300mA, 3.3 V 5-Pin, SOT-23

FREE delivery for orders over MYR500.00

LDO (Low Dropout) Linear Voltage Regulators, 3.3V Output, Diodes Inc
