STMicroelectronics L7805ACP, 1-Channel Linear Voltage, Voltage Regulator, 5V, TO-220FP 3-Pin

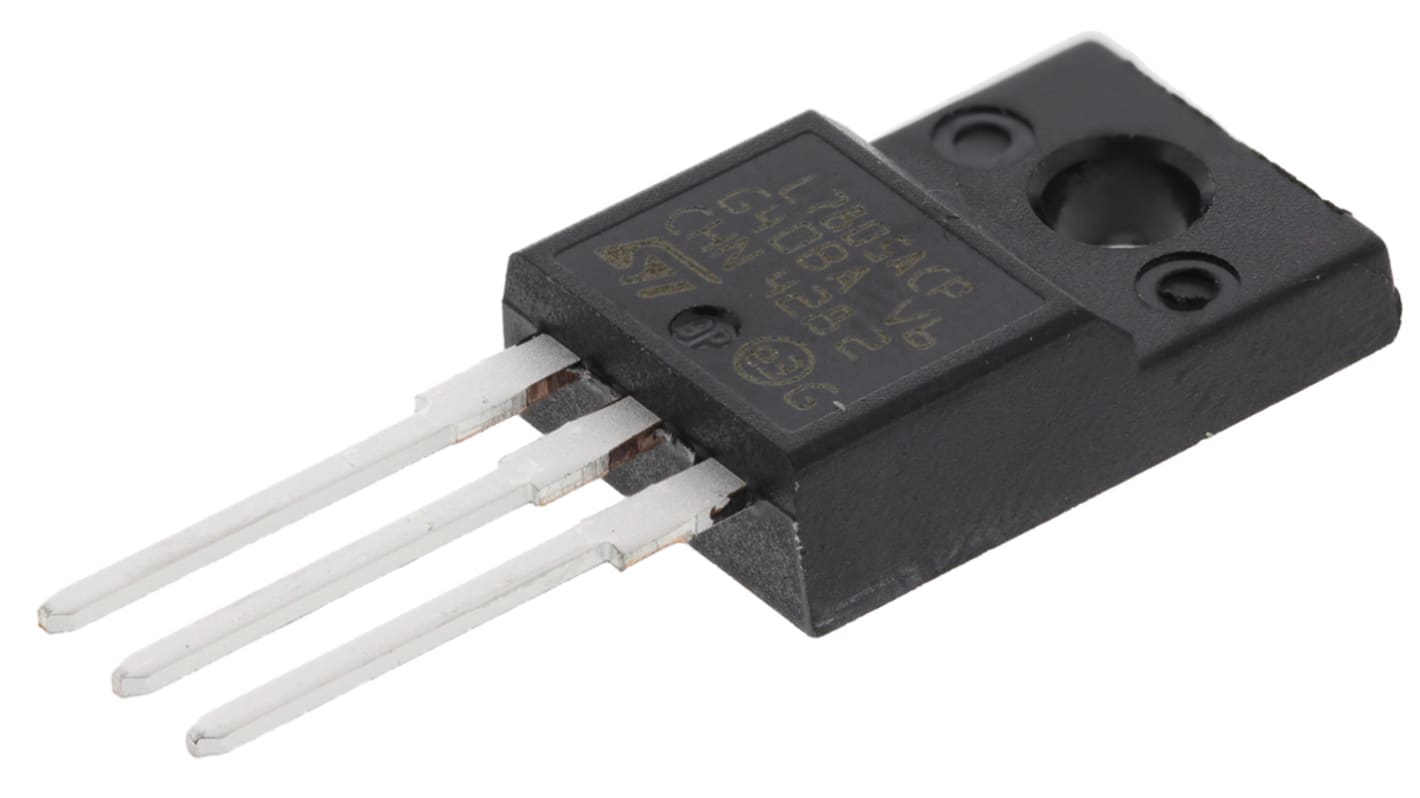

This image is representative of the product range

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
168-6587
Mfr. Part No.:
L7805ACP
Manufacturer:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Voltage Regulator

Regulator Type

Linear Voltage

Number of Outputs

1

Output Voltage

5V

Line Regulation

50 mV

Load Regulation

100 mV

Polarity

Positive

Mount Type

Through Hole

Quiescent Current

4.3mA

Package Type

TO-220FP

Pin Count

3

Output Type

Fixed

Width

4.6mm

Length

10.4mm

Height

9.3mm

Series

L78xx

Maximum Operating Temperature

150°C

Maximum Input Voltage

35V

Minimum Operating Temperature

0°C

L78 Series Linear Voltage Regulator, STMicroelectronics


STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.

Features and Benefits


Output current up to 1.5 A

Thermal overload protection

Output transition SOA protection

Output current up to 1.5 A

Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;

24 V

Applications


Power Management

Linear Voltage Regulators, STMicroelectronics
