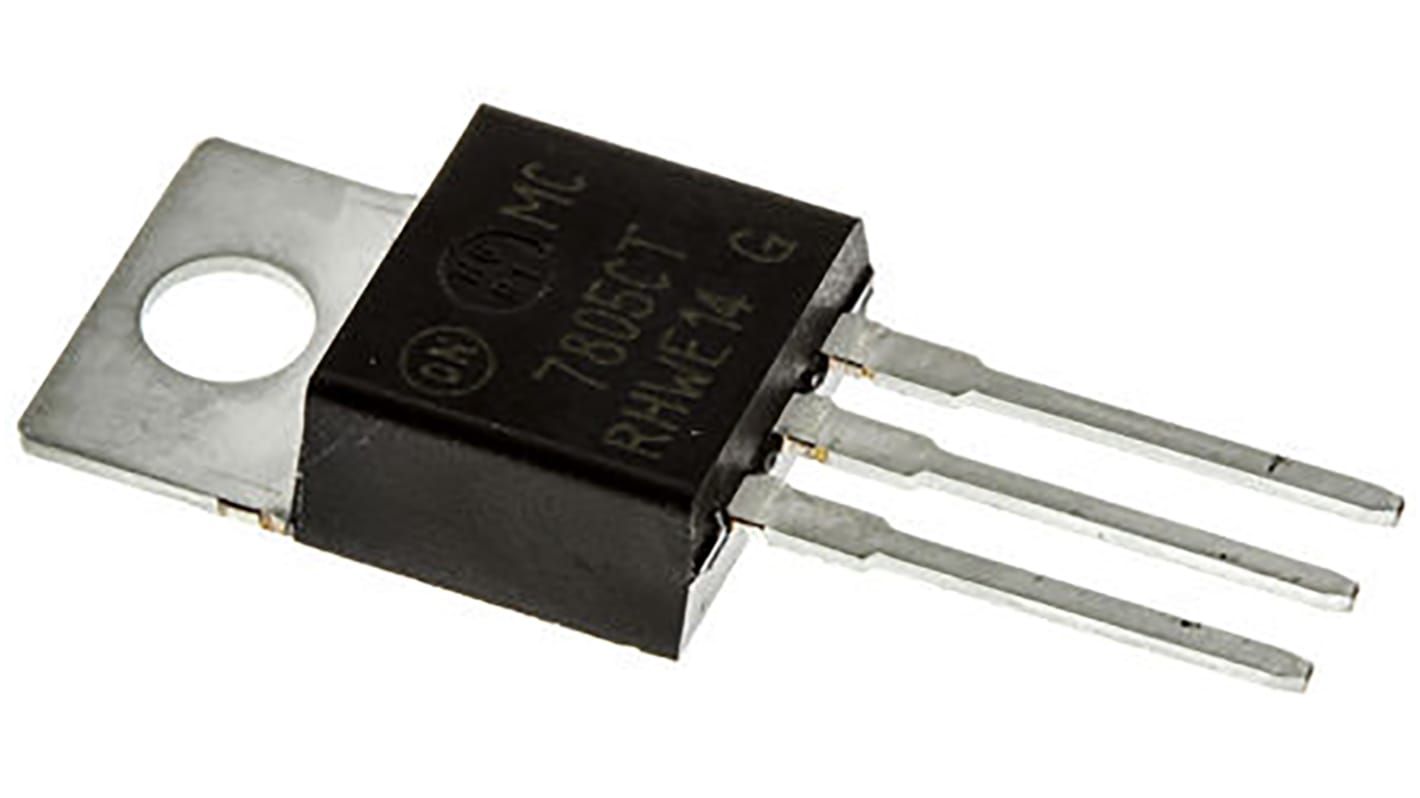

onsemi MC7805CTG, 5-Channel Linear, Voltage Regulator, 1 A, 5 V, TO-220 3-Pin
- RS Stock No.:
- 102-3488
- Distrelec Article No.:
- 304-37-284
- Mfr. Part No.:
- MC7805CTG
- Manufacturer:
- onsemi
Bulk discount available
Subtotal (1 tube of 50 units)*
MYR87.60
FREE delivery for orders over RM 500.00
In Stock
- Plus 300 unit(s) shipping from 26 January 2026
- Plus 500 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 50 - 50 | MYR1.752 | MYR87.60 |
| 100 - 150 | MYR1.715 | MYR85.75 |
| 200 - 450 | MYR1.664 | MYR83.20 |
| 500 - 950 | MYR1.623 | MYR81.15 |
| 1000 + | MYR1.587 | MYR79.35 |
*price indicative
- RS Stock No.:
- 102-3488
- Distrelec Article No.:
- 304-37-284
- Mfr. Part No.:
- MC7805CTG
- Manufacturer:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Regulator Type | Linear | |
| Product Type | Voltage Regulator | |
| Output Voltage | 5 V | |
| Number of Outputs | 5 | |
| Line Regulation | 20 mV | |
| Load Regulation | 25 mV | |
| Polarity | Positive | |
| Mount Type | Through Hole | |
| Quiescent Current | 3.2mA | |
| Package Type | TO-220 | |
| Pin Count | 3 | |
| Output Current | 1A | |
| Output Type | Fixed | |
| Switching Regulator | No | |
| Series | MC78xx | |
| Standards/Approvals | RoHS | |
| Height | 30.02mm | |
| Length | 10.28mm | |
| Width | 4.82 mm | |
| Maximum Input Voltage | 35V | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | 0°C | |
| Minimum Input Voltage | 5V | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Regulator Type Linear | ||
Product Type Voltage Regulator | ||
Output Voltage 5 V | ||
Number of Outputs 5 | ||
Line Regulation 20 mV | ||
Load Regulation 25 mV | ||
Polarity Positive | ||
Mount Type Through Hole | ||
Quiescent Current 3.2mA | ||
Package Type TO-220 | ||
Pin Count 3 | ||
Output Current 1A | ||
Output Type Fixed | ||
Switching Regulator No | ||
Series MC78xx | ||
Standards/Approvals RoHS | ||
Height 30.02mm | ||
Length 10.28mm | ||
Width 4.82 mm | ||
Maximum Input Voltage 35V | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature 0°C | ||
Minimum Input Voltage 5V | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- CZ
5V MC7805 Linear voltage regulator, ON Semiconductor
This remarkable ON Semiconductor 5-volt linear voltage regulator comes under the MC7805 family. These products are monolithic integrated circuits designed as fixed-voltage regulators for a wide range of applications including local, on-card regulation. The positive 7805 voltage regulator requires no external components and incorporates internal thermal overload protection and current limiting plus safe area compensation.
Linear Voltage Regulators, ON Semiconductor
