DiodesZetex Adjustable Shunt Voltage Reference ±1 % 3-Pin SOT-23, AZ431LBNTR-G1
- RS Stock No.:
- 921-0710
- Mfr. Part No.:
- AZ431LBNTR-G1
- Manufacturer:
- DiodesZetex

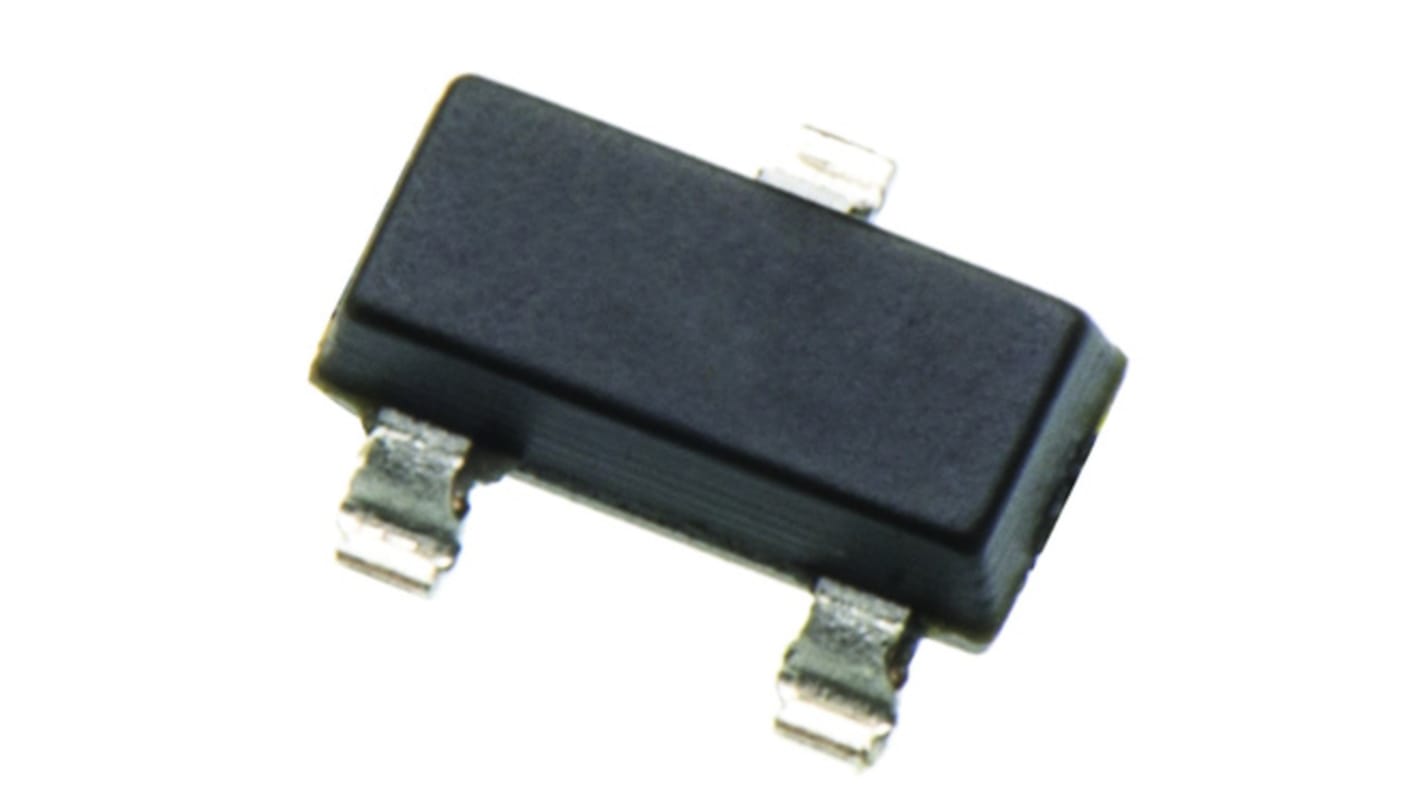

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 pack of 50 units)*
MYR49.50
FREE delivery for orders over RM 500.00
In Stock
- 9,150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 50 - 700 | MYR0.99 | MYR49.50 |
| 750 - 1450 | MYR0.969 | MYR48.45 |
| 1500 + | MYR0.94 | MYR47.00 |
*price indicative
- RS Stock No.:
- 921-0710
- Mfr. Part No.:
- AZ431LBNTR-G1
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Voltage Reference | |
| Package Type | SOT-23 | |
| Reference Voltage | 1.24V | |
| Reference Type | Adjustable | |
| Initial Accuracy | ±1 % | |
| Temperature Coefficient | 20 ppm/°C | |
| Mount Type | Surface | |
| Topology | Shunt | |
| Maximum Input Voltage | 18V | |
| Output Current | 100mA | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Series | AZ431L | |
| Length | 3mm | |
| Height | 1.1mm | |
| Minimum Input Voltage | 1.23V | |
| Automotive Standard | No | |
| Output Type | Programmable | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Voltage Reference | ||
Package Type SOT-23 | ||
Reference Voltage 1.24V | ||
Reference Type Adjustable | ||
Initial Accuracy ±1 % | ||
Temperature Coefficient 20 ppm/°C | ||
Mount Type Surface | ||
Topology Shunt | ||
Maximum Input Voltage 18V | ||
Output Current 100mA | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Series AZ431L | ||
Length 3mm | ||
Height 1.1mm | ||
Minimum Input Voltage 1.23V | ||
Automotive Standard No | ||
Output Type Programmable | ||
- COO (Country of Origin):
- CN
Adjustable Voltage Reference, Diodes Inc
Voltage References, Diodes Inc
