Diodes Inc Fixed Shunt Voltage Reference 4.096V ±1.0 % 3-Pin SOT-23, ZR40401F41TA

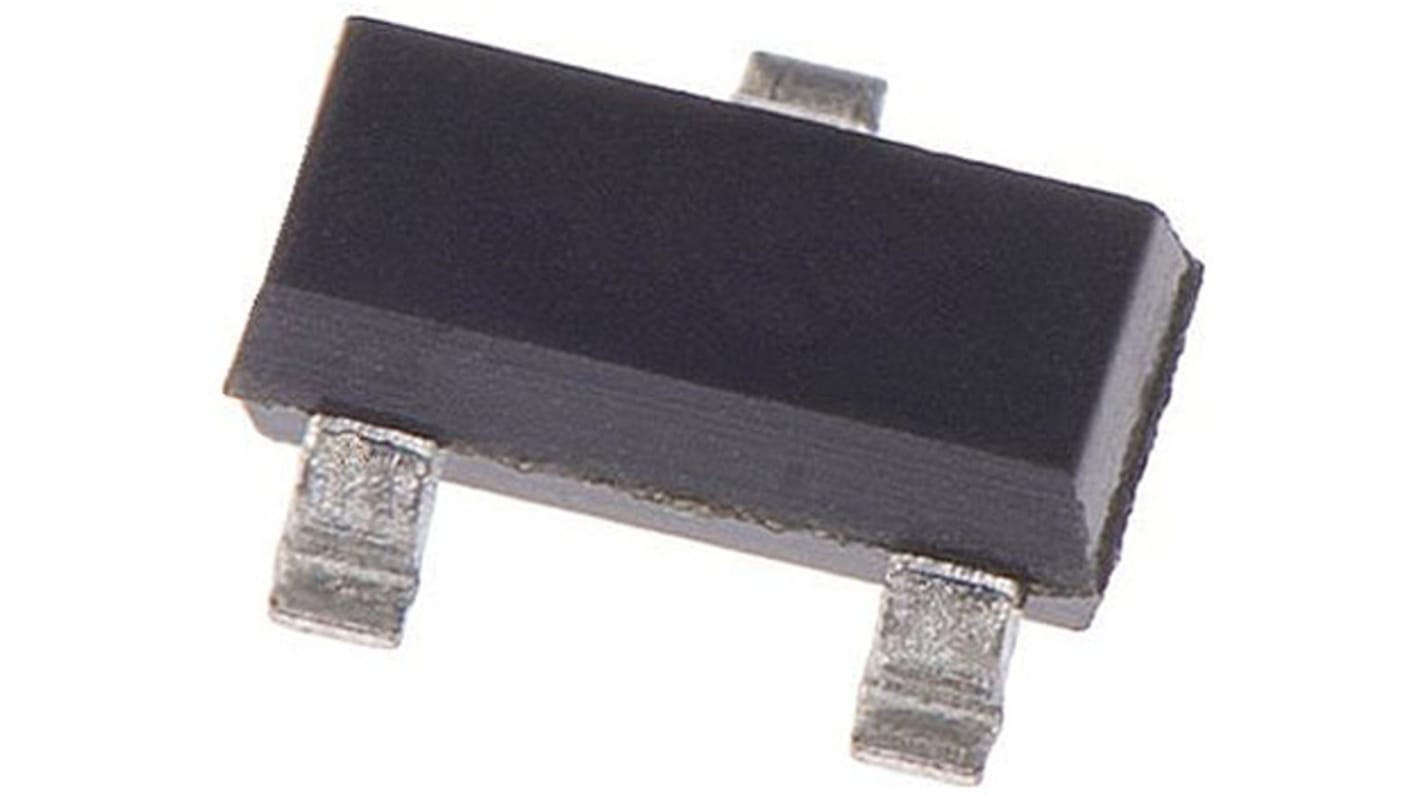

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 10 units)*

MYR27.74

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Nominal Voltage	4.096V
	Package Type	SOT-23
	Reference Type	Fixed
	Initial Accuracy	±1.0 %
	Mounting Type	Surface Mount
	Topology	Shunt
	Maximum Output Current	20mA
	Minimum Output Voltage	4.05 V
	Maximum Output Voltage	4.14 V
	Pin Count	3
	Dimensions	3.04 x 1.4 x 1.02mm
	Width	1.4mm
	Maximum Operating Temperature	+85 °C
	Height	1.02mm
	Length	3.04mm
	Minimum Operating Temperature	-40 °C

	Select all
	Brand DiodesZetex
	Nominal Voltage 4.096V
	Package Type SOT-23
	Reference Type Fixed
	Initial Accuracy ±1.0 %
	Mounting Type Surface Mount
	Topology Shunt
	Maximum Output Current 20mA
	Minimum Output Voltage 4.05 V
	Maximum Output Voltage 4.14 V
	Pin Count 3
	Dimensions 3.04 x 1.4 x 1.02mm
	Width 1.4mm
	Maximum Operating Temperature +85 °C
	Height 1.02mm
	Length 3.04mm
	Minimum Operating Temperature -40 °C

Voltage References, Diodes Inc
