Texas Instruments Fixed Series Voltage Reference 0.2 % 3-Pin SOT-23, REF3025AIDBZT
- RS Stock No.:
- 461-9541
- Mfr. Part No.:
- REF3025AIDBZT
- Manufacturer:
- Texas Instruments

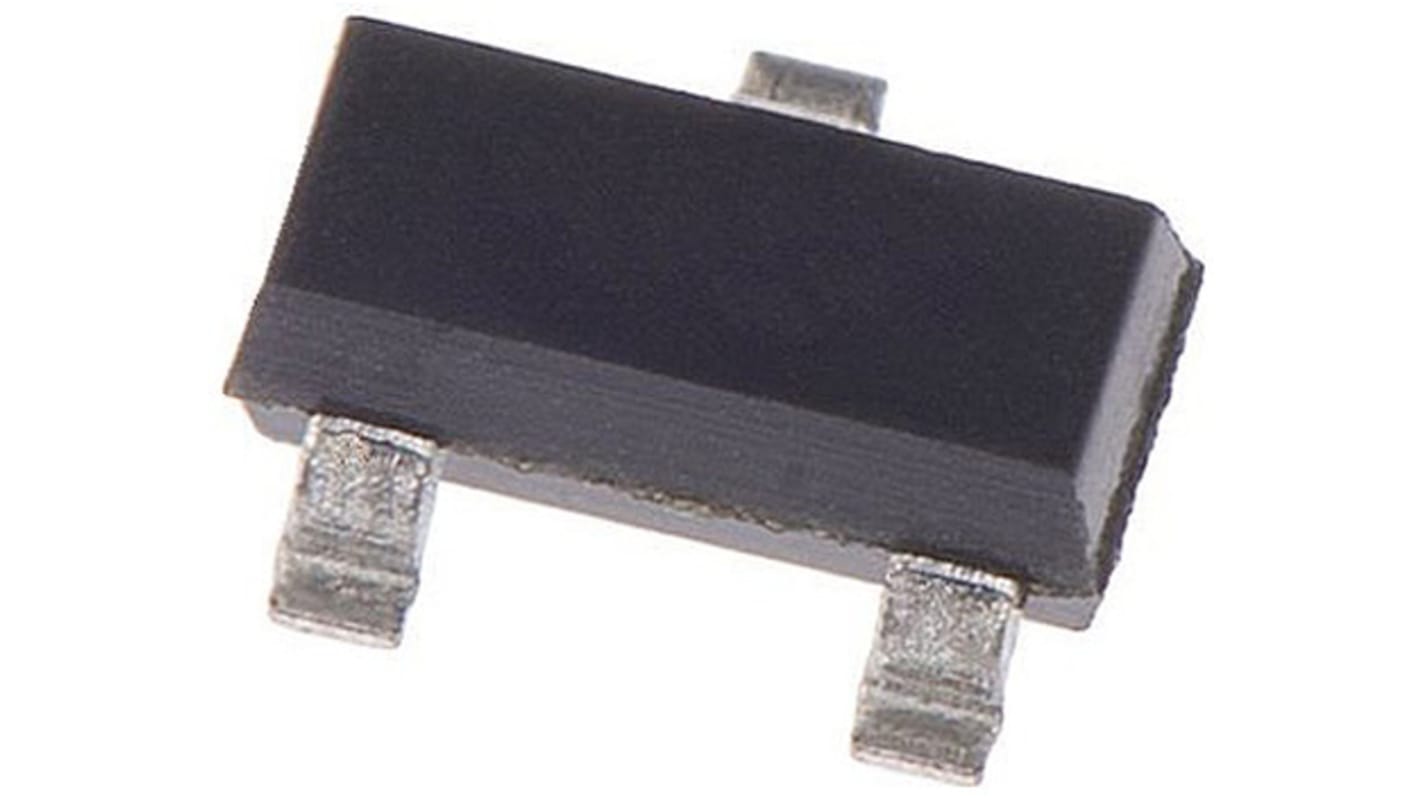

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR26.46
FREE delivery for orders over RM 500.00
In Stock
- 10 unit(s) ready to ship from another location
- Plus 285 unit(s) shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 60 | MYR5.292 | MYR26.46 |
| 65 - 120 | MYR4.888 | MYR24.44 |
| 125 + | MYR4.598 | MYR22.99 |
*price indicative
- RS Stock No.:
- 461-9541
- Mfr. Part No.:
- REF3025AIDBZT
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Voltage Reference | |
| Reference Voltage | 2.5V | |
| Package Type | SOT-23 | |
| Reference Type | Fixed | |
| Output Voltage | 2.5 V | |
| Initial Accuracy | 0.2 % | |
| Mount Type | Surface | |
| Temperature Coefficient | 35 ppm/°C | |
| Topology | Series | |
| Output Current | 25mA | |
| Maximum Input Voltage | 7V | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Line Regulation | 325 μV/V | |
| Width | 1.3 mm | |
| Length | 2.92mm | |
| Height | 1mm | |
| Load Regulation | 100 μV/mA | |
| Series | REF3025 | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Minimum Input Voltage | 2.55V | |
| Output Type | Fixed | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Voltage Reference | ||
Reference Voltage 2.5V | ||
Package Type SOT-23 | ||
Reference Type Fixed | ||
Output Voltage 2.5 V | ||
Initial Accuracy 0.2 % | ||
Mount Type Surface | ||
Temperature Coefficient 35 ppm/°C | ||
Topology Series | ||
Output Current 25mA | ||
Maximum Input Voltage 7V | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Line Regulation 325 μV/V | ||
Width 1.3 mm | ||
Length 2.92mm | ||
Height 1mm | ||
Load Regulation 100 μV/mA | ||
Series REF3025 | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Minimum Input Voltage 2.55V | ||
Output Type Fixed | ||
Series Voltage Reference, Fixed, 2.5V to 3.3V
Voltage References, Texas Instruments
Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
