Microchip HV9110NG-G 14-Pin

RS Stock No.:: 177-1926
Mfr. Part No.:: HV9110NG-G
Manufacturer:: Microchip

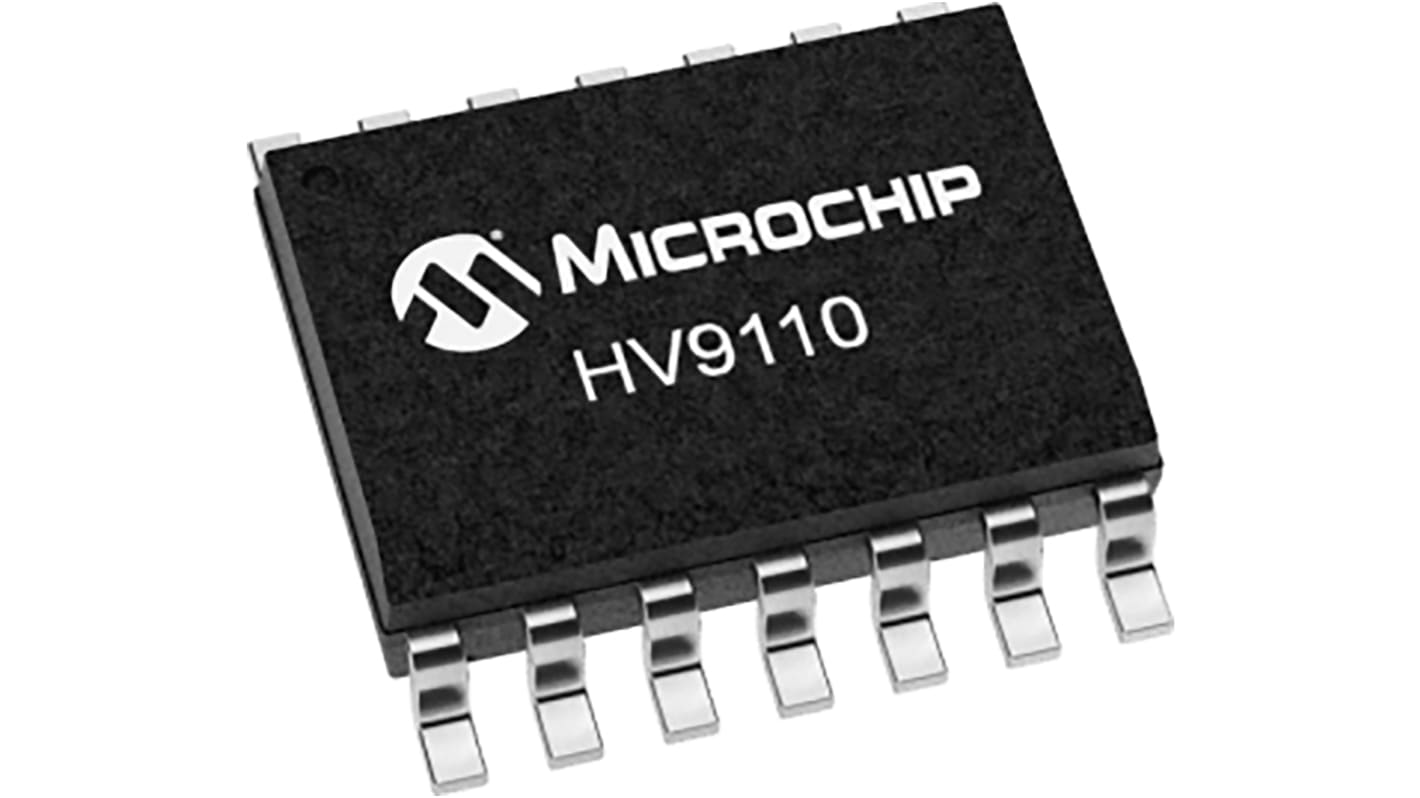

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 5 units)*

MYR110.77

FREE delivery for orders over RM 500.00

Last RS stock

Final 65 unit(s), ready to ship from another location

Units	Per Unit	Per Pack*
5 - 10	MYR22.154	MYR110.77
15 - 20	MYR21.488	MYR107.44
25 +	MYR20.84	MYR104.20

*price indicative

RS Stock No.:: 177-1926
Mfr. Part No.:: HV9110NG-G
Manufacturer:: Microchip

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Microchip
	Product Type	Voltage Controller
	Mount Type	Surface
	Pin Count	14
	Length	8.65mm
	Width	6 mm
	Standards/Approvals	No
	Height	1.75mm
	Series	HV9110
	Automotive Standard	No
	Maximum Operating Temperature	125°C

	Select all
	Brand Microchip
	Product Type Voltage Controller
	Mount Type Surface
	Pin Count 14
	Length 8.65mm
	Width 6 mm
	Standards/Approvals No
	Height 1.75mm
	Series HV9110
	Automotive Standard No
	Maximum Operating Temperature 125°C

Datasheet

HV9110 is a BiCMOS/DMOS single-output, pulse width modulator IC intended for use in high-speed, high-efficiency switch mode power supplies. It provides all the functions necessary to implement a single-switch current mode PWM, in any topology, with a minimum of external parts. Because the HV9110 utilizes proprietary BiCMOS/DMOS technology, it requires less than one tenth of the operating power of conventional bipolar PWM ICs, and can operate at more than twice their switching frequency.

10 to 120V input voltage range

Current-mode control

High efficiency

Up to 1.0MHz internal oscillator

Internal start-up circuit

Low internal noise

50% maximum duty cycle
