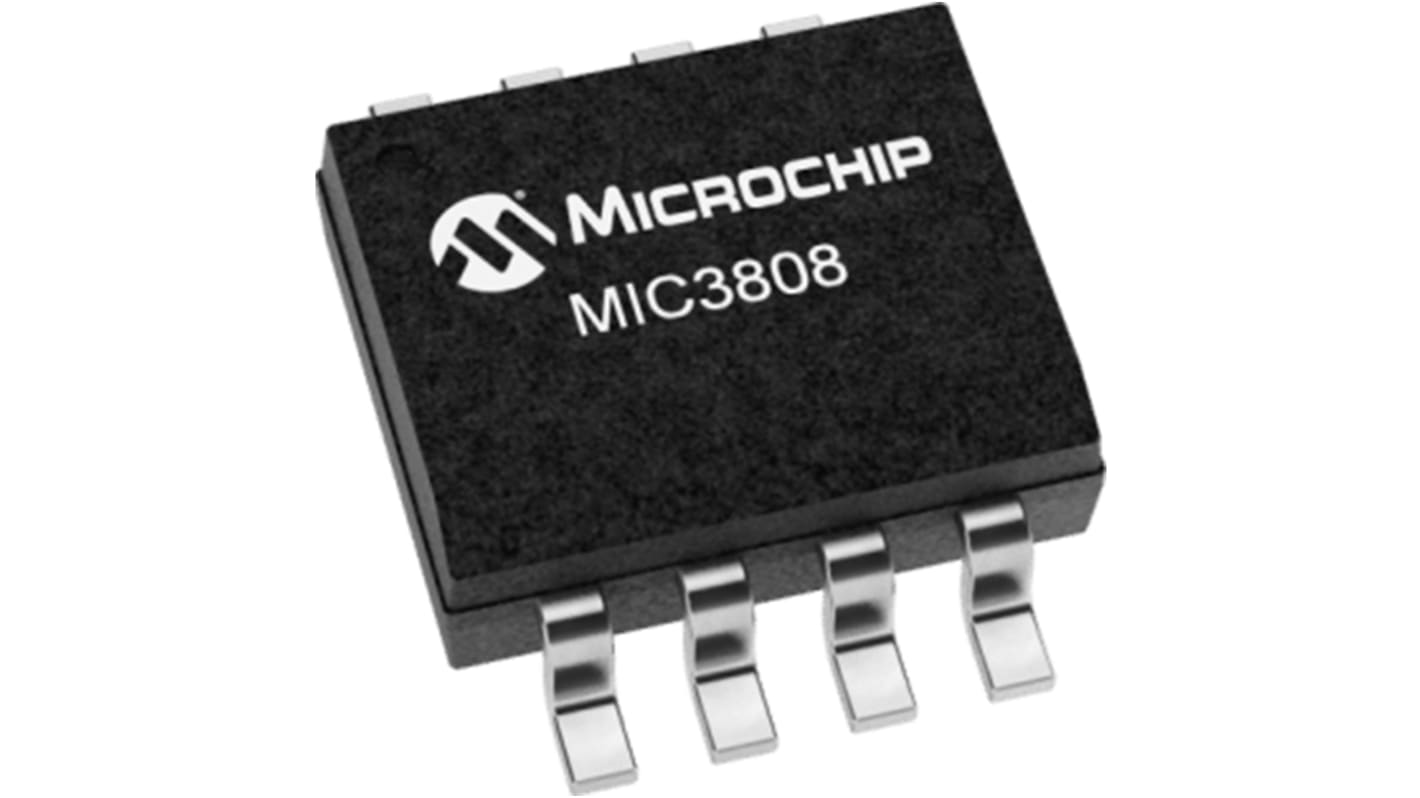

Microchip MIC3808YM DC-DC, PWM Controller 2-Channel 1 MHz 8-Pin, SOIC
- RS Stock No.:
- 177-0385
- Mfr. Part No.:
- MIC3808YM
- Manufacturer:
- Microchip
Bulk discount available
Subtotal (1 tube of 95 units)*
MYR747.27
Stock information currently inaccessible
Units | Per Unit | Per Tube* |
|---|---|---|
| 95 - 95 | MYR7.866 | MYR747.27 |
| 190 + | MYR7.63 | MYR724.85 |
*price indicative
- RS Stock No.:
- 177-0385
- Mfr. Part No.:
- MIC3808YM
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Controller Type | PWM Controller | |
| Number of Outputs | 2 | |
| Maximum Switching Frequency | 1 MHz | |
| Current Conversion Type | DC-DC | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Dimensions | 5 x 3.99 x 1.63mm | |
| Maximum Input Voltage | 15 V | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Output Current | 10mA | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Output Current | 5mA | |
| Minimum Input Voltage | 4.1 V | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Controller Type PWM Controller | ||
Number of Outputs 2 | ||
Maximum Switching Frequency 1 MHz | ||
Current Conversion Type DC-DC | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 8 | ||
Dimensions 5 x 3.99 x 1.63mm | ||
Maximum Input Voltage 15 V | ||
Maximum Operating Temperature +85 °C | ||
Maximum Output Current 10mA | ||
Minimum Operating Temperature -40 °C | ||
Minimum Output Current 5mA | ||
Minimum Input Voltage 4.1 V | ||
- COO (Country of Origin):
- TH
The MIC3808 and MIC3809 are a family of complementary output push-pull PWM control ICs that feature high speed and low power consumption. The MIC3808/9 are ideal for telecom level (36V to 75V) isolated step down DC/DC conversion applications where high output current, small size, and high efficiency are required.
Dual output drive stages in push-pull configuration
Leading edge current-sense blanking
130μA typical start-up current
1mA typical run current
Operation to 1MHz
Internal soft start
Dual output drive stages in push-pull configuration
Leading edge current-sense blanking
130μA typical start-up current
1mA typical run current
Operation to 1MHz
Internal soft start
On-chip error amplifier with 4MHz gain bandwidth product
On-chip VDD clamping
Output drive stages capable of 500mA peak source current, 1A peak sink current
Leading edge current-sense blanking
130μA typical start-up current
1mA typical run current
Operation to 1MHz
Internal soft start
Dual output drive stages in push-pull configuration
Leading edge current-sense blanking
130μA typical start-up current
1mA typical run current
Operation to 1MHz
Internal soft start
On-chip error amplifier with 4MHz gain bandwidth product
On-chip VDD clamping
Output drive stages capable of 500mA peak source current, 1A peak sink current
