SMC M8 port 240L/min Vacuum Regulator
- RS Stock No.:
- 232-9036
- Mfr. Part No.:
- IRV20-C08LG
- Manufacturer:
- SMC
Subtotal (1 unit)*
MYR808.14
FREE delivery for orders over RM 500.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR808.14 |
*price indicative
- RS Stock No.:
- 232-9036
- Mfr. Part No.:
- IRV20-C08LG
- Manufacturer:
- SMC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Vacuum Regulator | |
| Port Size | M8 | |
| Series | IRV20 | |
| Maximum Flow Rate | 240L/min | |
| Pressure Gauge Port Thread Standard | Rc | |
| Pressure Gauge Port Size | 1/8 in | |
| Overall Length | 103mm | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Overall Height | 65mm | |
| Overall Width | 71mm | |
| Pressure Setting Range | -100 to -1.3 kPa | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Vacuum Regulator | ||
Port Size M8 | ||
Series IRV20 | ||
Maximum Flow Rate 240L/min | ||
Pressure Gauge Port Thread Standard Rc | ||
Pressure Gauge Port Size 1/8 in | ||
Overall Length 103mm | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Overall Height 65mm | ||
Overall Width 71mm | ||
Pressure Setting Range -100 to -1.3 kPa | ||
- COO (Country of Origin):
- JP

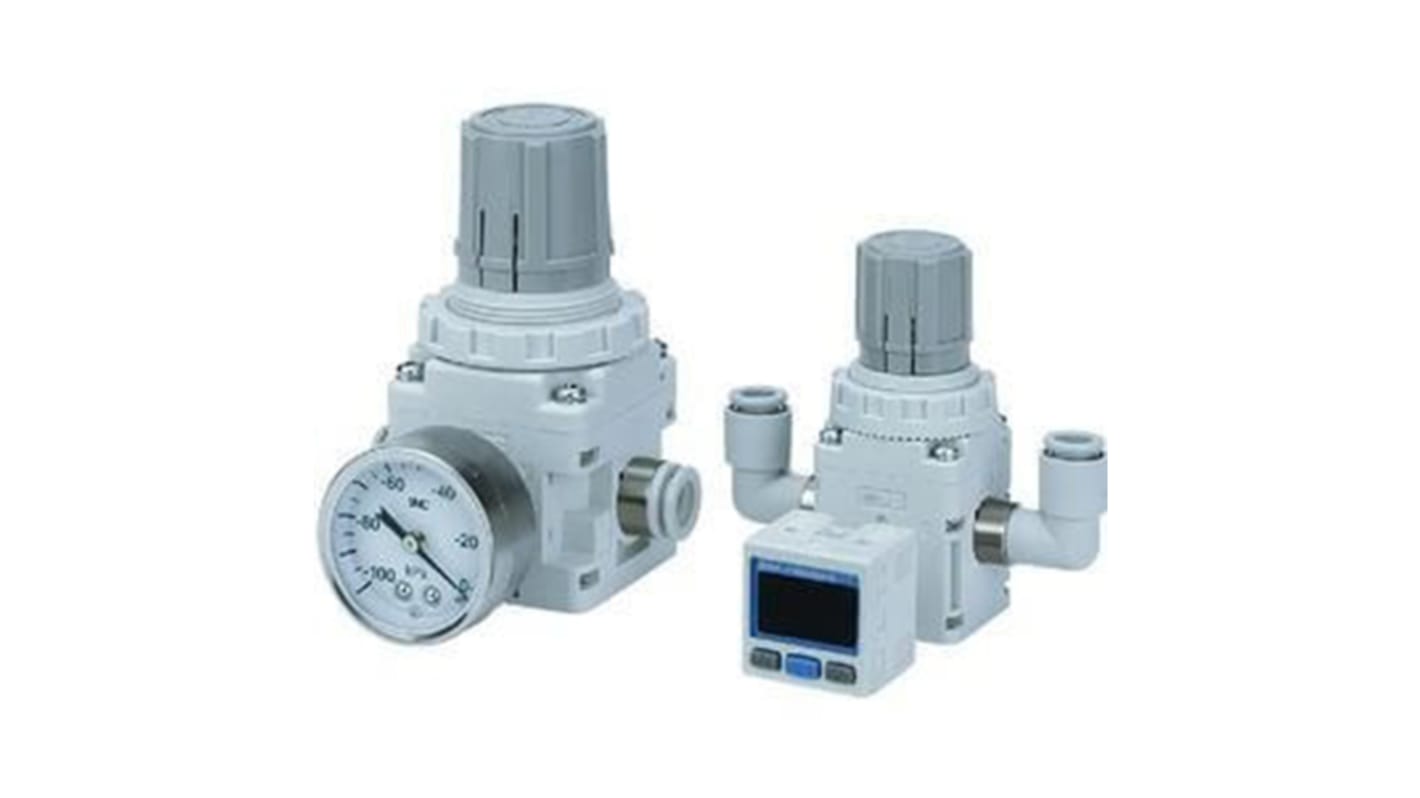

The SMC IRV20 series vacuum regulator has maximum flow rate of 240 l/min. It can be easily attach/detach the pressure gauge or digital pressure switch due to attachment by clip.
Single sided connections series
Integrated digital pressure switch for panel mounting
Built in one touch fittings
