Infineon, Controller IC, 1-Channel 1 Mbps, 5.5 V, USB, I2C, SPI, UART, 1.71 V, 24-Pin QFN
- RS Stock No.:
- 194-8851
- Mfr. Part No.:
- CYPD2122-24LQXI
- Manufacturer:
- Infineon

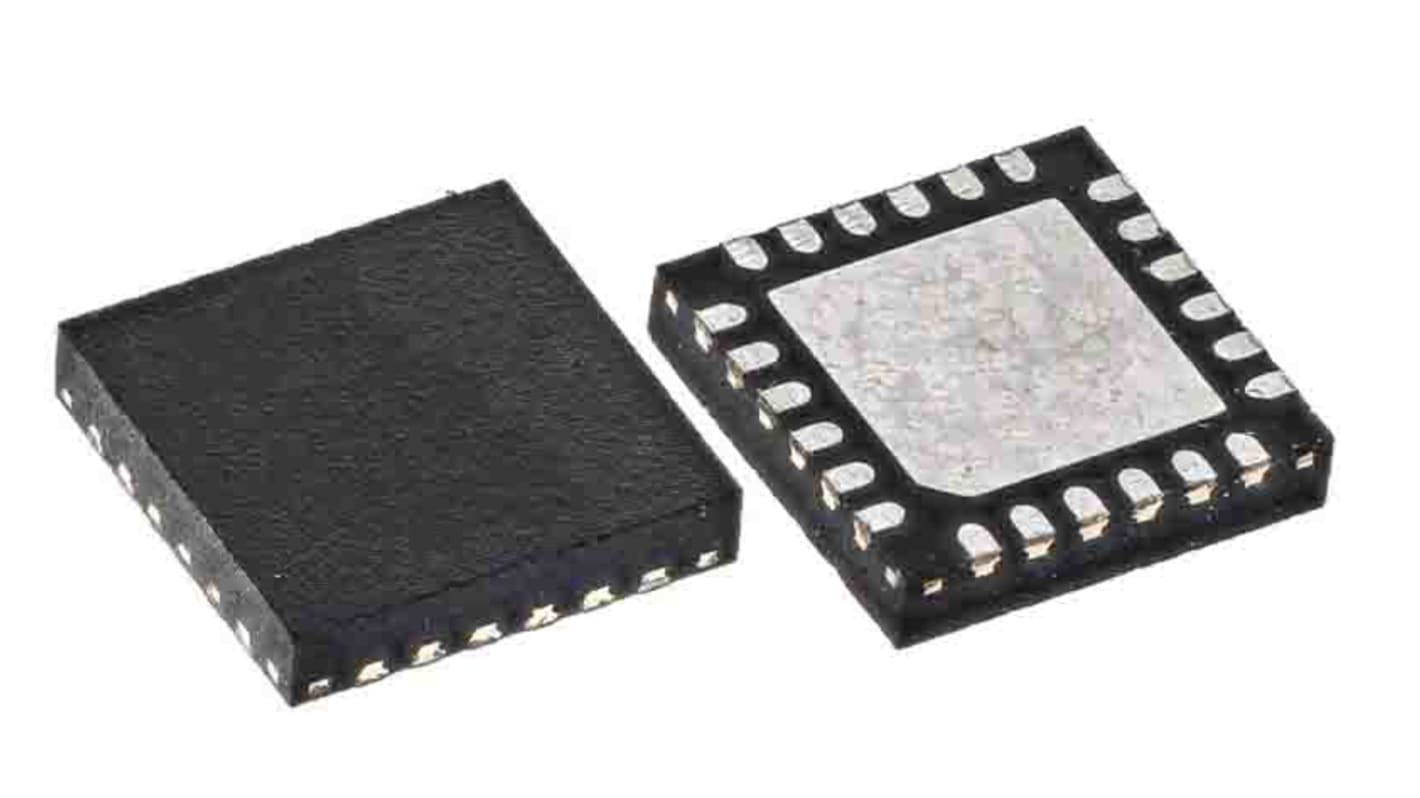

This image is representative of the product range
Bulk discount available
Subtotal (1 tray of 490 units)*
MYR3,111.50
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 18 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 490 - 490 | MYR6.35 | MYR3,111.50 |
| 980 - 1470 | MYR6.211 | MYR3,043.39 |
| 1960 + | MYR6.096 | MYR2,987.04 |
*price indicative
- RS Stock No.:
- 194-8851
- Mfr. Part No.:
- CYPD2122-24LQXI
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Controller IC | |
| Number of Transceivers | 1 | |
| Maximum Data Rate | 1Mbps | |
| Sub Type | Controller | |
| USB Specification | USB Type C | |
| Power Supply Type | Single | |
| ESD Protection | Yes | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 5.5V | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Pin Count | 24 | |
| Supported Protocols | USB, I2C, SPI, UART | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 4 mm | |
| Series | CCG2 | |
| Standards/Approvals | No | |
| Height | 0.5mm | |
| Length | 4mm | |
| Automotive Standard | No | |
| Supply Current | 7.5mA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Controller IC | ||
Number of Transceivers 1 | ||
Maximum Data Rate 1Mbps | ||
Sub Type Controller | ||
USB Specification USB Type C | ||
Power Supply Type Single | ||
ESD Protection Yes | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 5.5V | ||
Mount Type Surface | ||
Package Type QFN | ||
Pin Count 24 | ||
Supported Protocols USB, I2C, SPI, UART | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 4 mm | ||
Series CCG2 | ||
Standards/Approvals No | ||
Height 0.5mm | ||
Length 4mm | ||
Automotive Standard No | ||
Supply Current 7.5mA | ||
EZ-PD™ CCG2 is a USB Type-C controller that complies with the latest USB Type-C and PD standards. EZ-PD CCG2 provides a complete USB Type-C and U1SB Power Delivery port control solution for passive cables, active cables, and powered accessories. It can also be used in many upstream and downstream facing port applications. EZ-PD CCG2 uses Cypress’s proprietary M0S8 technology with a 32-bit, 48-MHz Arm® Cortex®-M0 processor with 32-KB flash and integrates a complete Type-C Transceiver including the Type-C termination resistors RP, RD and RA.
48-MHz ARM Cortex-M0 CPU
32-KB Flash
4-KB SRAM
In-system reprogrammable
Applications
USB Type-C EMCA cables
USB Type-C powered accessories
USB Type-C upstream facing ports
USB Type-C downstream facing ports
