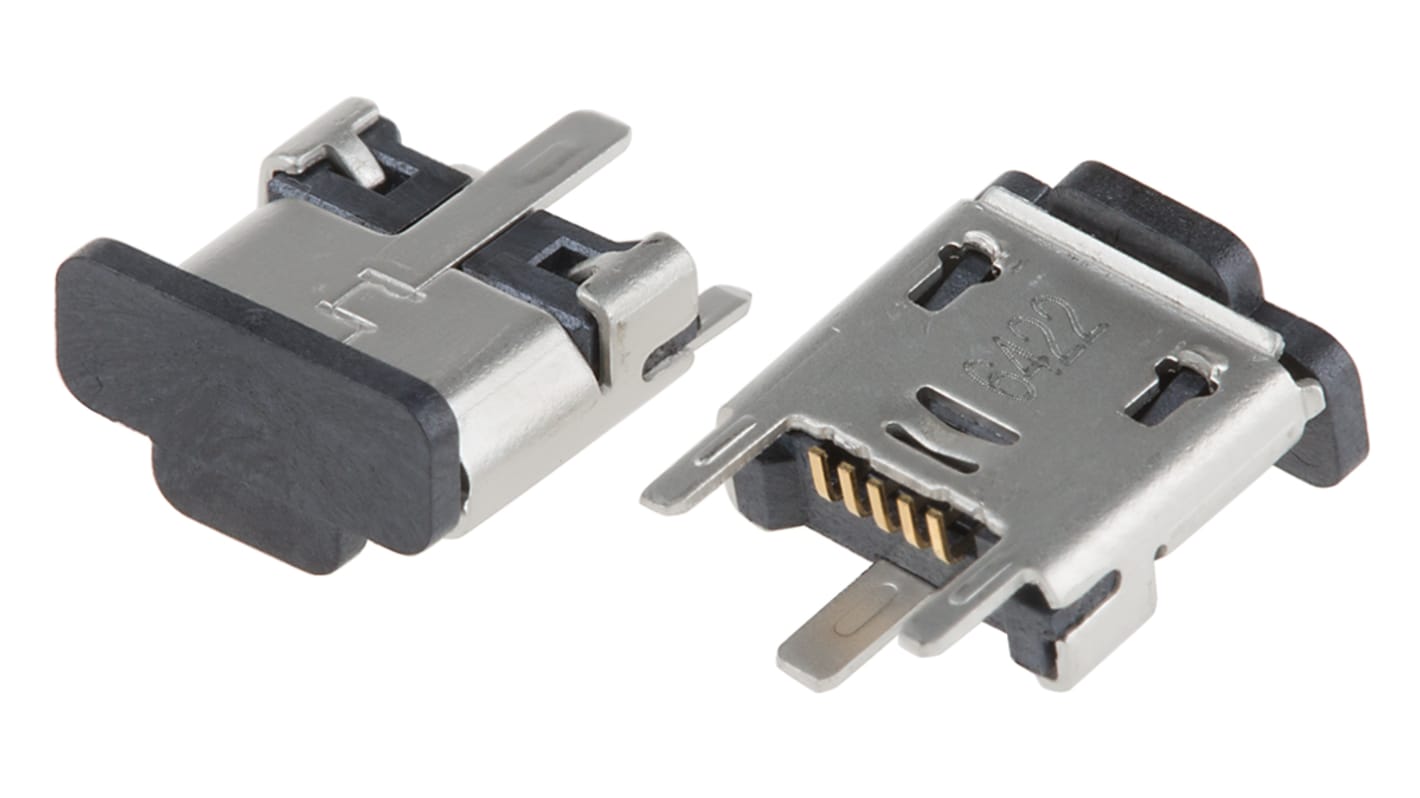

Molex Straight, SMT, Socket Type B USB Connector
- RS Stock No.:
- 896-7572
- Mfr. Part No.:
- 105133-0011
- Manufacturer:
- Molex
45 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
285 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR5.022
| Units | Per Unit | Per Pack* |
| 5 - 45 | MYR5.022 | MYR25.11 |
| 50 - 145 | MYR4.776 | MYR23.88 |
| 150 - 245 | MYR4.554 | MYR22.77 |
| 250 - 495 | MYR4.364 | MYR21.82 |
| 500 + | MYR4.212 | MYR21.06 |
| *price indicative | ||
- RS Stock No.:
- 896-7572
- Mfr. Part No.:
- 105133-0011
- Manufacturer:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Molex 0.65 mm Pitch micro USB Type B Connector - 105133 Series
0.65 mm pitch micro USB Type B connector with a compact design, a PCB space saving footprint and a high durability of over 10000 insertion cycles. The specification of these micro USB connectors supports OTG (On-The-Go) and enable portable devices to communicate directly with each other without the need for a host computer. This micro USB receptacle has a fully shielded laser-stainless steel shell which offers mechanical strength and EMI protection. A keying features prevents mismating with the plug assembly and a pick and place cover allows automated assembly
Features and Benefits
• Compact, space saving design
• High durability of over 10000 insertion cycles
• Stainless steel shell for mechanical strength
• Fully shielded for EMI protection
• Keying features to prevent mismating
• High durability of over 10000 insertion cycles
• Stainless steel shell for mechanical strength
• Fully shielded for EMI protection
• Keying features to prevent mismating
Product Application Information
This micro USB Type B connector is ideal for use in small portable devices. Applications include mobile phones, PDA, GPS, MP3 players, digital still and video cameras, printers, keyboards, flash drives and vehicle battery chargers.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Molex Micro-USB Connectors
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Mounting Type | Surface Mount |
| USB Type | B |
| Termination Method | Solder |
| Body Orientation | Straight |
| Current Rating | 1.8A |
| Voltage Rating | 30.0 V |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -30.0°C |
| Maximum Operating Temperature | +85°C |
| Series Number | 105133 |
