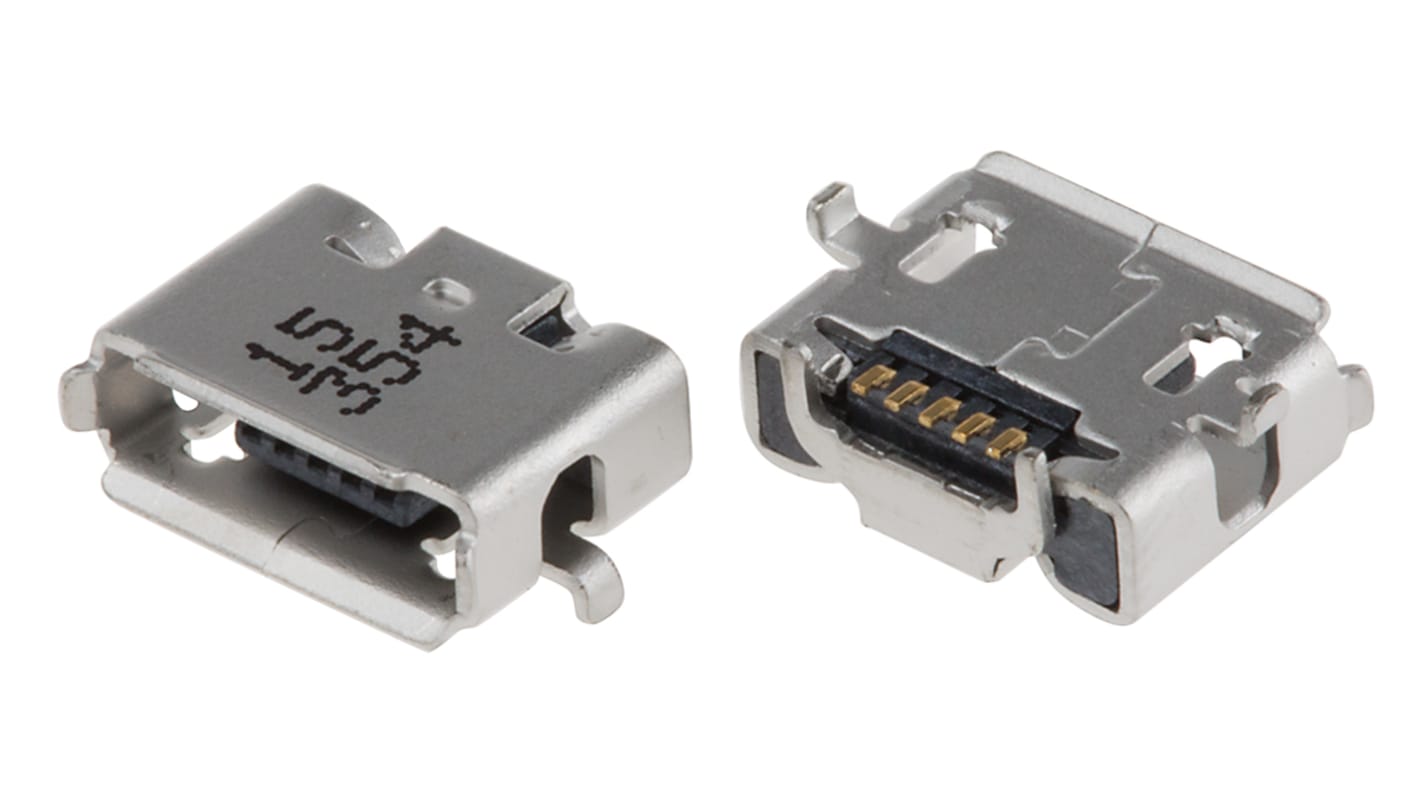

Molex Right Angle, SMT, Socket- Single Port Type Micro AB 2.0 USB Connector

0.65 mm pitch micro USB Type A and Type AB connectors with a compact design, a PCB space saving footprint and a high durability of over 10000 insertion cycles. The specification of these micro USB connectors supports OTG (On-The-Go) and enable portable devices to communicate directly with each other without the need for a host computer. These micro USB receptacle connectors have a lead-in feature on the housing that enables blind mating to the cable plug. A fully shielded laser-welded stainless steel shell offers mechanical strength and EMI protection. The connector shell features latching windows with tabs for a secure connection to the mating plug assembly. The edge contact beam geometry of the connector shell facilitates high-speed data transmission. These micro USB Type A and Type AB connectors are available as top, bottom and mid-mount.

• Compact, space saving design
• High durability of over 10000 insertion cycles
• Lead-in feature on the housing for blind mating
• Laser welded stainless steel shell for mechanical strength
• Fully shielded for EMI protection
• Latching tabs for secure mating connection
• Edge contact beam geometry for high-speed data transmission

These micro USB Type A and Type AB connectors are ideal for use in small portable devices. Applications include mobile phones, PDA, GPS, MP3 players, digital still and video cameras, printers, keyboards, flash drives and vehicle battery chargers.

Looking for a reliable way to transfer power and data from your printed circuit boards (PCBs) to your digital and mobile devices? Choose this USB (universal serial bus) connector from Molex. The high-performance component enables high-speed data transfer with transmission rates of up to 480Mbps (megabits per second). It has a copper-alloy contact that's highly conductive and makes a reliable connection. Thanks to its wide operating temperature range of -30°C to +85°C, this unit is suitable for use in demanding industrial environments. Its right-angle orientation makes it simple to install in tight or awkward areas.

• OTG (on the go) technology allows portable devices to communicate directly without a host computer for added convenience
• Gold-plated contacts for effective corrosion resistance
• Solder termination method for an air-tight, vibration-resistant connection
• Fully shielded to reduce interference and ensure fast transfer speeds

• Personal digital assistants (PDAs)
• Vehicle battery chargers
• Digital cameras

This connector has a substantial lifespan of 10,000 mating cycles, so you rely on it for a long service life.
