Samtec Straight, Surface Female- 1 Port Type USB Type B IP68 USB Connector USB 2.0
- RS Stock No.:
- 200-0492
- Mfr. Part No.:
- MUSB-05-F-B-SM-A-K-TR
- Manufacturer:
- Samtec

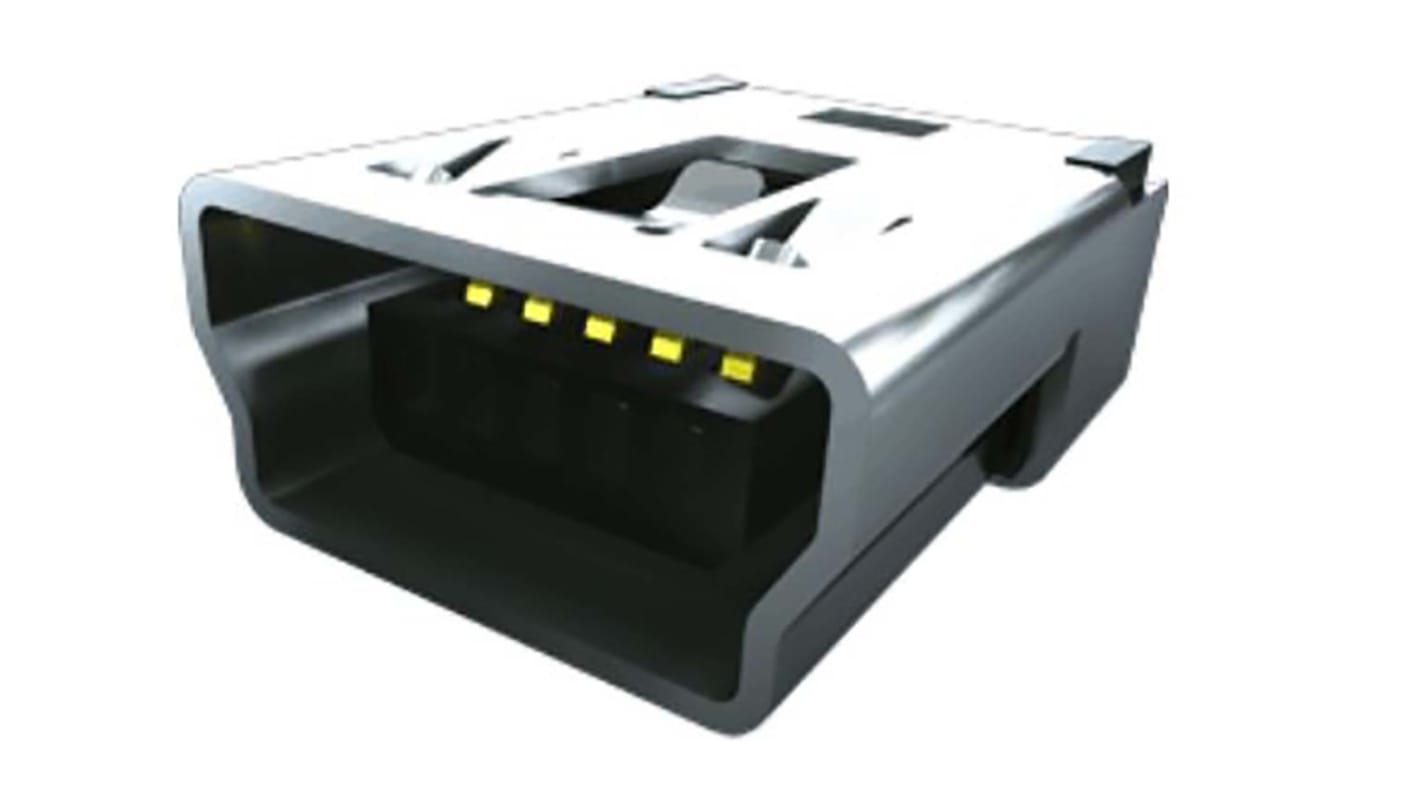

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR32.28
FREE delivery for orders over RM 500.00
In Stock
- Plus 405 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 135 | MYR6.456 | MYR32.28 |
| 140 - 270 | MYR5.502 | MYR27.51 |
| 275 + | MYR5.06 | MYR25.30 |
*price indicative
- RS Stock No.:
- 200-0492
- Mfr. Part No.:
- MUSB-05-F-B-SM-A-K-TR
- Manufacturer:
- Samtec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | USB Connector | |
| Mount Type | Surface | |
| USB Type | USB Type B | |
| USB Specification | USB 2.0 | |
| Orientation | Straight | |
| Connector Gender | Female | |
| IP Rating | IP68 | |
| Number of Ports | 1 | |
| Voltage | 30V | |
| Termination Type | Cable | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Material | Phosphor Bronze | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Series | MUSB | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type USB Connector | ||
Mount Type Surface | ||
USB Type USB Type B | ||
USB Specification USB 2.0 | ||
Orientation Straight | ||
Connector Gender Female | ||
IP Rating IP68 | ||
Number of Ports 1 | ||
Voltage 30V | ||
Termination Type Cable | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 85°C | ||
Contact Material Phosphor Bronze | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Series MUSB | ||
The Samtec Mini USB Interface has MUSB series. It is a female type B with 2. 0 USB version .
Available in standard or high-retention
Cost saving flash gold plating available
