RS PRO Data Cable, 4 Pairs, 0.25 mm², 100 m, Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 812-4750
- Manufacturer:
- RS PRO
This image is representative of the product range
Subtotal (1 reel of 100 metres)*
MYR458.18
FREE delivery for orders over RM 500.00
In Stock
- 9 unit(s) ready to ship from another location
- Plus 17 unit(s) shipping from 29 June 2026
- Plus 27 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR458.18 | MYR4.582 |
*price indicative
- RS Stock No.:
- 812-4750
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Pairs | 4 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.25mm² | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 7.1mm | |
| Minimum Operating Temperature | -15°C | |
| Jacket Material | Polyvinyl Chloride | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | Euroclass Eca | |
| Voltage | 30V | |
| Core Strands | 7 | |
| Conductor Material | Tin Copper Wire | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Pairs 4 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.25mm² | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 7.1mm | ||
Minimum Operating Temperature -15°C | ||
Jacket Material Polyvinyl Chloride | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals Euroclass Eca | ||
Voltage 30V | ||
Core Strands 7 | ||
Conductor Material Tin Copper Wire | ||
- COO (Country of Origin):
- CN

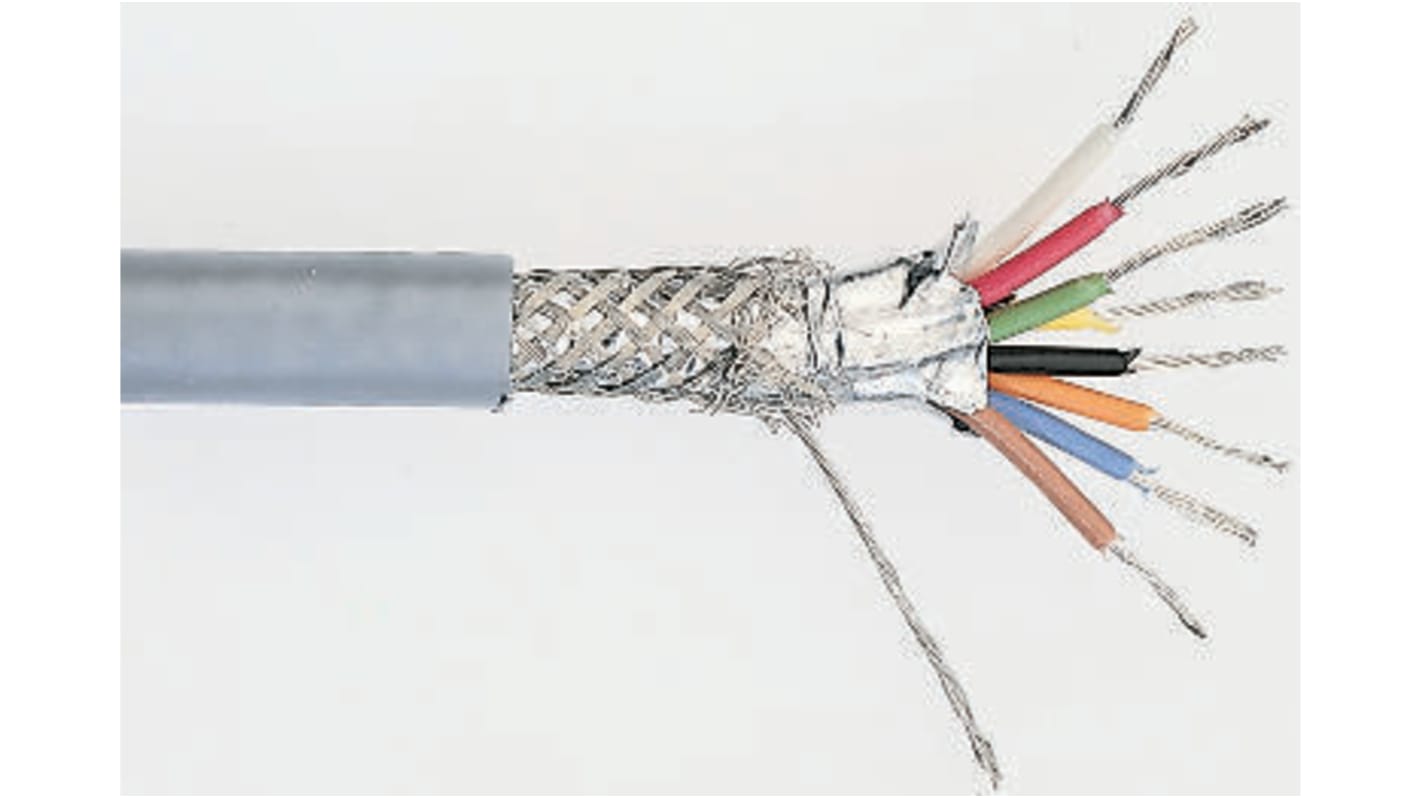

RS PRO 4 Pair Tinned Copper Multipair Industrial Cable, Euroclass Eca, Grey
Use this RS PRO industrial cable for connecting devices in a telecommunications network. It transfers data quickly and without interference, making it well-suited to applications that demand high speed.
The cable is flexible and therefore easy to install, as you can bend it through constricted spaces. Its conductors are insulated with cellular polyolefin, a very lightweight material that improves the efficiency of the cable. It also has a high melting point, so you can use this type of connection in areas where temperatures are hot. A drain wire ensures that any excess electrical noise is grounded to improve the function of the cabling.
This product can be used with industrial computers and control systems. It meets Underwriters' Laboratories (UL) 2912 standards for appliance wiring material, which is your assurance that it's been fully tested and approved for safety.
Features and Benefits
• Wire size of 24 AWG (American Wire Gauge)
• Screened, twisted pair cable
• Seven core strands, each of 0.2 mm
• Four pairs
• Outer diameter of 7.1 mm
• Grey PVC outer sheath
• Tinned copper shield type
• Meets CPR (Construction Projects Regulation) Euroclass Eca standards for fire safety
