Lapp UNITRONIC LiYCY Series Data Cable, 14 Cores, 0.25 mm², Screened, 24 AWG, 100m, Screened Shield, LiYCY Cable
- RS Stock No.:
- 491-8696
- Mfr. Part No.:
- 0034414
- Manufacturer:
- Lapp
Subtotal (1 reel of 100 metres)*
MYR1,767.35
FREE delivery for orders over RM 500.00
In Stock
- Plus 4 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR1,767.35 | MYR17.674 |
*price indicative
- RS Stock No.:
- 491-8696
- Mfr. Part No.:
- 0034414
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 14 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Shield Type | Tinned Copper Braid | |
| CPR Certification | Eca | |
| Sheath Colour | Grey | |
| Cable Type | LiYCY | |
| Outer Diameter | 8mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Multicore | |
| Shielded/Unshielded | Shielded | |
| Core Strands | 14/0.14 mm | |
| Series | UNITRONIC LiYCY | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +80°C | |
| Voltage Rating | 250 V | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 14 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type Tinned Copper Braid | ||
CPR Certification Eca | ||
Sheath Colour Grey | ||
Cable Type LiYCY | ||
Outer Diameter 8mm | ||
Outer Sheath Material PVC | ||
Cable Shape Multicore | ||
Shielded/Unshielded Shielded | ||
Core Strands 14/0.14 mm | ||
Series UNITRONIC LiYCY | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +80°C | ||
Voltage Rating 250 V | ||
- COO (Country of Origin):
- DE

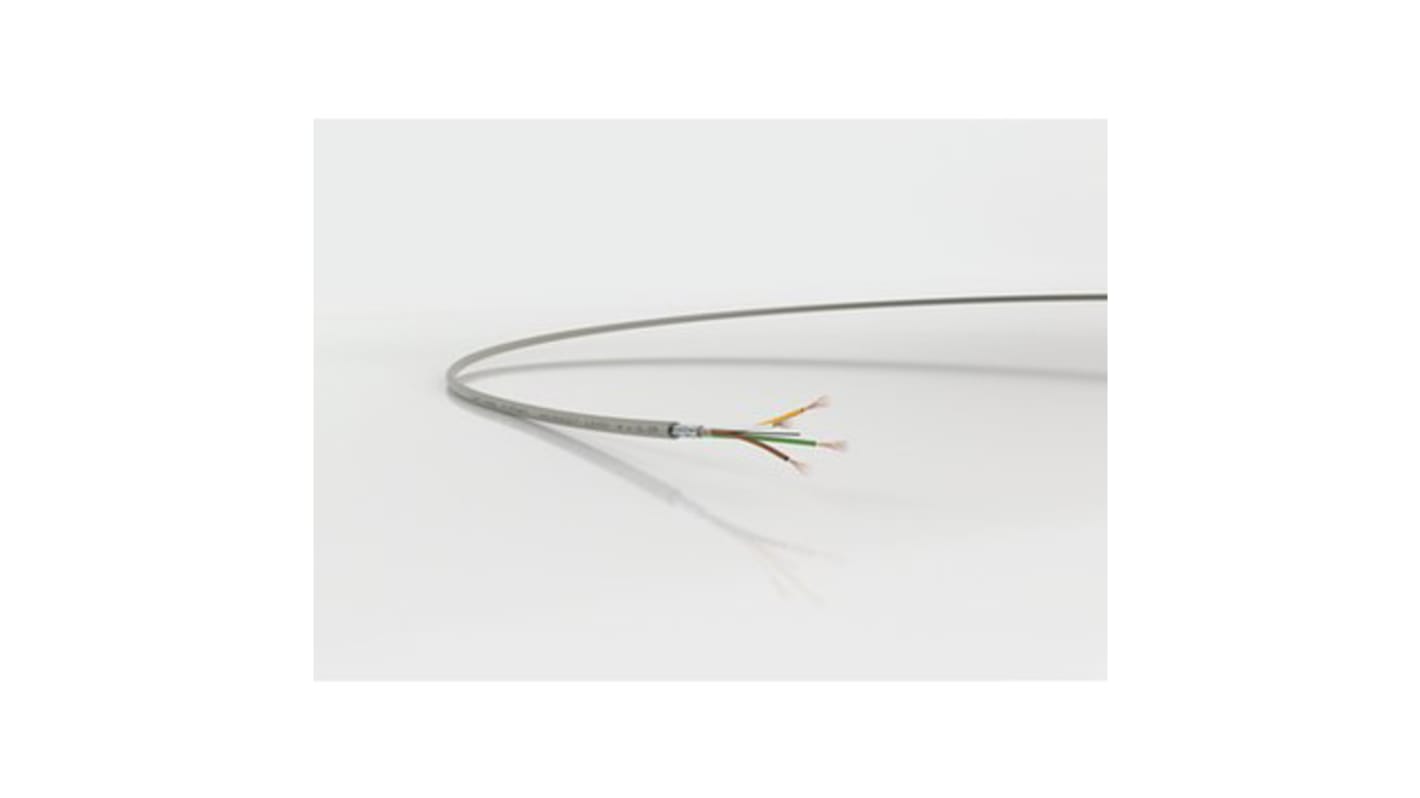

Unitronic® LiYCY cable
A CY multi-conductor cable with tinned copper braid shielding.
Features and Benefits
· Core insulation with PVC base
· Cores stranded in layers
· DIN colour code
· Shield braid made from tinned wires
· Transparent outer sheath made from special PVC-based mixture
· Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
· Pebble grey RAL 7032
· Core insulation with PVC base
· Cores stranded in layers
· DIN colour code
· Shield braid made from tinned wires
· Transparent outer sheath made from special PVC-based mixture
· Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
· Pebble grey RAL 7032
Unitronic® LiYCY are data cables with DIN colour code. These data or signal cables are used for computers and electronic control devices wherever screened cables with small dimensions are required.
Cable design:
Applications
· RS 232
· Process control
· Communications, signal & control
· Signal & broadcast
· RS 232
· Process control
· Communications, signal & control
· Signal & broadcast
Standards
VDE 482, VDE 0472, IEC 332.1 and DIN 4700 colour code
