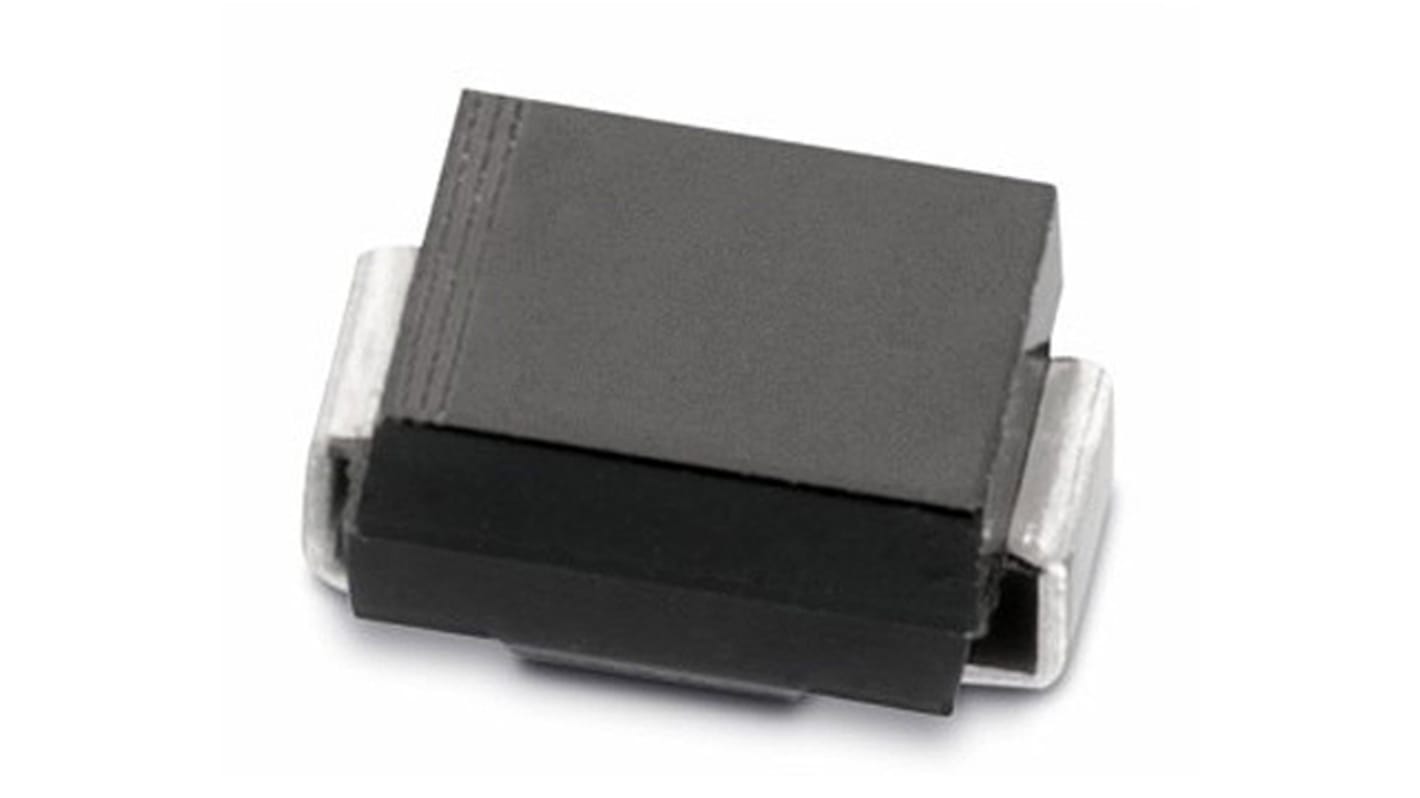

Wurth Elektronik 824521500, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
- RS Stock No.:
- 921-7500
- Mfr. Part No.:
- 824521500
- Manufacturer:
- Wurth Elektronik
50 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Pack of 25)
MYR1.484
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 - 100 | MYR1.484 | MYR37.10 |
| 125 - 225 | MYR1.41 | MYR35.25 |
| 250 + | MYR1.339 | MYR33.475 |
*price indicative
- RS Stock No.:
- 921-7500
- Mfr. Part No.:
- 824521500
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bidirectional TVS Diodes, 600W, Wurth Elektronik
The Wurth Elektronik 600 W Bidirectional Power TVS Diodes are available in a range of operating voltages from 5 V dc up to 100 V dc.
- Low profile package
- Glass passivated junction
- Fast response time
- Glass passivated junction
- Fast response time
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Transient Voltage Suppressors, Wurth Elektronik
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 9.2V |
| Minimum Breakdown Voltage | 6.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 65.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 4.32 x 3.62 x 2.3mm |
| Maximum Operating Temperature | +150 °C |
| Test Current | 10mA |
| Height | 2.3mm |
| Length | 4.32mm |
| Width | 3.62mm |
| Maximum Reverse Leakage Current | 1.6mA |
