Units	Per Unit	Per Pack**
50 - 700	MYR0.759	MYR37.95
750 - 1450	MYR0.718	MYR35.90
1500 +	MYR0.665	MYR33.25

Select all	Attribute	Value
	Brand	DiodesZetex
	Diode Configuration	Array
	Direction Type	Uni-Directional
	Maximum Clamping Voltage	8.5V
	Minimum Breakdown Voltage	6V
	Mounting Type	Surface Mount
	Package Type	SOT-26
	Maximum Reverse Stand-off Voltage	5V
	Pin Count	6
	Peak Pulse Power Dissipation	0.3W
	Maximum Peak Pulse Current	4.7A
	ESD Protection	Yes
	Number of Elements per Chip	10
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C
	Dimensions	3.1 x 1.7 x 1.3mm
	Length	3.1mm
	Capacitance	0.65pF
	Maximum Reverse Leakage Current	5µA
	Test Current	1mA
	Width	1.7mm
	Height	1.3mm
	Working Voltage	6V

	Select all
	Brand DiodesZetex
	Diode Configuration Array
	Direction Type Uni-Directional
	Maximum Clamping Voltage 8.5V
	Minimum Breakdown Voltage 6V
	Mounting Type Surface Mount
	Package Type SOT-26
	Maximum Reverse Stand-off Voltage 5V
	Pin Count 6
	Peak Pulse Power Dissipation 0.3W
	Maximum Peak Pulse Current 4.7A
	ESD Protection Yes
	Number of Elements per Chip 10
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
	Dimensions 3.1 x 1.7 x 1.3mm
	Length 3.1mm
	Capacitance 0.65pF
	Maximum Reverse Leakage Current 5µA
	Test Current 1mA
	Width 1.7mm
	Height 1.3mm
	Working Voltage 6V

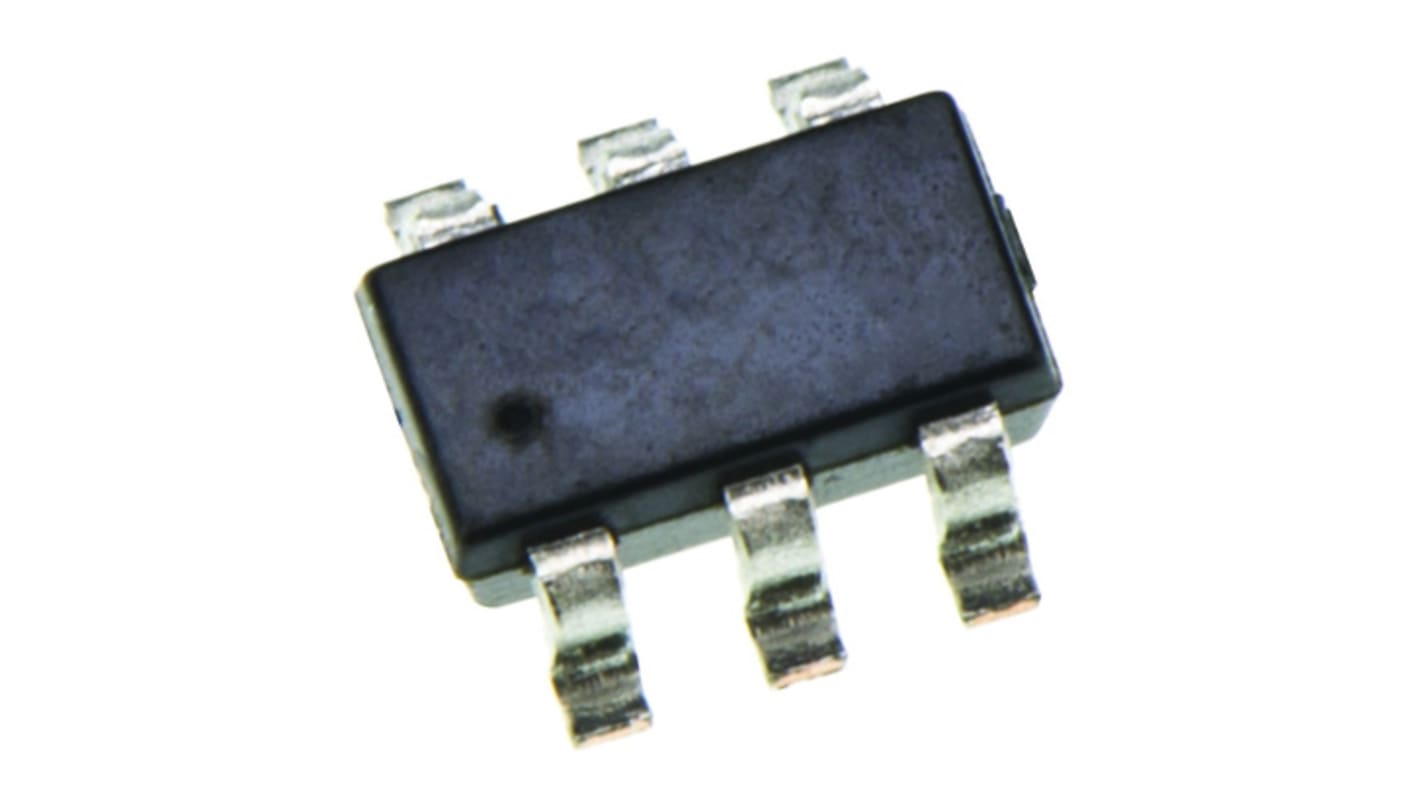

Diodes Inc DT1446-04SO-7, 10-Element Uni-Directional TVS Diode Array, 0.3W, 6-Pin SOT-26

FREE delivery for orders over MYR500.00

Quad Channel Data Line Protection TVS Diode Array, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
