Select all	Attribute	Value
	Brand	Littelfuse
	Diode Configuration	Single
	Direction Type	Uni-Directional
	Maximum Clamping Voltage	93.6V
	Minimum Breakdown Voltage	64.4V
	Mounting Type	Surface Mount
	Package Type	DO-214AB (SMC)
	Maximum Reverse Stand-off Voltage	58V
	Pin Count	2
	Peak Pulse Power Dissipation	5000W
	Maximum Peak Pulse Current	53.5A
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C
	Dimensions	7.11 x 6.22 x 2.62mm
	Maximum Reverse Leakage Current	5µA
	ESD Voltage	15kV
	Surge Current Rating	300A
	Height	2.62mm
	Length	7.11mm
	Test Current	1mA
	Width	6.22mm

	Select all
	Brand Littelfuse
	Diode Configuration Single
	Direction Type Uni-Directional
	Maximum Clamping Voltage 93.6V
	Minimum Breakdown Voltage 64.4V
	Mounting Type Surface Mount
	Package Type DO-214AB (SMC)
	Maximum Reverse Stand-off Voltage 58V
	Pin Count 2
	Peak Pulse Power Dissipation 5000W
	Maximum Peak Pulse Current 53.5A
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
	Dimensions 7.11 x 6.22 x 2.62mm
	Maximum Reverse Leakage Current 5µA
	ESD Voltage 15kV
	Surge Current Rating 300A
	Height 2.62mm
	Length 7.11mm
	Test Current 1mA
	Width 6.22mm

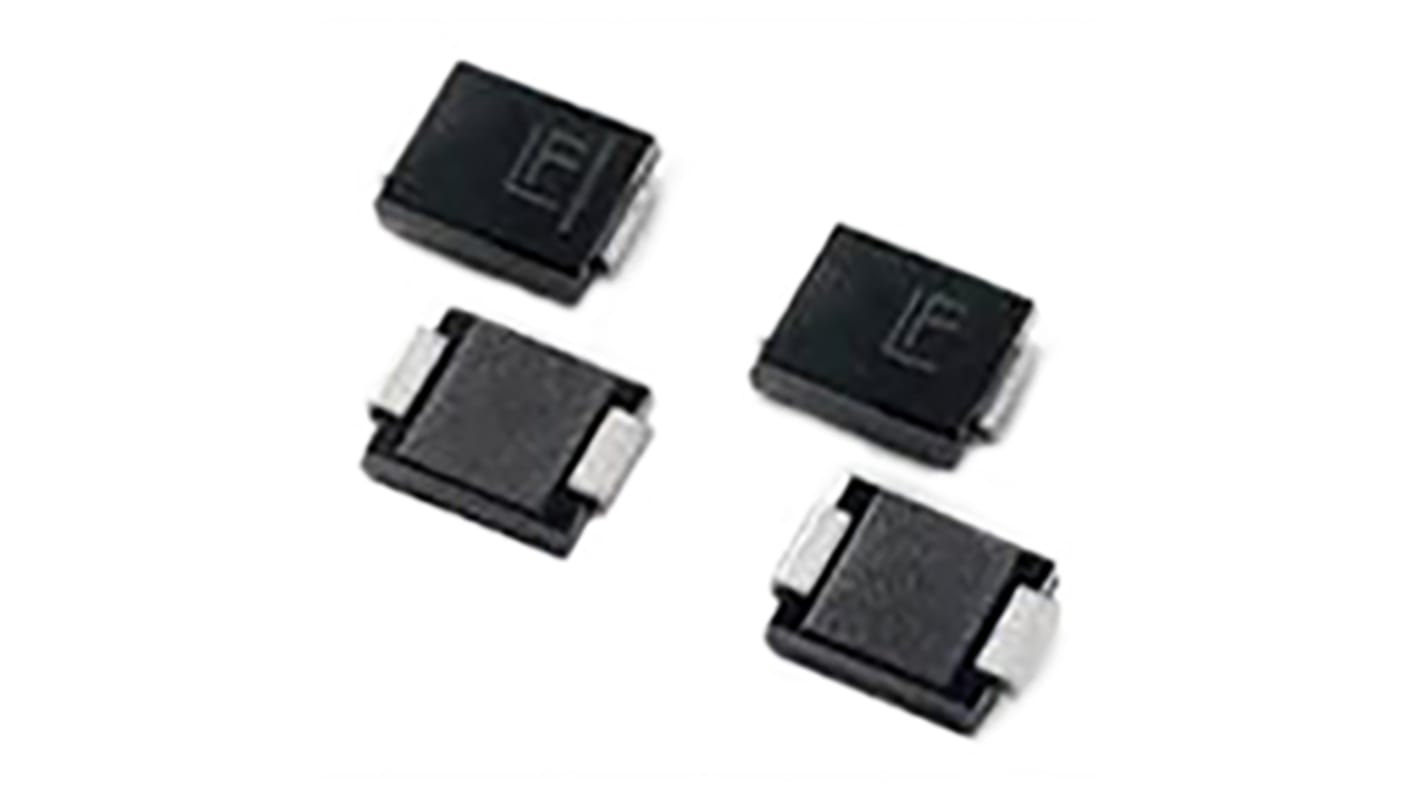

Littelfuse 5.0SMDJ58A, Uni-Directional TVS Diode, 5000W, 2-Pin DO-214AB

FREE delivery for orders over MYR500.00

TVS Diodes SMT Unidirectional 5000W, 5.0SMDJ Series, Littelfuse
