Select all	Attribute	Value
	Brand	DiodesZetex
	Diode Configuration	Complex Array
	Direction Type	Uni-Directional
	Maximum Clamping Voltage	10V
	Minimum Breakdown Voltage	6V
	Mounting Type	Surface Mount
	Package Type	DFN
	Maximum Reverse Stand-off Voltage	5.5V
	Pin Count	10
	Peak Pulse Power Dissipation	60W
	Maximum Peak Pulse Current	6A
	ESD Protection	Yes
	Number of Elements per Chip	4
	Minimum Operating Temperature	-55 °C
	Dimensions	2.575 x 1.075 x 0.555mm
	Maximum Operating Temperature	+85 °C
	Maximum Reverse Leakage Current	500nA
	Length	2.58mm
	Height	0.555mm
	Width	1.075mm
	Test Current	1mA

	Select all
	Brand DiodesZetex
	Diode Configuration Complex Array
	Direction Type Uni-Directional
	Maximum Clamping Voltage 10V
	Minimum Breakdown Voltage 6V
	Mounting Type Surface Mount
	Package Type DFN
	Maximum Reverse Stand-off Voltage 5.5V
	Pin Count 10
	Peak Pulse Power Dissipation 60W
	Maximum Peak Pulse Current 6A
	ESD Protection Yes
	Number of Elements per Chip 4
	Minimum Operating Temperature -55 °C
	Dimensions 2.575 x 1.075 x 0.555mm
	Maximum Operating Temperature +85 °C
	Maximum Reverse Leakage Current 500nA
	Length 2.58mm
	Height 0.555mm
	Width 1.075mm
	Test Current 1mA

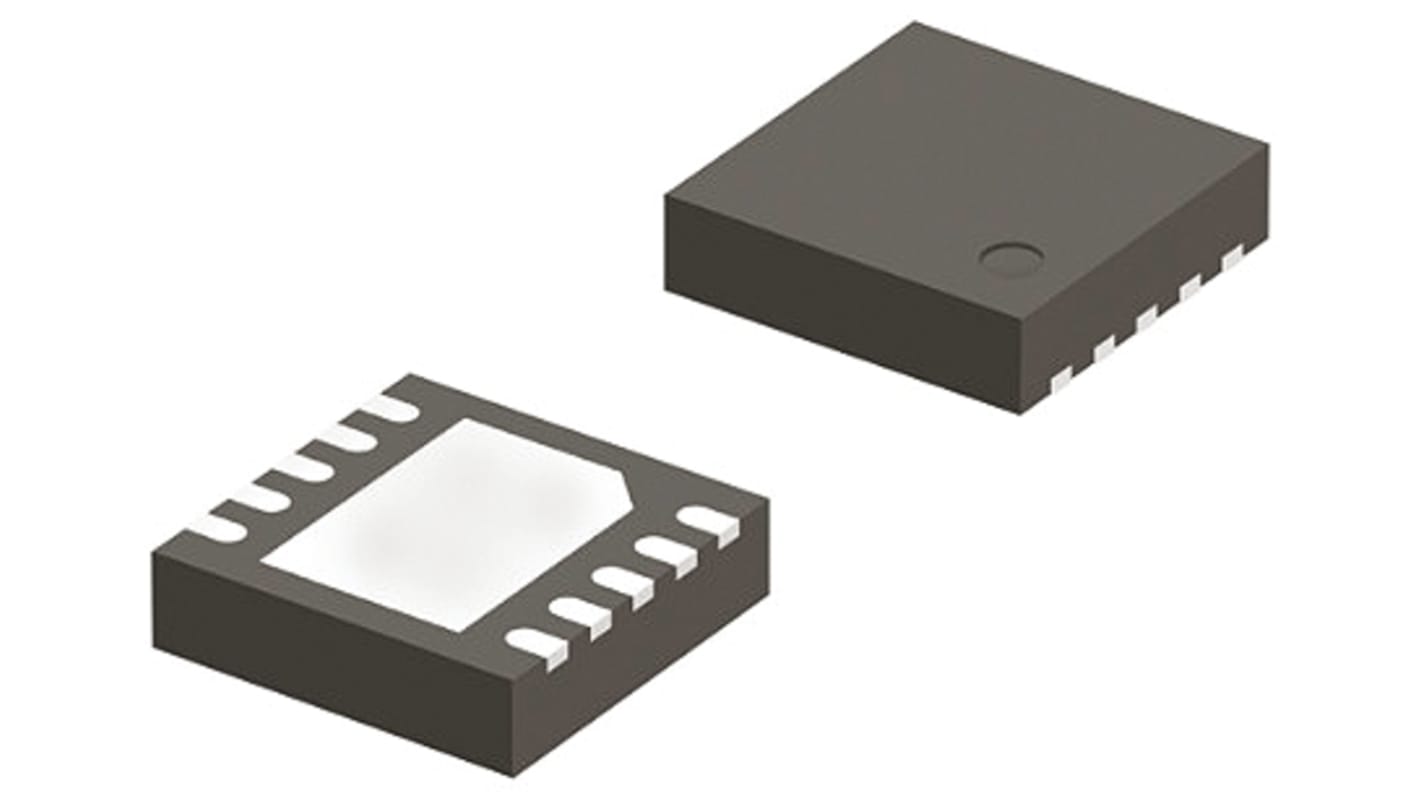

Diodes Inc DT1140-04LP-7, Quad-Element Uni-Directional TVS Diode Array, 60W, 10-Pin DFN

Quad Channel Data Line Protection TVS Diode Array, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
