Units	Per Unit	Per Pack**
25 - 725	MYR0.698	MYR17.45
750 - 1475	MYR0.664	MYR16.60
1500 +	MYR0.63	MYR15.75

Select all	Attribute	Value
	Brand	DiodesZetex
	Direction Type	Uni-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	96.8V
	Minimum Breakdown Voltage	66.7V
	Mounting Type	Surface Mount
	Package Type	DO-214AA (SMB)
	Maximum Reverse Stand-off Voltage	60V
	Pin Count	2
	Peak Pulse Power Dissipation	600W
	Maximum Peak Pulse Current	6.2A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Dimensions	4.57 x 3.94 x 2.42mm
	Maximum Operating Temperature	+150 °C
	Height	2.42mm
	Maximum Reverse Leakage Current	5µA
	Length	4.57mm
	Test Current	1mA
	Width	3.94mm

	Select all
	Brand DiodesZetex
	Direction Type Uni-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 96.8V
	Minimum Breakdown Voltage 66.7V
	Mounting Type Surface Mount
	Package Type DO-214AA (SMB)
	Maximum Reverse Stand-off Voltage 60V
	Pin Count 2
	Peak Pulse Power Dissipation 600W
	Maximum Peak Pulse Current 6.2A
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Dimensions 4.57 x 3.94 x 2.42mm
	Maximum Operating Temperature +150 °C
	Height 2.42mm
	Maximum Reverse Leakage Current 5µA
	Length 4.57mm
	Test Current 1mA
	Width 3.94mm

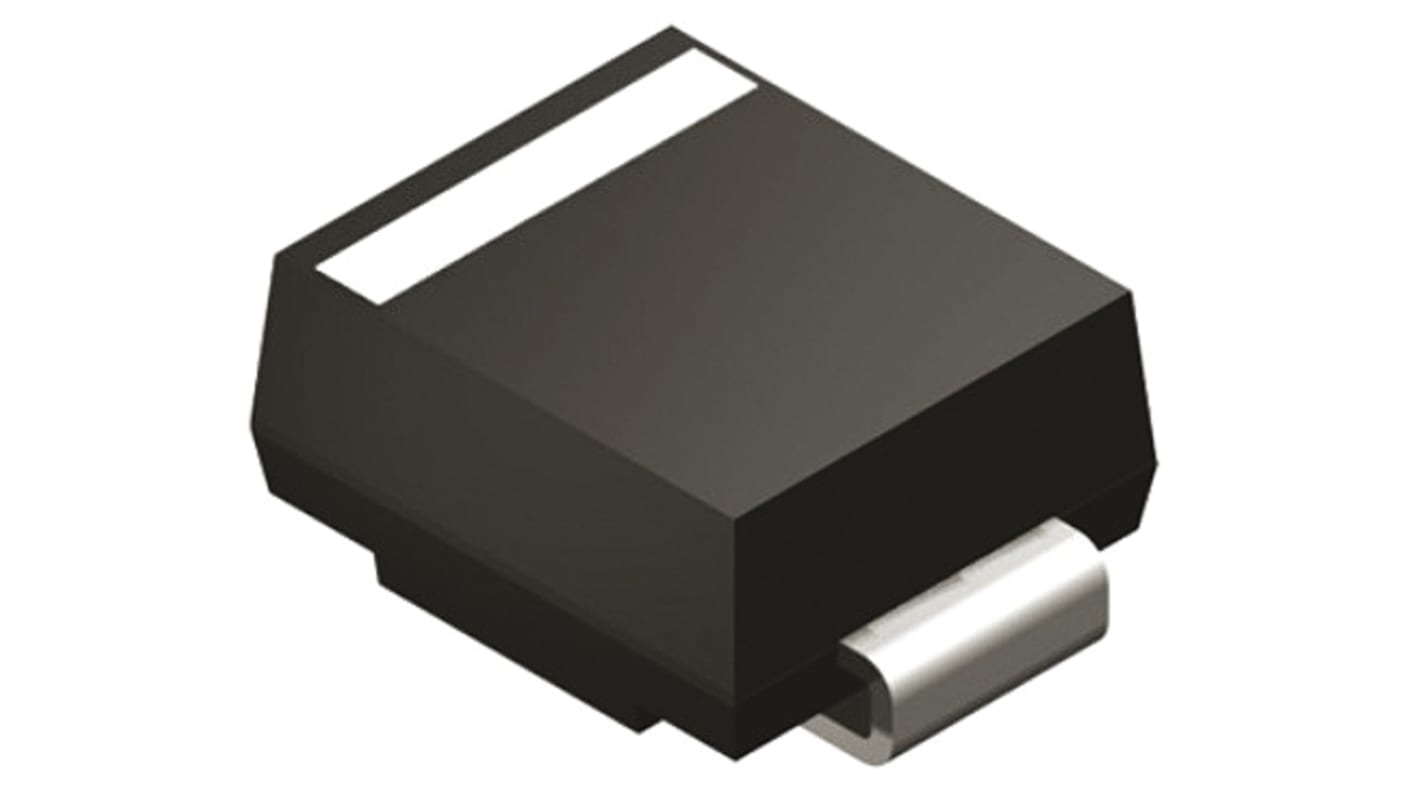

Diodes Inc SMBJ60A-13-F, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

FREE delivery for orders over MYR500.00

Transient Voltage Suppressors SMT Unidirectional 600W, SMBJ Series, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
