DiodesZetex SMBJ5.0CA-13-F 1-Element Bi-Directional TVS Diode, 600 W, 2-Pin DO-214
- RS Stock No.:
- 823-1748
- Mfr. Part No.:
- SMBJ5.0CA-13-F
- Manufacturer:
- DiodesZetex

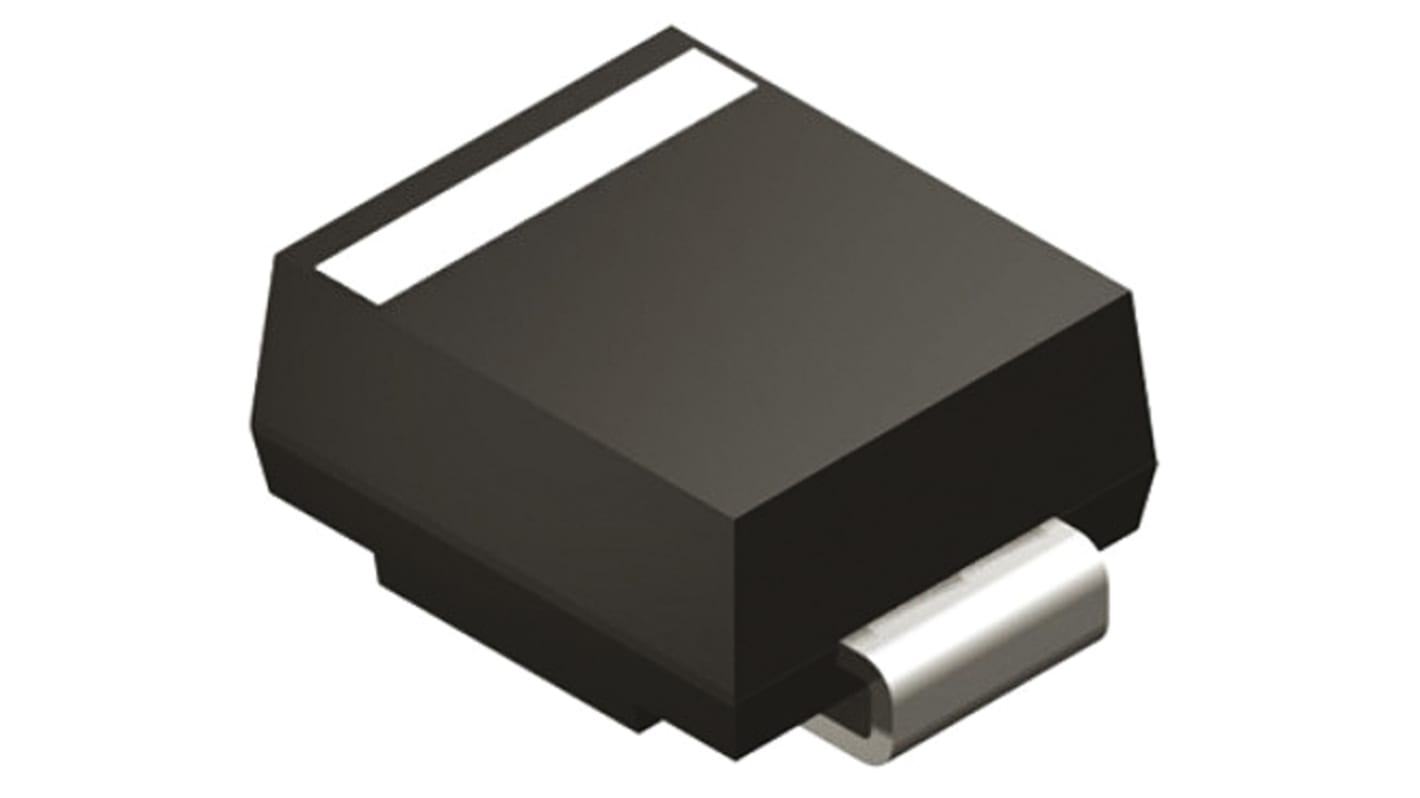

This image is representative of the product range
Get a bulk buy discount
Add 750 more to save MYR13.50
View bulk pricing optionsSubtotal (1 pack of 25 units)*
MYR22.10
FREE delivery for orders over RM 150.00
In Stock
- Plus 800 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* | Saving |
|---|---|---|---|
| 25 - 725 | MYR0.884 | MYR22.10 | - |
| 750 - 1475 | MYR0.866 | MYR21.65 | MYR13.50 |
| 1500 + | MYR0.841 | MYR21.03 | MYR64.50 |
*price indicative
- RS Stock No.:
- 823-1748
- Mfr. Part No.:
- SMBJ5.0CA-13-F
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Diode Configuration | Single | |
| Product Type | TVS Diode | |
| Direction Type | Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 6.4V | |
| Mount Type | Surface | |
| Package Type | DO-214 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 600W | |
| Test Current It | 10mA | |
| Minimum Operating Temperature | -55°C | |
| ESD Protection | No | |
| Maximum Peak Pulse Current Ippm | 65.2A | |
| Clamping Voltage VC | 9.2V | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 150°C | |
| Length | 4.57mm | |
| Series | SMBJ | |
| Standards/Approvals | No | |
| Height | 2.42mm | |
| Width | 3.94mm | |
| Automotive Standard | No | |
| Maximum Reverse Leakage Current | 800μA | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Diode Configuration Single | ||
Product Type TVS Diode | ||
Direction Type Bi-Directional | ||
Minimum Breakdown Voltage Vbr 6.4V | ||
Mount Type Surface | ||
Package Type DO-214 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 600W | ||
Test Current It 10mA | ||
Minimum Operating Temperature -55°C | ||
ESD Protection No | ||
Maximum Peak Pulse Current Ippm 65.2A | ||
Clamping Voltage VC 9.2V | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 150°C | ||
Length 4.57mm | ||
Series SMBJ | ||
Standards/Approvals No | ||
Height 2.42mm | ||
Width 3.94mm | ||
Automotive Standard No | ||
Maximum Reverse Leakage Current 800μA | ||
Transient Voltage Suppressors SMT Bidirectional 600W, SMBJ Series, Diodes Inc
Transient Voltage Suppressors, Diodes Inc
