Texas Instruments TPD6E001RSER, Hex-Element Uni-Directional ESD Protection Array, 10-Pin UQFN

RS Stock No.:: 812-0212
Mfr. Part No.:: TPD6E001RSER
Manufacturer:: Texas Instruments

Texas Instruments TPD6E001RSER, Hex-Element Uni-Directional ESD Protection Array, 10-Pin UQFN

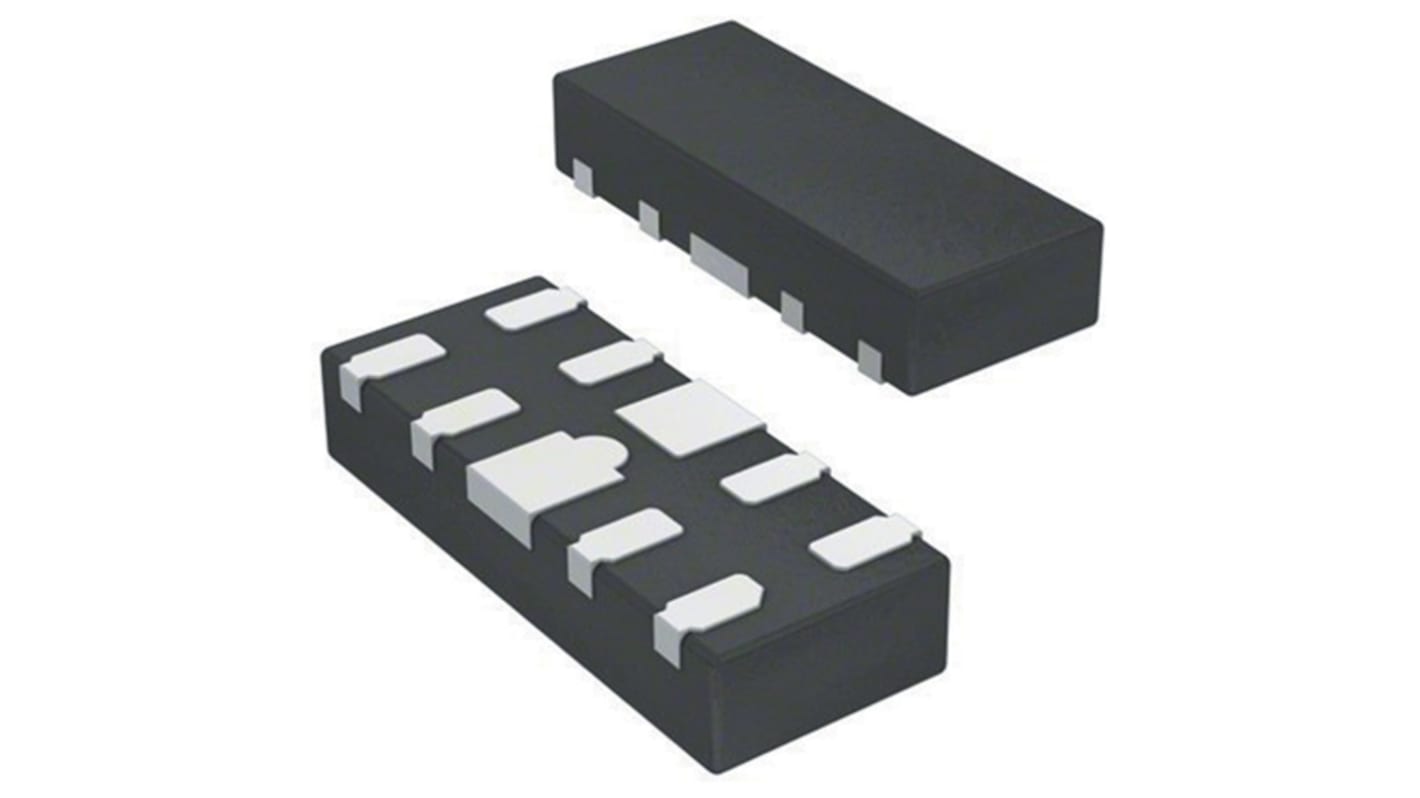

This image is representative of the product range

Bulk discount available

Price Each (In a Pack of 25)**

MYR2.138

5700 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Pack**
25 - 725	MYR2.138	MYR53.45
750 - 1475	MYR2.063	MYR51.575
1500 +	MYR1.96	MYR49.00

**price indicative

RS Stock No.:: 812-0212
Mfr. Part No.:: TPD6E001RSER
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Direction Type	Uni-Directional
Diode Configuration	Complex Array
Maximum Clamping Voltage	100V
Minimum Breakdown Voltage	11V
Mounting Type	Surface Mount
Package Type	UQFN
Pin Count	10
ESD Protection	Yes
Number of Elements per Chip	6
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+85 °C
Dimensions	2.05 x 1.55 x 0.55mm
Maximum Reverse Leakage Current	1nA
Length	2.05mm
Height	0.55mm
Width	1.55mm
Test Current	10mA

Texas Instruments TPD6E001RSER, Hex-Element Uni-Directional ESD Protection Array, 10-Pin UQFN

FREE delivery for orders over MYR700.00

Electrostatic Discharge (ESD) Protection, Texas Instruments

Integrated ESD Protection

High Performance TVS Diodes
