Units	Per Unit	Per Pack**
50 - 1200	MYR1.682	MYR84.10
1250 - 2450	MYR1.599	MYR79.95
2500 +	MYR1.513	MYR75.65

Select all	Attribute	Value
	Brand	Bourns
	Diode Configuration	Single
	Maximum Clamping Voltage	25V
	Mounting Type	Surface Mount
	Package Type	MLC
	Pin Count	2
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-40 °C
	Dimensions	1.6 x 0.8 x 0.45mm
	Maximum Operating Temperature	+85 °C
	Height	0.45mm
	Width	0.8mm
	Maximum Reverse Leakage Current	5nA
	Length	1.6mm

	Select all
	Brand Bourns
	Diode Configuration Single
	Maximum Clamping Voltage 25V
	Mounting Type Surface Mount
	Package Type MLC
	Pin Count 2
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -40 °C
	Dimensions 1.6 x 0.8 x 0.45mm
	Maximum Operating Temperature +85 °C
	Height 0.45mm
	Width 0.8mm
	Maximum Reverse Leakage Current 5nA
	Length 1.6mm

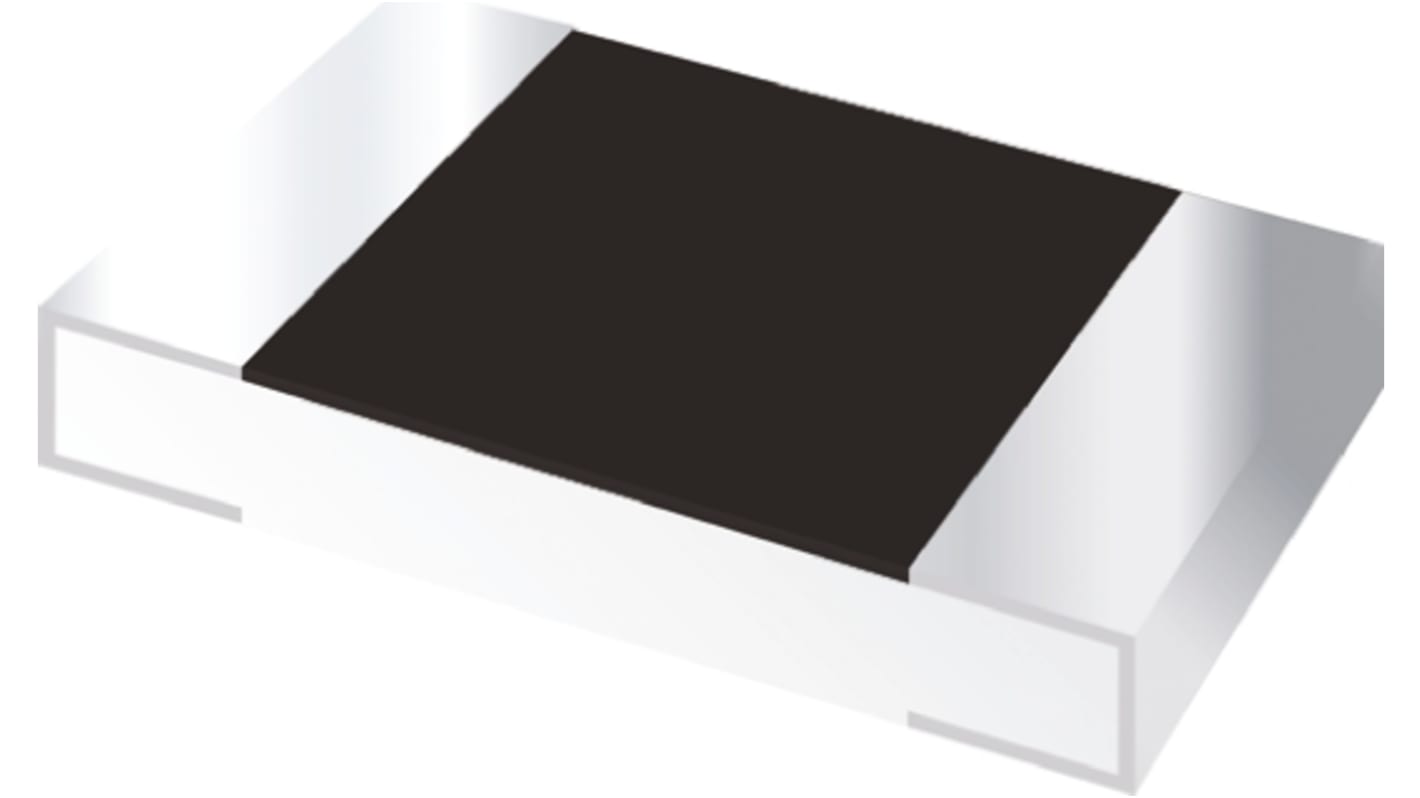

Bourns CGA0603MLC-24E, ESD Protection Diode, 2-Pin MLC

FREE delivery for orders over MYR500.00

ChipGuard® Automotive ESD Suppressors - CGA-MLC Series

Key features
