Littelfuse SP720ABG 14-Element Uni-Directional TVS Diode Array, 16-Pin SOIC
- RS Stock No.:
- 793-1989
- Mfr. Part No.:
- SP720ABG
- Manufacturer:
- Littelfuse

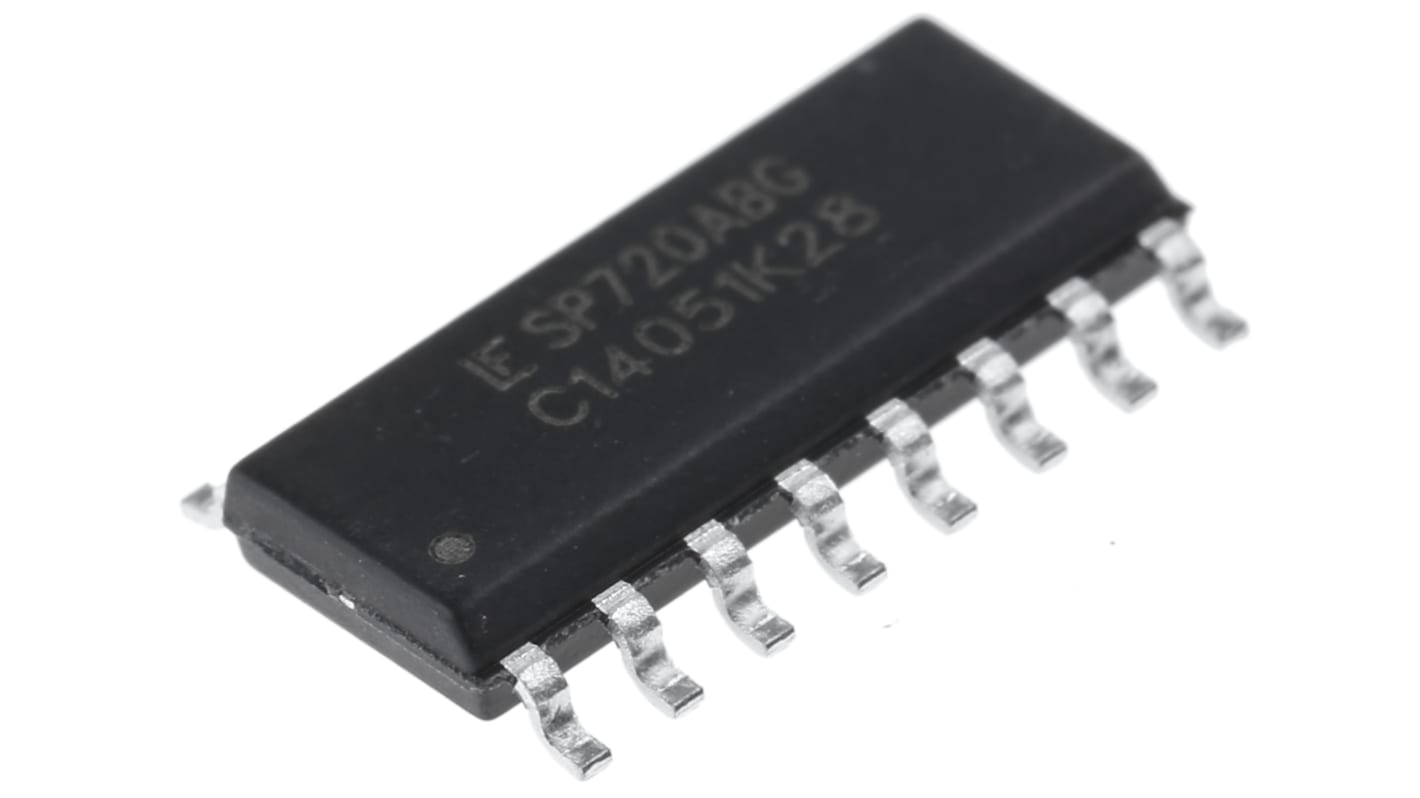

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
MYR69.88
FREE delivery for orders over RM 150.00
In Stock
- 15 unit(s) ready to ship from another location
- Plus 1,845 unit(s) shipping from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 5 | MYR13.976 | MYR69.88 |
| 10 - 15 | MYR13.002 | MYR65.01 |
| 20 + | MYR12.192 | MYR60.96 |
*price indicative
- RS Stock No.:
- 793-1989
- Mfr. Part No.:
- SP720ABG
- Manufacturer:
- Littelfuse
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Complex Array | |
| Product Type | TVS Diode Array | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Maximum Reverse Stand-off Voltage Vwm | 30V | |
| Pin Count | 16 | |
| ESD Protection | Yes | |
| Maximum Peak Pulse Current Ippm | 3A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Number of Elements per Chip | 14 | |
| Length | 10mm | |
| Series | SP720 | |
| Width | 4mm | |
| Standards/Approvals | No | |
| Height | 1.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Direction Type Uni-Directional | ||
Diode Configuration Complex Array | ||
Product Type TVS Diode Array | ||
Mount Type Surface | ||
Package Type SOIC | ||
Maximum Reverse Stand-off Voltage Vwm 30V | ||
Pin Count 16 | ||
ESD Protection Yes | ||
Maximum Peak Pulse Current Ippm 3A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Number of Elements per Chip 14 | ||
Length 10mm | ||
Series SP720 | ||
Width 4mm | ||
Standards/Approvals No | ||
Height 1.5mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
TVS Diode Arrays, SP7xx Series
The SP7xx Series of TVS diode arrays are designed for ESD and over-voltage protection to sensitive input circuits. The series is suitable for data bus protection, microprocessor/logic protection, analog device input protection and voltage clamping.
Features:
Fast Switching
Low Input Leakages
Low Input Capacitance
General Purpose ESD Protection
