Units	Per Unit	Per Pack**
50 - 700	MYR0.584	MYR29.20
750 - 1450	MYR0.569	MYR28.45
1500 +	MYR0.547	MYR27.35

Select all	Attribute	Value
	Brand	DiodesZetex
	Direction Type	Uni-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	17V
	Minimum Breakdown Voltage	6V
	Mounting Type	Surface Mount
	Package Type	SOD-523
	Maximum Reverse Stand-off Voltage	3.3V
	Pin Count	2
	Maximum Peak Pulse Current	5A
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Dimensions	1.3 x 0.9 x 0.65mm
	Maximum Operating Temperature	+150 °C
	Height	0.65mm
	Width	0.9mm
	Test Current	1mA
	Maximum Reverse Leakage Current	1µA
	Length	1.3mm

	Select all
	Brand DiodesZetex
	Direction Type Uni-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 17V
	Minimum Breakdown Voltage 6V
	Mounting Type Surface Mount
	Package Type SOD-523
	Maximum Reverse Stand-off Voltage 3.3V
	Pin Count 2
	Maximum Peak Pulse Current 5A
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Dimensions 1.3 x 0.9 x 0.65mm
	Maximum Operating Temperature +150 °C
	Height 0.65mm
	Width 0.9mm
	Test Current 1mA
	Maximum Reverse Leakage Current 1µA
	Length 1.3mm

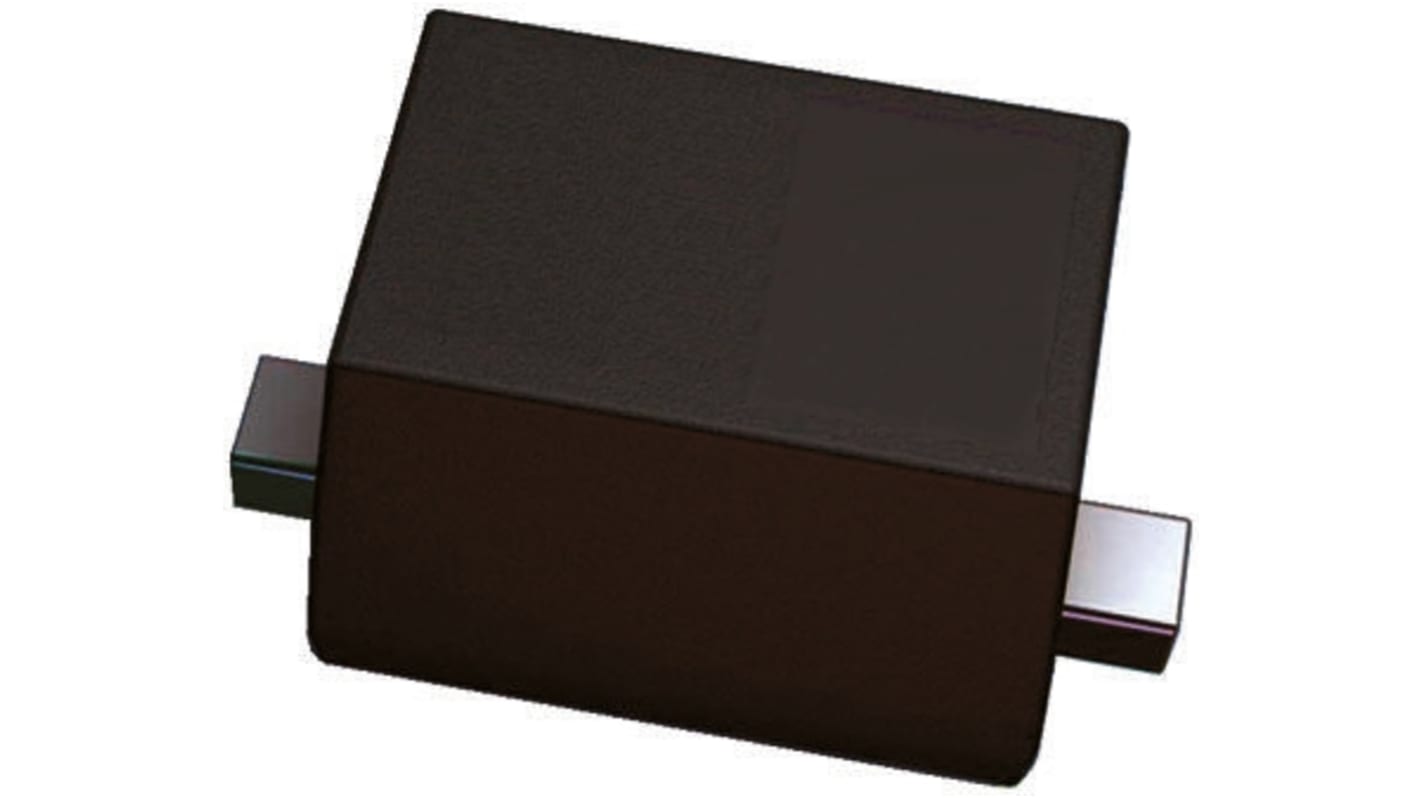

Diodes Inc D1213A-01T-7, Uni-Directional TVS Diode, 2-Pin SOD-523

FREE delivery for orders over MYR500.00

Single Channel Data Line Protection TVS Diodes, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
