Select all	Attribute	Value
	Brand	Vishay
	Diode Configuration	Single
	Direction Type	Uni-Directional
	Maximum Clamping Voltage	9.2V
	Minimum Breakdown Voltage	6.4V
	Mounting Type	Surface Mount
	Package Type	DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage	5V
	Pin Count	2
	Peak Pulse Power Dissipation	400W
	Maximum Peak Pulse Current	43.5A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Dimensions	4.5 x 2.79 x 2.09mm
	Maximum Operating Temperature	+150 °C
	Height	2.09mm
	Width	2.79mm
	Maximum Reverse Leakage Current	800µA
	Length	4.5mm
	Test Current	10mA

	Select all
	Brand Vishay
	Diode Configuration Single
	Direction Type Uni-Directional
	Maximum Clamping Voltage 9.2V
	Minimum Breakdown Voltage 6.4V
	Mounting Type Surface Mount
	Package Type DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage 5V
	Pin Count 2
	Peak Pulse Power Dissipation 400W
	Maximum Peak Pulse Current 43.5A
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Dimensions 4.5 x 2.79 x 2.09mm
	Maximum Operating Temperature +150 °C
	Height 2.09mm
	Width 2.79mm
	Maximum Reverse Leakage Current 800µA
	Length 4.5mm
	Test Current 10mA

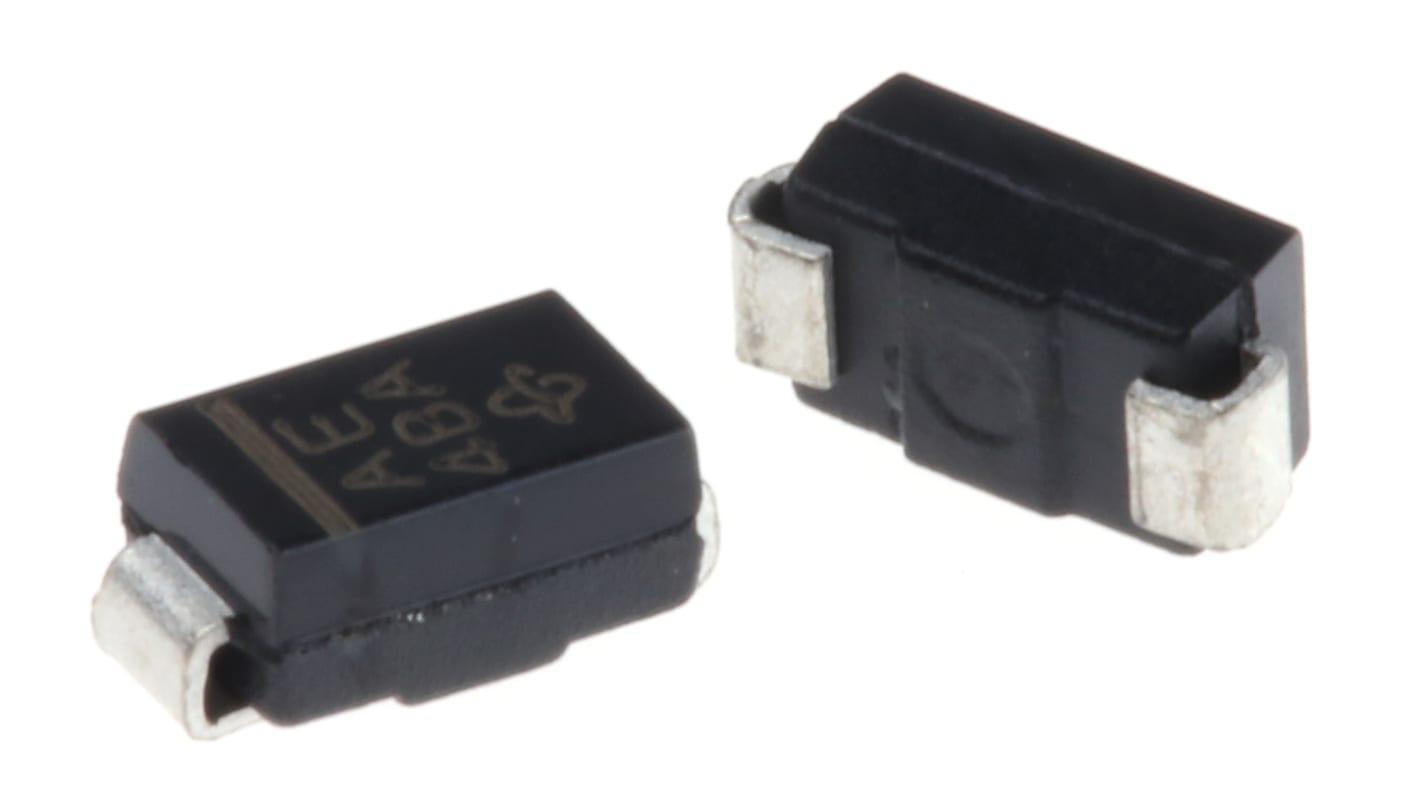

Vishay SMAJ5.0A-E3/5A, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

FREE delivery for orders over MYR500.00

TRANSZORB® Transient Voltage Suppressors SMT Unidirectional 400W, SMAJ Series, Vishay Semiconductor

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
