DiodesZetex D7V0M1U2S9-7 Uni-Directional TVS Diode, 90 W, 2-Pin SOD-923
- RS Stock No.:
- 246-7479
- Mfr. Part No.:
- D7V0M1U2S9-7
- Manufacturer:
- DiodesZetex

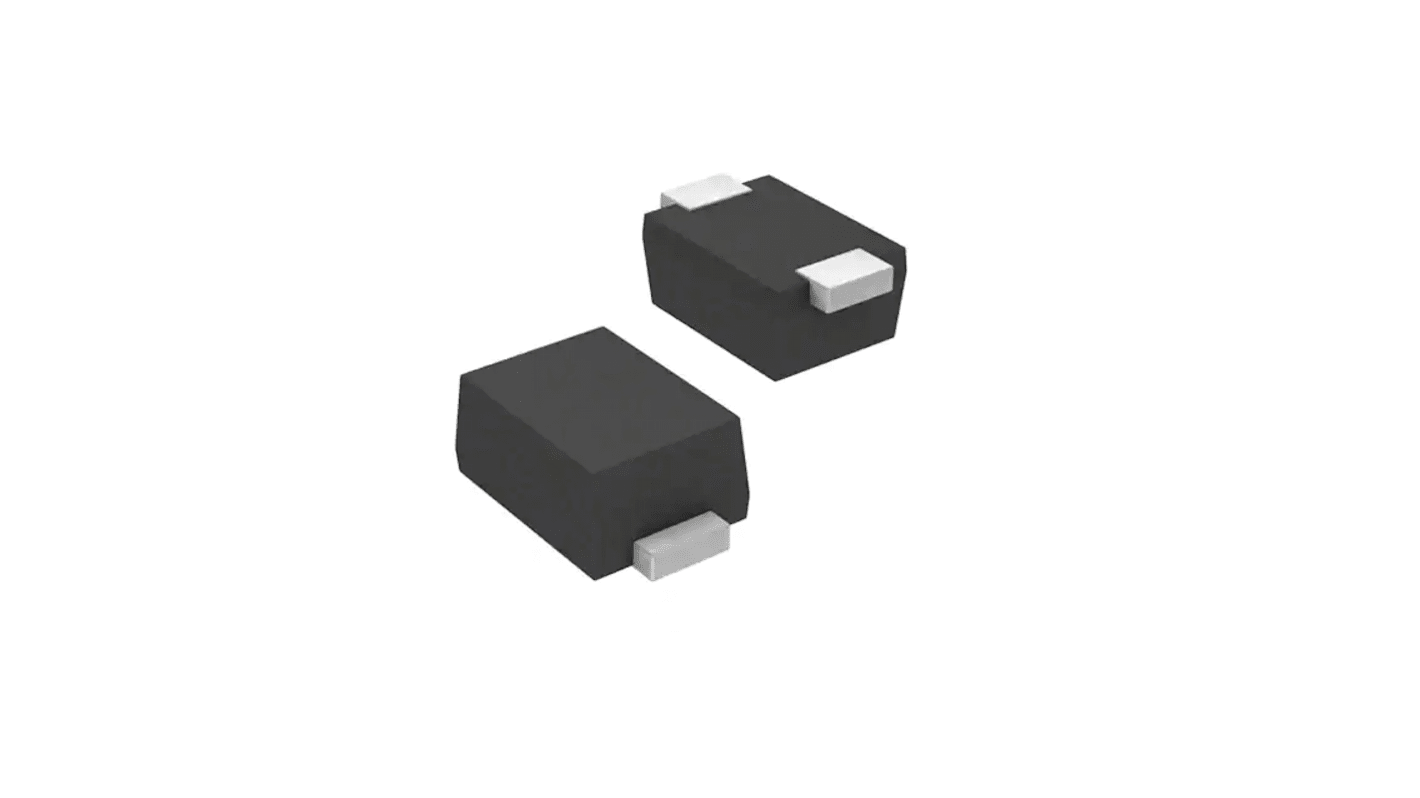

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 25 units)*
MYR11.70
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 9,825 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 - 475 | MYR0.468 | MYR11.70 |
| 500 - 975 | MYR0.452 | MYR11.30 |
| 1000 - 2475 | MYR0.437 | MYR10.93 |
| 2500 - 4975 | MYR0.422 | MYR10.55 |
| 5000 + | MYR0.408 | MYR10.20 |
*price indicative
- RS Stock No.:
- 246-7479
- Mfr. Part No.:
- D7V0M1U2S9-7
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | TVS Diode | |
| Direction Type | Uni-Directional | |
| Minimum Breakdown Voltage Vbr | 7.5V | |
| Mount Type | Surface | |
| Package Type | SOD-923 | |
| Maximum Reverse Stand-off Voltage Vwm | 7V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 90W | |
| Clamping Voltage VC | 13V | |
| Maximum Peak Pulse Current Ippm | 7A | |
| Minimum Operating Temperature | -55°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 150°C | |
| Length | 0.6mm | |
| Width | 0.8 mm | |
| Height | 0.37mm | |
| Standards/Approvals | EC 61000-4-2, ISO, RoHS, UL | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 1μA | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type TVS Diode | ||
Direction Type Uni-Directional | ||
Minimum Breakdown Voltage Vbr 7.5V | ||
Mount Type Surface | ||
Package Type SOD-923 | ||
Maximum Reverse Stand-off Voltage Vwm 7V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 90W | ||
Clamping Voltage VC 13V | ||
Maximum Peak Pulse Current Ippm 7A | ||
Minimum Operating Temperature -55°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 150°C | ||
Length 0.6mm | ||
Width 0.8 mm | ||
Height 0.37mm | ||
Standards/Approvals EC 61000-4-2, ISO, RoHS, UL | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 1μA | ||
The DiodesZetex makes a unidirectional, new generation TVS designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
Provides ESD protection for Air ±30kV, Contact ±30kV 1 Channel of ESD protection Low channel input capacitance
